Productnummer: 2979323

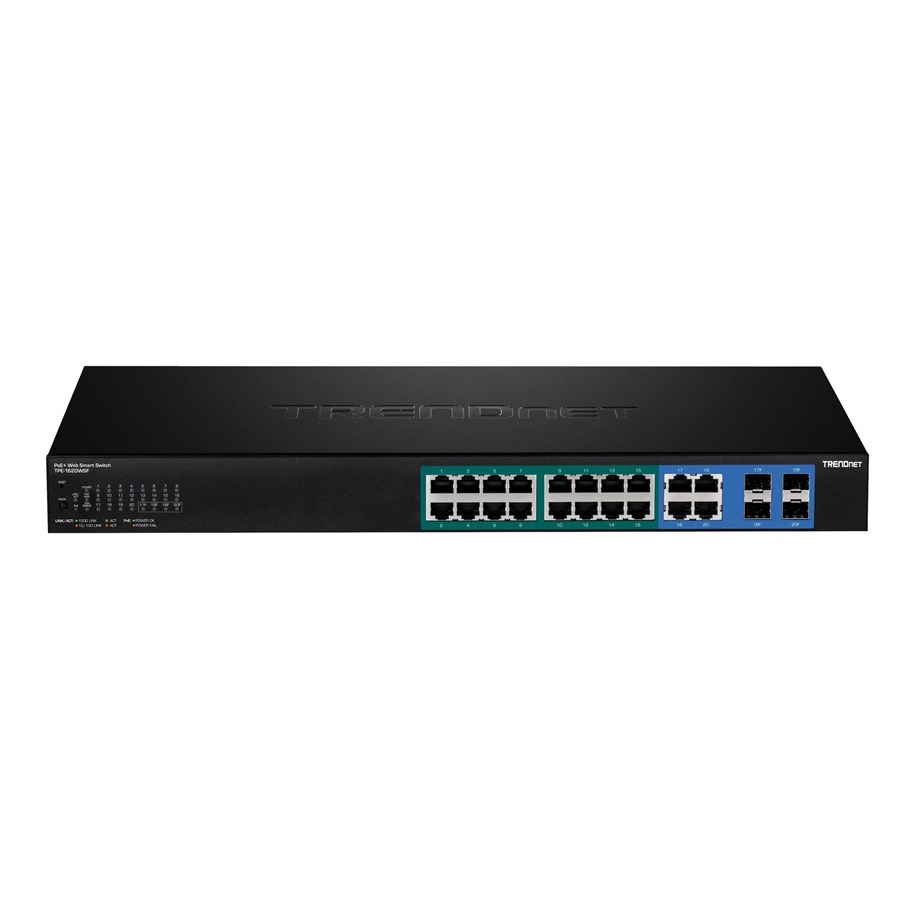

TRENDnet TPE 1620WSF

Switch, L2+, intelligent, 16 x 10/100/1000 (PoE+) + 4 x gedeelde Gigabit SFP, rack-uitvoering, PoE+ (370 W), TAA Compliant

383,62 € 317,04 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.

Producent
Productnummer
2979323
Model
TPE-1620WSF
EAN
0710931161571
Naar de website van de producent
Productbeschrijving
TRENDnet TPE 1620WSF - switch - 20 poorten - intelligent - rack-uitvoering - TAA Compliant
Type apparaat
Switch - 20 poorten - L2+ - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
16 x 10/100/1000 (PoE+) + 4 x gedeelde Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
370 W
Prestaties
Omschakelcapaciteit: 40 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 29.8 Mpps
Capaciteit
VLAN groepen: 256
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, statische IPv6-routing
Protocol voor beheer op afstand
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Voorzieningen
DHCP-ondersteuning, VLAN-ondersteuning, gespiegelde poorten, WRR-queing, MAC adresfiltering, IPv6-ondersteuning, GREENnet technologie, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, DHCP-spionage, ACL-ondersteuning, Jumbo Frames ondersteuning, reset-knop, beheer van bandbreedte, LLDP ondersteuning, LACP, MIB, 512KB pakketbuffer, GVRP, NAC, SPQ, NDP, CoS, gemerkte VLAN, Loopback, DoS, Duplicated Address Detection, Smart Fans
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
44 cm x 25 cm x 4.4 cm
Gewicht
3.89 kg
Conform TAA
Ja

Algemeen

Type apparaat
Switch - 20 poorten - L2+ - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
16 x 10/100/1000 (PoE+) + 4 x gedeelde Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
370 W
Prestaties
Omschakelcapaciteit: 40 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 29.8 Mpps
Capaciteit
VLAN groepen: 256
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, statische IPv6-routing
Protocol voor beheer op afstand
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Encryptie-algoritme
TLS, SSL 3.0, SSL 2.0
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
DHCP-ondersteuning, VLAN-ondersteuning, gespiegelde poorten, WRR-queing, MAC adresfiltering, IPv6-ondersteuning, GREENnet technologie, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, DHCP-spionage, ACL-ondersteuning, Jumbo Frames ondersteuning, reset-knop, beheer van bandbreedte, LLDP ondersteuning, LACP, MIB, 512KB pakketbuffer, GVRP, NAC, SPQ, NDP, CoS, gemerkte VLAN, Loopback, DoS, Duplicated Address Detection, Smart Fans
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Statuslampjes
Voeding, PoE, link/activiteit

Uitbreiding / Aansluiting

Interfaces
16 x 1000Base-T RJ-45 PoE+ - 30 W
4 x Gigabit LAN RJ-45/SFP

Stroom

Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
460 Watt

Diversen

Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
192,382 uur
Conformiteitsnormen
FCC, RoHS, WEEE
Conform TAA
Ja

Afmetingen & gewicht

Breedte
44 cm
Diepte
25 cm
Hoogte
4.4 cm
Gewicht
3.89 kg

Garantie van de fabrikant

Service & Support
Beperkte garantie - levenslang

Omgevingsparameters

Min. gebruikstemperatuur
-5 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% (niet condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
