Productnummer: 3316846

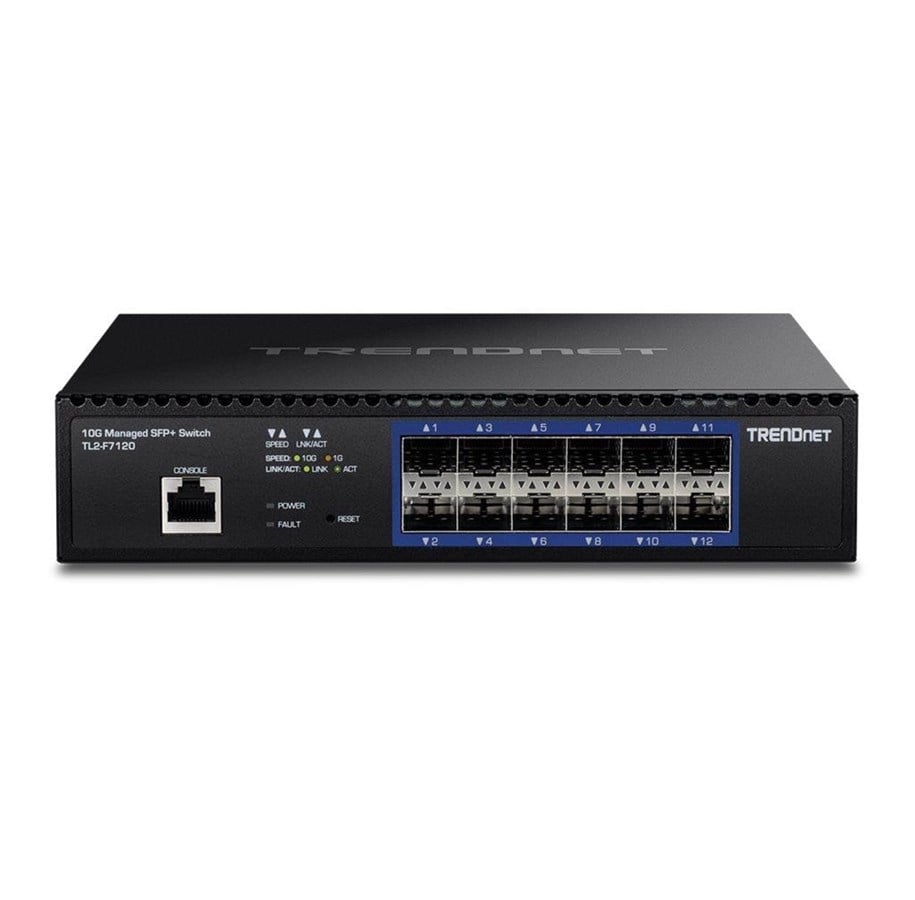

TRENDnet TL2-F7120 - switch - 12 ports - Managed - rack-mountable - TAA Compliant
Switch, Beheerd, 12 x 10 Gigabit SFP+, rack-uitvoering, TAA Compliant
313,33 €
258,95 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
TRENDnet's 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
Producent
Productnummer
3316846
Model
TL2-F7120
EAN
0710931140972
Naar de website van de producent
Productbeschrijving
TRENDnet TL2-F7120 - switch - 12 poorten - Beheerd - rack-uitvoering - TAA Compliant
Type apparaat
Switch - 12 poorten - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
10 Gigabit Ethernet
Poorten
12 x 10 Gigabit SFP+
Prestaties
Omschakelcapaciteit: 240 Gbps
Gegevensoverdrachtssnelheid: 20 Gbps
Buffergeheugen: 2 MB
Doorstuursnelheid: 178,6 Mpps
Gegevensoverdrachtssnelheid: 20 Gbps
Buffergeheugen: 2 MB
Doorstuursnelheid: 178,6 Mpps
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMP, IGMPv2, IGMPv3, MSTP, RSTP
Protocol voor beheer op afstand
SNMP 1, SNMP 3, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9
Voorzieningen
Layer 2-omschakeling, beheer via het web, CLI-beheer, IGMP-spionage, IPv6-ondersteuning, LACP, VLAN-ondersteuning, IPv4-ondersteuning, QoS, Smart Fan, ondersteunt DNS, LLDP ondersteuning, ARP-ondersteuning, ondersteunt ICMPv4/ICMPv6, op MAC-gebaseerde toegangscontrole (MAC), SNTP-ondersteuning, systeemlogboek, VCT-technologie, Rapid Convergence Spanning Tree Protocol, beheer van bandbreedte, CoS, MSTP-ondersteuning, ondersteunt wachtrij-programmering, Static Link Aggregation, DoS, MLD spionage
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
23 cm x 21 cm x 4.4 cm
Gewicht
1.6 kg
Conform TAA
Ja
Algemeen
Type apparaat
Switch - 12 poorten - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
10 Gigabit Ethernet
Poorten
12 x 10 Gigabit SFP+
Prestaties
Omschakelcapaciteit: 240 Gbps
Gegevensoverdrachtssnelheid: 20 Gbps
Buffergeheugen: 2 MB
Doorstuursnelheid: 178,6 Mpps
Gegevensoverdrachtssnelheid: 20 Gbps
Buffergeheugen: 2 MB
Doorstuursnelheid: 178,6 Mpps
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMP, IGMPv2, IGMPv3, MSTP, RSTP
Protocol voor beheer op afstand
SNMP 1, SNMP 3, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9
Voorzieningen
Layer 2-omschakeling, beheer via het web, CLI-beheer, IGMP-spionage, IPv6-ondersteuning, LACP, VLAN-ondersteuning, IPv4-ondersteuning, QoS, Smart Fan, ondersteunt DNS, LLDP ondersteuning, ARP-ondersteuning, ondersteunt ICMPv4/ICMPv6, op MAC-gebaseerde toegangscontrole (MAC), SNTP-ondersteuning, systeemlogboek, VCT-technologie, Rapid Convergence Spanning Tree Protocol, beheer van bandbreedte, CoS, MSTP-ondersteuning, ondersteunt wachtrij-programmering, Static Link Aggregation, DoS, MLD spionage
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Ingebouwde apparaten
LED-paneel
Uitbreiding / Aansluiting
Interfaces
12 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+
1 x beheer RJ-45 console
1 x beheer RJ-45 console
Stroom
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik tijdens gebruik
20 Watt
Diversen
Kabels meegeleverd
1 x kabel RJ-45 naar RS-232
Rackmontagekit
Inclusief
Conformiteitsnormen
NDAA, FCC, UL
Conform TAA
Ja
Afmetingen & gewicht
Breedte
23 cm
Diepte
21 cm
Hoogte
4.4 cm
Gewicht
1.6 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
Maximaal 90% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
