Productnummer: 3035851

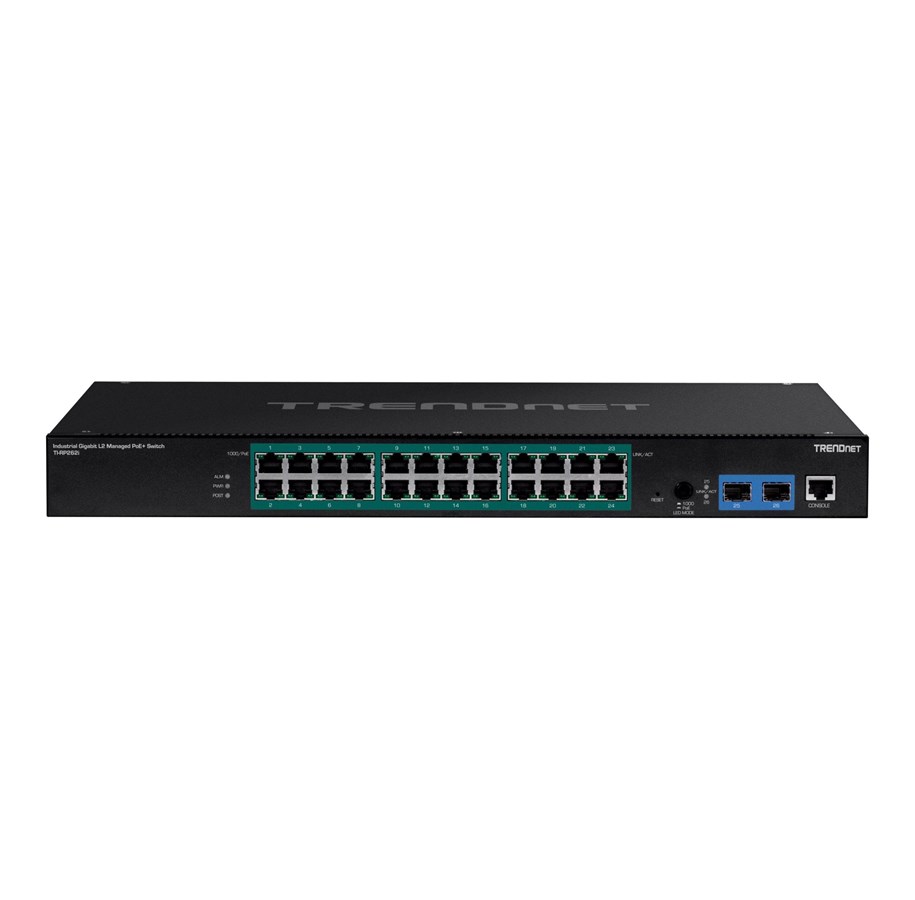

TRENDnet TI-RP262I - Industrial - Schakelaar - 26 ports - Managed - Rek-monteerbaar

Industrial, switch, Beheerd, 24 x 10/100/1000 (PoE+) + 2 x SFP, rack-uitvoering, PoE+, TAA Compliant

1.086,63 € 898,04 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

TRENDnet's Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 70°C (-40° - 158°F) for industrial environments. Theseindustrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP slots that support 100/1000Base-FX SFP modules for long distance fiber networking applications. These industrial layer 2 rackmount switches feature a fanless design that eliminates operating noise and lowers energy consumption. These Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, SNMP monitoring, and more, making each TRENDnet industrial layer 2 rackmounts switch a powerful solution for SMB networks.

Producent
Productnummer
3035851
Model
TI-RP262I
EAN
0710931161700
Naar de website van de producent
Switch type
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
System event log
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF
2
Console port
RJ-45
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Port mirroring
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Tagged VLAN
Aantal VLANs
4094
MAC-adrestabel
8000 entries
Switchingcapaciteit
52 Gbit/s
Verzending snelheid
38,7 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
0,5 MB
DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SNMPv2, SNMPv3, SSH-2
BPDU filtering / bescherming
Ja
Algoritmen wachtrijplanning
SP, WFQ, Weighted Round Robin (WRR)
Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
256
Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Fanloos
Ja
Mean time between failures (MTBF)
475352 uur
Vermogensverbruik (max)
705 W
Stroomspanning bescherming
Overstroom, Kortsluiting
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Stroom via Ethernet (PoE)
48 V
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
685 W
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Breedte
440 mm
Diepte
310 mm
Hoogte
44 mm
Gewicht
3,58 kg
Snelstartgids
Ja
Rekbevestigingspakket
Ja
Certificering
CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Code geharmoniseerd systeem (HS)
85176990

Beheerfuncties

Switch type
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF
2
Console port
RJ-45

Netwerk

Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Port mirroring
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Tagged VLAN
Aantal VLANs
4094

Data-uitwisseling

MAC-adrestabel
8000 entries
Switchingcapaciteit
52 Gbit/s
Verzending snelheid
38,7 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
0,5 MB

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SNMPv2, SNMPv3, SSH-2
BPDU filtering / bescherming
Ja
Algoritmen wachtrijplanning
SP, WFQ, Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
256

Design

Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30

Prestatie

Fanloos
Ja
Mean time between failures (MTBF)
475352 uur

Energie

Vermogensverbruik (max)
705 W
Stroomspanning bescherming
Overstroom, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Stroom via Ethernet (PoE)
48 V
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
685 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
310 mm
Hoogte
44 mm
Gewicht
3,58 kg

Inhoud van de verpakking

Snelstartgids
Ja
Rekbevestigingspakket
Ja

Certificaten

Certificering
CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
