Productnummer: 2829011

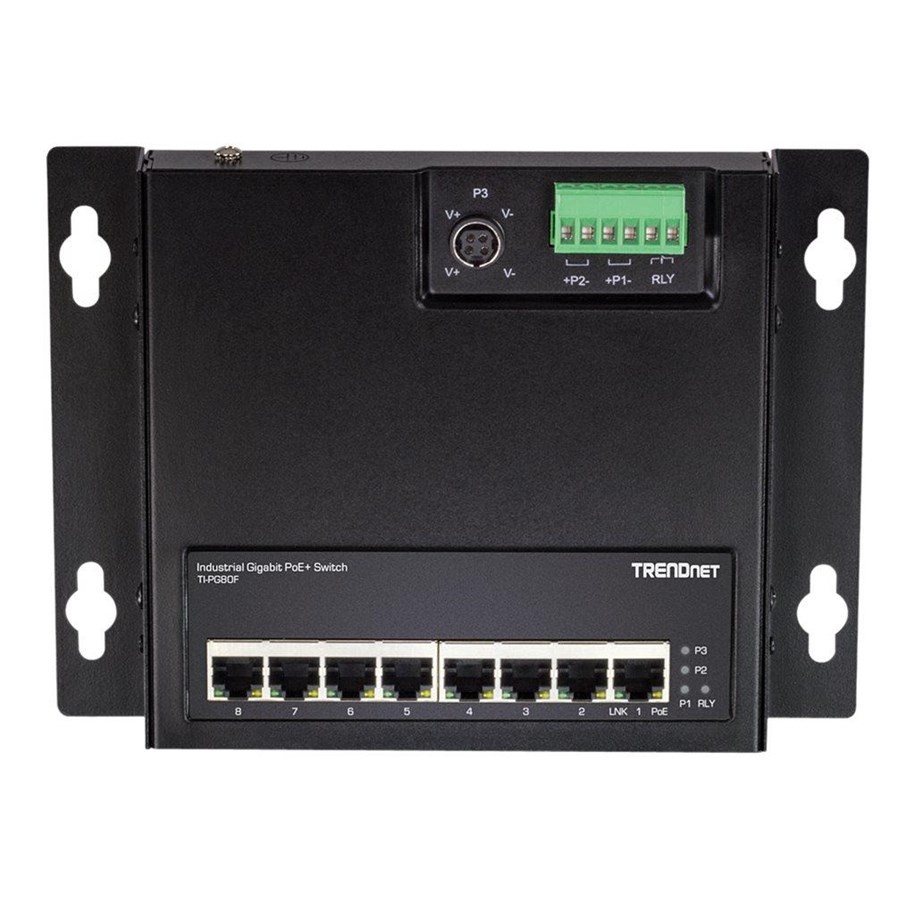

TRENDnet TI-PG80F - Industrial - Schakelaar - 8 ports - unmanaged
Industrial, switch, onbeheerd, 8 x 10/100/1000 (PoE+), monteerbaar op DIN-rails, wandbevestiging, PoE+ (200 W), TAA Compliant
216,26 €
178,73 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.
Producent
Productnummer
2829011
Model
TI-PG80F
EAN
0710931161496
Naar de website van de producent
Switch type
Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
MAC-adrestabel
4096 entries
Switchingcapaciteit
16 Gbit/s
Verzending snelheid
11,9 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Rack-montage
Nee
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Mean time between failures (MTBF)
500000 uur
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
48 - 56 V
Vermogensverbruik (max)
5,76 W
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
200 W
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Breedte
150 mm
Diepte
145 mm
Hoogte
26,7 mm
Gewicht
635 g
Certificering
CE, FCC, UL
Code geharmoniseerd systeem (HS)
85176990
Beheerfuncties
Switch type
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Data-uitwisseling
MAC-adrestabel
4096 entries
Switchingcapaciteit
16 Gbit/s
Verzending snelheid
11,9 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Design
Rack-montage
Nee
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Prestatie
Mean time between failures (MTBF)
500000 uur
Energie
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
48 - 56 V
Vermogensverbruik (max)
5,76 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
200 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Gewicht en omvang
Breedte
150 mm
Diepte
145 mm
Hoogte
26,7 mm
Gewicht
635 g
Certificaten
Certificering
CE, FCC, UL
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
