Productnummer: 3427004

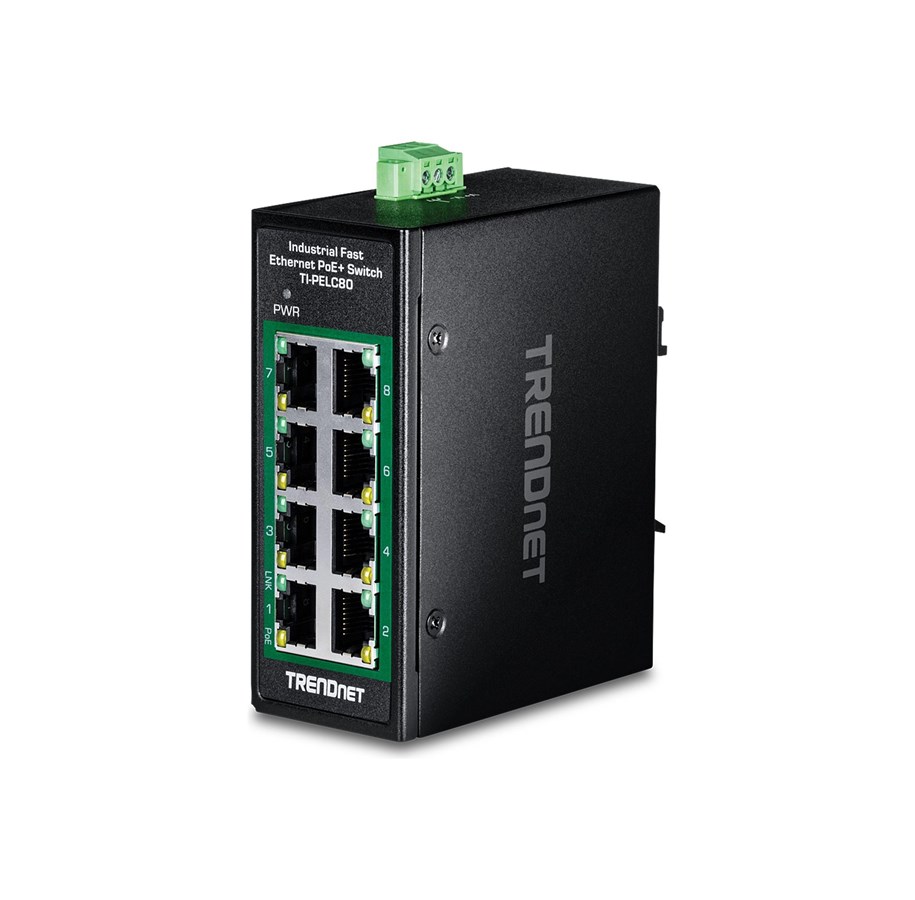

TRENDnet TI-PELC80 - Version V1.xR - switch - industrial mini - 8 ports - TAA Compliant
Version V1.xR, switch, industrial, mini, 8 x 10/100 (PoE+), monteerbaar op DIN-rails, wandbevestiging, PoE+ (200 W), TAA Compliant
98,28 €
81,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The TRENDnet TI-PELC80 is a rugged and compact industrial switch designed to provide reliable performance in harsh environments. With a switching capacity of up to 1.6 Gbps and support for forwarding performance of 1.19 Mpps, this device is equipped to handle demanding networking tasks efficiently. Its 8 ports offer 10/100 Base-TX (PoE+) connectivity, ensuring that various network devices can be powered over the same cable, reducing clutter and installation complexity.This switch operates in an extensive temperature range from -40°C to 75°C, and it features a humidity tolerance of 0 - 95% (non-condensing), making it suitable for both indoor and outdoor applications. The metal housing provides durability and protection against different environmental factors, while the 6 kV ESD protection ensures the device is safeguarded from electrical surges. With automatic address learning and aging capabilities, the TI-PELC80 optimizes network performance and reliability.
Producent
Productnummer
3427004
Model
TI-PELC80
EAN
0710931162967
Naar de website van de producent
Productbeschrijving
TRENDnet TI-PELC80 - Version V1.xR - switch - industrial, mini - 8 poorten - TAA Compliant
Type apparaat
Switch - 8 poorten
Subtype
Fast Ethernet
Poorten
8 x 10/100 (PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
200 W
Prestaties
Omschakelcapaciteit: 1,6 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 1,19 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 1,19 Mpps
Capaciteit
RAM-buffer: 1 MB
MAC-adrestabelgrootte
1K invoergegevens
Voorzieningen
Gehard, metalen behuizing, led-statusindicators, half duplex modus, volledige duplex modus, automatische onderhandeling, opslaan en verder, 6KV ESD Protector, verstevigd, trillingsbestendig, schokbestendig, PoE pin indeling, mini size, aardingspunten, automatisch adresleren, automatische adresveroudering
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Stroom
DC 48 - 56 V
Afmetingen (BxDxH)
3.9 cm x 10 cm x 8.05 cm
Gewicht
340 g
Conform TAA
Ja
Algemeen
Type apparaat
Switch - 8 poorten
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Fast Ethernet
Poorten
8 x 10/100 (PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
200 W
Prestaties
Omschakelcapaciteit: 1,6 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 1,19 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 1,19 Mpps
Capaciteit
RAM-buffer: 1 MB
MAC-adrestabelgrootte
1K invoergegevens
Voorzieningen
Gehard, metalen behuizing, led-statusindicators, half duplex modus, volledige duplex modus, automatische onderhandeling, opslaan en verder, 6KV ESD Protector, verstevigd, trillingsbestendig, schokbestendig, PoE pin indeling, mini size, aardingspunten, automatisch adresleren, automatische adresveroudering
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Statuslampjes
Link/activiteit, PoE, voeding
Uitbreiding / Aansluiting
Interfaces
8 x 10/100 Base-TX (PoE+) RJ-45
Stroom
Voeding
Externe stroomadapter (niet inbegrepen)
Vereiste netspanning
DC 48 - 56 V
Diversen
Meegeleverde accessoires
DIN-rail bevestigingskit, wandbevestigingsset, verwijderbaar klemmenblok
MTBF (gemiddelde tijd tussen twee storingen)
560,321 uur
Conformiteitsnormen
NDAA, IP30, FCC, IEC 60068-2-27, EN 60068-2-31, EN 60068-2-6, IEC 61000-4-2, IEC 61000-4-4
Conform TAA
Ja
Afmetingen & gewicht
Breedte
3.9 cm
Diepte
10 cm
Hoogte
8.05 cm
Gewicht
340 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
