Productnummer: 3035847

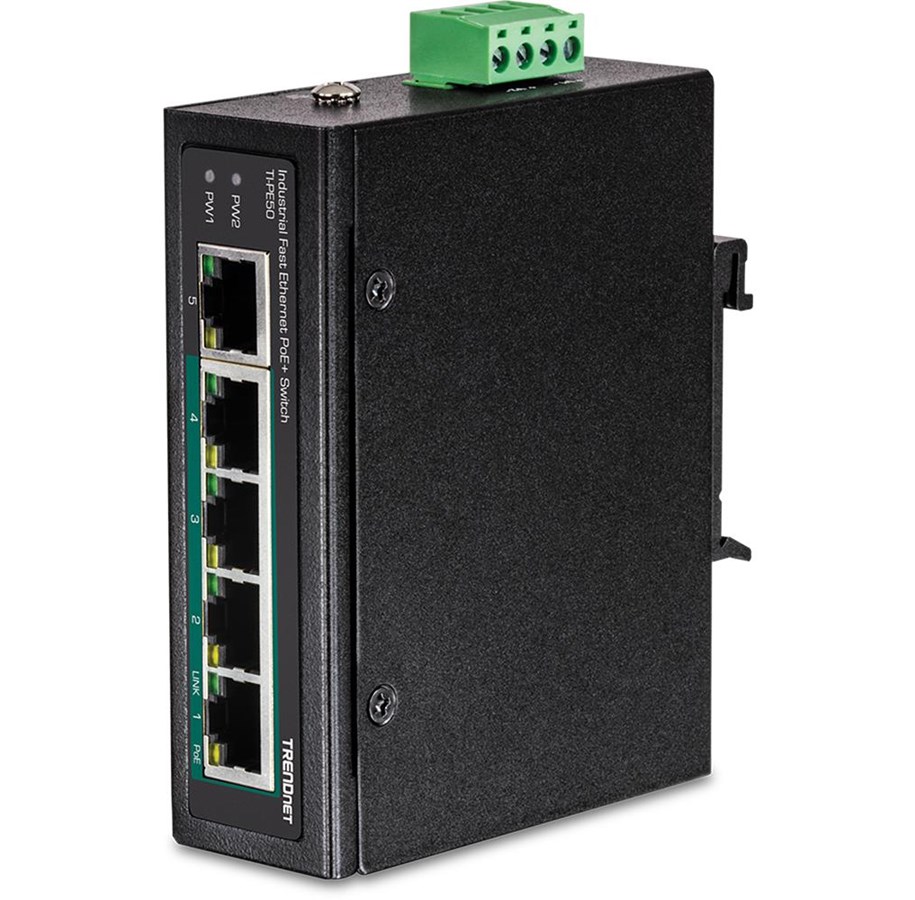

TRENDnet TI-PE50 - Schakelaar - 5 ports - unmanaged

Switch, onbeheerd, 4 x 10/100 (PoE+) + 1 x 10/100, monteerbaar op DIN-rails, wandbevestiging, PoE+ (90 W), Gelijkstroom, TAA Compliant

90,37 € 74,69 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

TRENDnet's Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75°C (-40° - 167°F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Producent
Productnummer
3035847
Model
TI-PE50
EAN
0710931161601
Naar de website van de producent
Switch type
Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten
5
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
5
Netwerkstandaard
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
MAC-adrestabel
1024 entries
Switchingcapaciteit
1 Gbit/s
Verzending snelheid
0,1488 Mpps
Store-and-forward
Ja
Rack-montage
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Mean time between failures (MTBF)
708903 uur
Redundante voeding
Ja
DC voltage input
48 - 56 V
Vermogensverbruik (max)
2,24 W
Stroomspanning bescherming
Overbelasting
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Totaal Power over Ethernet (PoE)-budget
90 W
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Breedte
103 mm
Diepte
82 mm
Hoogte
31 mm
Gewicht
160 g
Snelstartgids
Ja
Certificering
CE, FCC
Code geharmoniseerd systeem (HS)
85176990

Beheerfuncties

Switch type
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
5
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
5

Netwerk

Netwerkstandaard
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

MAC-adrestabel
1024 entries
Switchingcapaciteit
1 Gbit/s
Verzending snelheid
0,1488 Mpps
Store-and-forward
Ja

Design

Rack-montage
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja

Prestatie

Mean time between failures (MTBF)
708903 uur

Energie

Redundante voeding
Ja
DC voltage input
48 - 56 V
Vermogensverbruik (max)
2,24 W
Stroomspanning bescherming
Overbelasting

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Totaal Power over Ethernet (PoE)-budget
90 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
103 mm
Diepte
82 mm
Hoogte
31 mm
Gewicht
160 g

Inhoud van de verpakking

Snelstartgids
Ja

Certificaten

Certificering
CE, FCC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
