Productnummer: 2829053

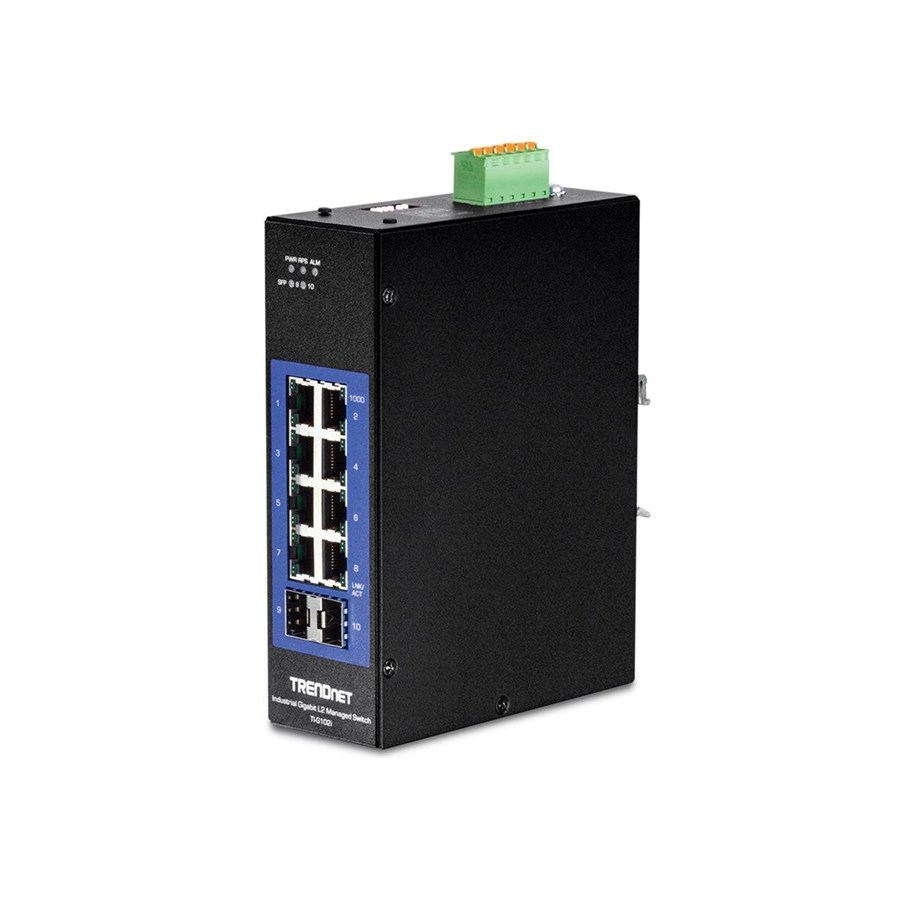

TRENDnet TI-G102i - Schakelaar - 10 ports - unmanaged

Industrial, switch, Beheerd, 8 x 10/100/1000 + 2 x Gigabit SFP, monteerbaar op DIN-rails, Gelijkstroom, TAA Compliant

298,39 € 246,60 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

TRENDnet's Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. The industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications. These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

Producent
Productnummer
2829053
Model
TI-G102I
EAN
0710931161557
Naar de website van de producent
Switch type
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adrestabel
8192 entries
Switchingcapaciteit
20 Gbit/s
Verzending snelheid
14,88 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10240
DHCP-functies
DHCP relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Gast-VLAN
Authenticatie type
RADIUS
Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
256
Beheerprotocollen
SNMP v1, v2c, v3
Rack-montage
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
DIN rail bevestiging
Ja
Upgraden van firmware mogelijk
Ja
Mean time between failures (MTBF)
617085 uur
Redundante voeding
Ja
Vermogensverbruik (max)
13 W
Power over Ethernet (PoE)
Nee
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Breedte
160 mm
Diepte
120 mm
Hoogte
50 mm
Gewicht
884 g
Snelstartgids
Ja
Certificering
CE, FCC
Code geharmoniseerd systeem (HS)
85176990

Beheerfuncties

Switch type
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja

Data-uitwisseling

MAC-adrestabel
8192 entries
Switchingcapaciteit
20 Gbit/s
Verzending snelheid
14,88 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10240

Beveiliging

DHCP-functies
DHCP relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Gast-VLAN
Authenticatie type
RADIUS

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
256

Protocollen

Beheerprotocollen
SNMP v1, v2c, v3

Design

Rack-montage
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
DIN rail bevestiging
Ja

Prestatie

Upgraden van firmware mogelijk
Ja
Mean time between failures (MTBF)
617085 uur

Energie

Redundante voeding
Ja
Vermogensverbruik (max)
13 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
160 mm
Diepte
120 mm
Hoogte
50 mm
Gewicht
884 g

Inhoud van de verpakking

Snelstartgids
Ja

Certificaten

Certificering
CE, FCC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
