Productnummer: 3241303

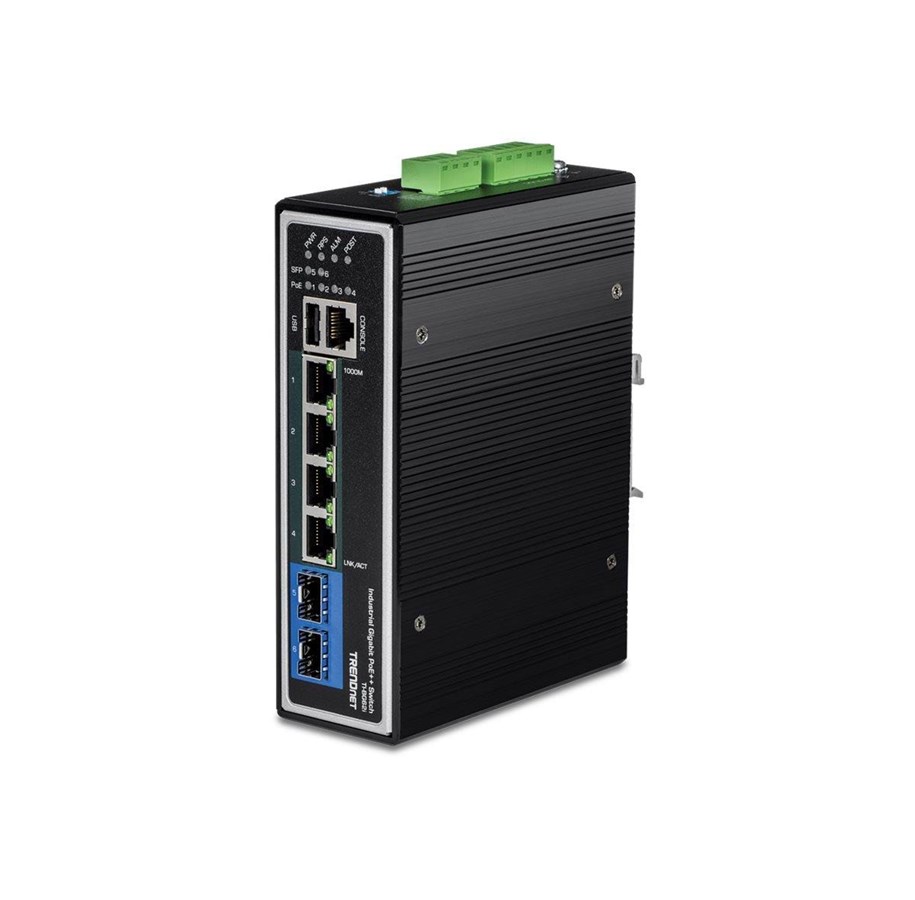

TRENDnet TI-BG62i - switch - industrial - 6 ports - Managed - TAA Compliant

Switch, industrieel, L2+, Beheerd, 4 x 10/100/1000 (PoE++) + 2 x Gigabit SFP, monteerbaar op DIN-rails, PoE++ (360 W), TAA Compliant

715,97 € 591,71 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. Industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications. These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks. This industrial 802.3bt PoE++ switch has four Gigabit PoE++ ports with a 360W PoE power budget, plus two SFP slots for long distance fiber applications. Advanced PoE technology supported includes Perpetual PoE, Fast PoE, and PoE Alive Check.

Producent
Productnummer
3241303
Model
TI-BG62i
EAN
0710931162318
Naar de website van de producent
Switch type
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
4
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
2
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
4
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Port mirroring
Ja
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Stacked VLAN, Tagged VLAN
Aantal VLANs
4094
MAC-adrestabel
16000 entries
Switchingcapaciteit
12 Gbit/s
Verzending snelheid
8,9 Mpps
Store-and-forward
Ja
Aantal IP-interfaces
16
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
0,512 MB
DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SSH
Authenticatie
Gast-VLAN, Poortgebaseerde authenticatie
Authenticatie type
IEEE 802.1x, RADIUS
Algoritmen wachtrijplanning
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Multicast-ondersteuning
Ja
Beheerprotocollen
SNMP v1 / 2c / 3
Rack-montage
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Stroombron
DC/PoE
Vermogenstoevoer inclusief
Ja
Vermogensverbruik (max)
380 W
Stroomspanning bescherming
Overstroom, Kortsluiting
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet 4PPoE (PoE++)-poorten
4
Totaal Power over Ethernet (PoE)-budget
360 W
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Breedte
50 mm
Diepte
118 mm
Hoogte
170 mm
Gewicht
956 g
Snelstartgids
Ja
Certificering
FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Beheerfuncties

Switch type
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
4
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
2
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
4

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Port mirroring
Ja
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Stacked VLAN, Tagged VLAN
Aantal VLANs
4094

Data-uitwisseling

MAC-adrestabel
16000 entries
Switchingcapaciteit
12 Gbit/s
Verzending snelheid
8,9 Mpps
Store-and-forward
Ja
Aantal IP-interfaces
16
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
0,512 MB

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SSH
Authenticatie
Gast-VLAN, Poortgebaseerde authenticatie
Authenticatie type
IEEE 802.1x, RADIUS
Algoritmen wachtrijplanning
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMP v1 / 2c / 3

Design

Rack-montage
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30

Energie

Stroombron
DC/PoE
Vermogenstoevoer inclusief
Ja
Vermogensverbruik (max)
380 W
Stroomspanning bescherming
Overstroom, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet 4PPoE (PoE++)-poorten
4
Totaal Power over Ethernet (PoE)-budget
360 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
50 mm
Diepte
118 mm
Hoogte
170 mm
Gewicht
956 g

Inhoud van de verpakking

Snelstartgids
Ja

Certificaten

Certificering
FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
