Productnummer: 3206867

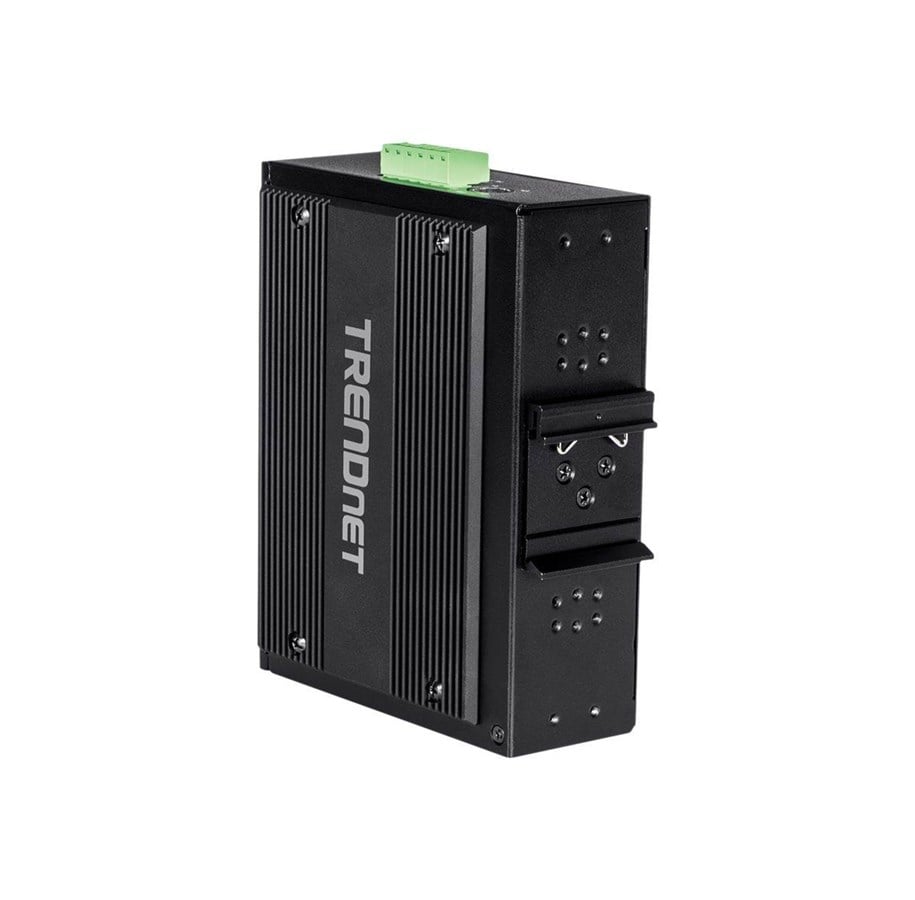

TRENDnet TI-BG104 - switch - industrial - 10 ports - unmanaged - TAA Compliant
Switch, industrieel, onbeheerd, 4 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) + 2 x combinatie Gigabit SFP/RJ-45, monteerbaar op DIN-rails, wandbevestiging, PoE++ (360 W), AC 120/230 V / DC 48, 56 V, TAA Compliant
408,04 €
337,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches deliver network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75°C (-40° - 167°F). These hardened industrial PoE++ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches by delivering up to 90 W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE++ switches, users only need one set of cables to deliver both data and power. Easily network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.
Producent
Productnummer
3206867
Model
TI-BG104
EAN
0710931162295
Naar de website van de producent
Productbeschrijving
TRENDnet TI-BG104 - switch - industrieel - 10 poorten - onbeheerd - TAA Compliant
Type apparaat
Switch - 10 poorten - onbeheerd
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) + 2 x combinatie Gigabit SFP/RJ-45
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
360 W
Prestaties
Omschakelcapaciteit: 20 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 8,9 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 8,9 Mpps
MAC-adrestabelgrootte
11K invoergegevens
Jumbo Frame-ondersteuning
10KB
Voorzieningen
Automatische onderhandeling, opslaan en verder, half duplex modus, volledige duplex modus, 2MB pakketbuffer, ingebouwde DIP-schakeling, 8KV ESD Protector, metalen behuizing
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
Stroom
AC 100-240/ DC 48-56 V (50/60 Hz) - stroomadapter niet inbegrepen
Stroomredundantie
Ja
Afmetingen (BxDxH)
4.8 cm x 12.2 cm x 15.6 cm
Gewicht
630 g
Conform TAA
Ja
Algemeen
Type apparaat
Switch - 10 poorten - onbeheerd
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) + 2 x combinatie Gigabit SFP/RJ-45
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
360 W
Prestaties
Omschakelcapaciteit: 20 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 8,9 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 8,9 Mpps
MAC-adrestabelgrootte
11K invoergegevens
Jumbo Frame-ondersteuning
10KB
Voorzieningen
Automatische onderhandeling, opslaan en verder, half duplex modus, volledige duplex modus, 2MB pakketbuffer, ingebouwde DIP-schakeling, 8KV ESD Protector, metalen behuizing
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
Uitbreiding / Aansluiting
Interfaces
4 x 10/100/1000 Base-T (PoE++) RJ-45 90 W
4 x 10/100/1000 Base-T (PoE+) RJ-45 30 W
2 x Gigabit LAN SFP
1 x alarmuitgang
2 x Gigabit LAN RJ-45
4 x 10/100/1000 Base-T (PoE+) RJ-45 30 W
2 x Gigabit LAN SFP
1 x alarmuitgang
2 x Gigabit LAN RJ-45
Stroom
Voeding
Externe stroomadapter (niet inbegrepen)
Max. aantal ondersteund
2
Stroomredundantie
Ja
Vereiste netspanning
AC 100-240/ DC 48-56 V (50/60 Hz)
Diversen
Meegeleverde accessoires
DIN-rail bevestigingskit, wandbevestigingsset, verwijderbaar klemmenblok
MTBF (gemiddelde tijd tussen twee storingen)
510,304 uur
Conformiteitsnormen
UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, IEC 60068-2-27, IP30, EN 60068-2-32, EN 60068-2-6
Conform TAA
Ja
Afmetingen & gewicht
Breedte
4.8 cm
Diepte
12.2 cm
Hoogte
15.6 cm
Gewicht
630 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
