Productnummer: 3308865

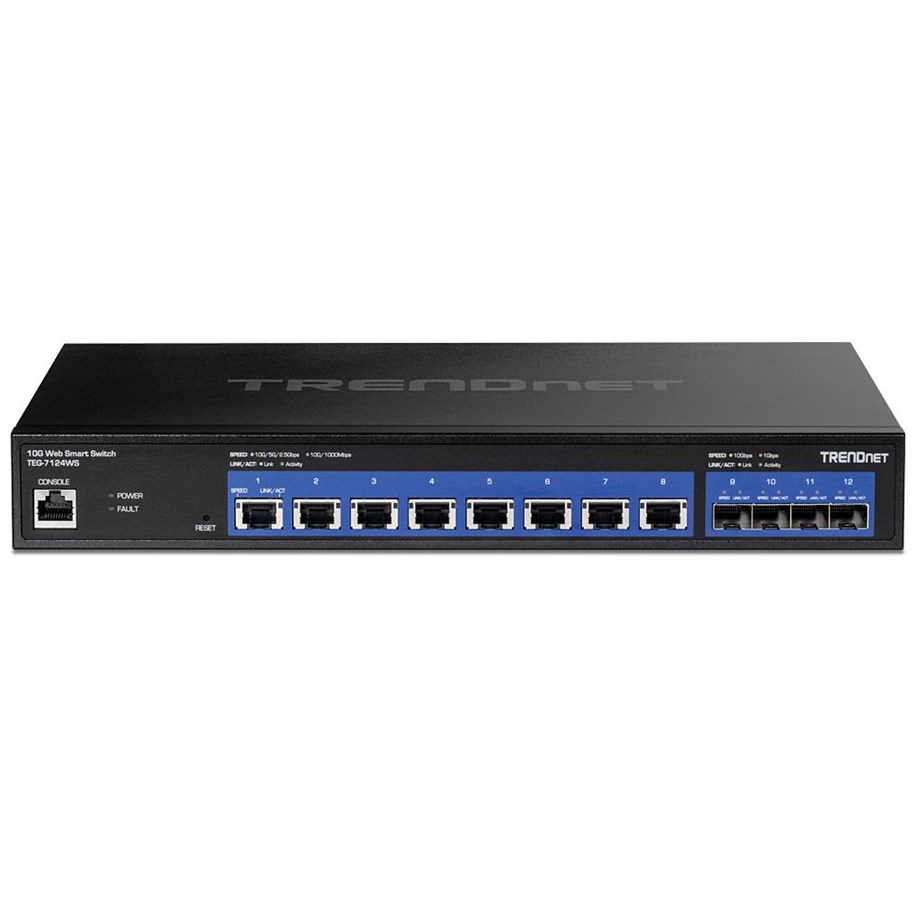

TRENDnet TEG-7124WS 12-Port 10G Web Smart Switch
Switch, intelligent, 8 x 10GBase-T + 4 x 10 Gigabit SFP+, rack-uitvoering, TAA Compliant
481,17 €
397,66 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
TRENDnet's 10G Web Smart Switch, model TEG-7124WS offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's 10G web smart managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ slots for high-speed network uplinks or downlink NAS/access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
Producent
Productnummer
3308865
Model
TEG-7124WS
EAN
0710931140897
Naar de website van de producent
Productbeschrijving
TRENDnet TEG 7124WS - switch - 12 poorten - intelligent - rack-uitvoering - TAA Compliant
Type apparaat
Switch - 12 poorten - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
10 Gigabit Ethernet
Poorten
8 x 10GBase-T + 4 x 10 Gigabit SFP+
Prestaties
Omschakelcapaciteit: 240 Gbps
Doorvoersnelheid (64 byte-pakketten): 178,56 Mpps
Doorvoersnelheid (64 byte-pakketten): 178,56 Mpps
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protocol voor beheer op afstand
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
Voorzieningen
VLAN-ondersteuning, IGMP-spionage, gespiegelde poorten, IPv6-ondersteuning, half duplex modus, volledige duplex modus, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, QoS, MLD spionage, LACP ondersteuning, GVRP, statische routing, CoS, SP, gemerkte VLAN, DoS, metalen behuizing, bandbreedtecontrole per poort, ondersteuning DSCP, Static Link Aggregation, 1 ventilator, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, lusdetectie, blokkering onbekende multicast, ondersteunt wachtrij-programmering
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
32.5 cm x 23 cm x 4.4 cm
Gewicht
1.96 kg
Conform TAA
Ja
Algemeen
Type apparaat
Switch - 12 poorten - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
10 Gigabit Ethernet
Poorten
8 x 10GBase-T + 4 x 10 Gigabit SFP+
Prestaties
Omschakelcapaciteit: 240 Gbps
Doorvoersnelheid (64 byte-pakketten): 178,56 Mpps
Doorvoersnelheid (64 byte-pakketten): 178,56 Mpps
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protocol voor beheer op afstand
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
Encryptie-algoritme
TLS, SSL 3.0, SSL 2.0
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
VLAN-ondersteuning, IGMP-spionage, gespiegelde poorten, IPv6-ondersteuning, half duplex modus, volledige duplex modus, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, QoS, MLD spionage, LACP ondersteuning, GVRP, statische routing, CoS, SP, gemerkte VLAN, DoS, metalen behuizing, bandbreedtecontrole per poort, ondersteuning DSCP, Static Link Aggregation, 1 ventilator, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, lusdetectie, blokkering onbekende multicast, ondersteunt wachtrij-programmering
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
Statuslampjes
Voeding, koppeling/activiteit/snelheid, fout
Uitbreiding / Aansluiting
Interfaces
8 x 10Gbit LAN RJ-45
4 x 10Gbit LAN SFP+
1 x console RJ-45
4 x 10Gbit LAN SFP+
1 x console RJ-45
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik tijdens gebruik
152.3 Watt
Diversen
MTBF (gemiddelde tijd tussen twee storingen)
590,929 uur
Conformiteitsnormen
UL, FCC, NDAA
Conform TAA
Ja
Afmetingen & gewicht
Breedte
32.5 cm
Diepte
23 cm
Hoogte
4.4 cm
Gewicht
1.96 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
90% (niet-condenserend)
