Productnummer: 3203236

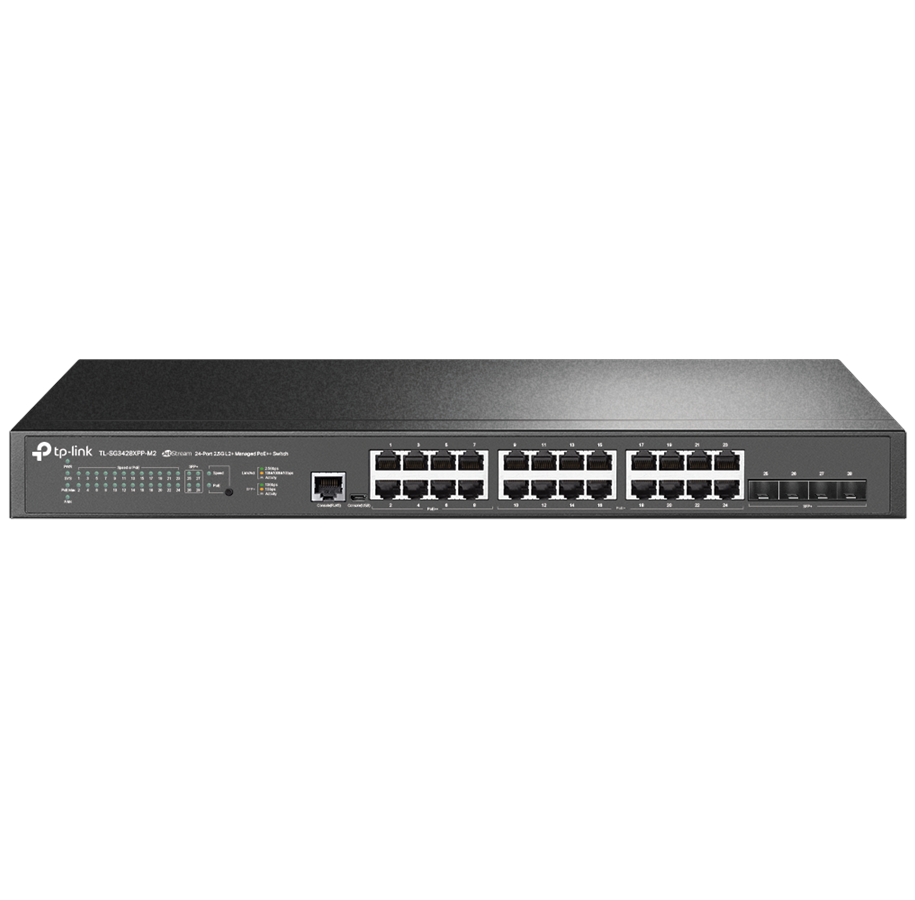

TP-Link TL-SG3428XPP-M2 JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Switch, L2+, Beheerd, 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+, rack-uitvoering, PoE++ (500 W)

842,90 € 696,61 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 7 - 8 werkdagen levertijd

Producent
Productnummer
3203236
Model
TL-SG3428XPP-M2
EAN
4897098689738
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
TP-Link JetStream TL-SG3428XPP-M2 V1 - switch - 24 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 24 poorten - L2+ - Beheerd
Type bijvoegsel
Rack-uitvoering
Subtype
2.5 Gigabit Ethernet
Poorten
16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
500 W
Prestaties
Omschakelcapaciteit: 200 Gbps
Pakketdoorstuursnelheid: 148,80 Mpps
Capaciteit
IP interfaces: 32
Pakketbuffergrootte: 16 MB
Statische routes: 48
IGMP-groepen: 511
Voorkeurswachtrijen: 8
Maximaal aantal aggregatiegroepen: 8
Laag 2 multicast-filteren profielen: 256
VLAN groepen: 4000
MAC-adressen per poort: tot 64
Statische ARP-vermeldingen: 128
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, statische IPv4-routing, statische IPv6-routing, MLDv2, MLD, MSTP, RSTP, STP
Protocol voor beheer op afstand
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB, SNMP
Voorzieningen
ZTP, 802.1x authenticatie, ACL-ondersteuning, DHCP-spionage, IPMB, Port Security, Storm Control, IGMP-spionage, QoS, 3 ventilatoren, CoS, DSCP-prioritering, beheer van bandbreedte, Link Aggregation, ondersteunt wachtrij-programmering, SP, WRR, MSTP-ondersteuning, ondersteuning RSTP, STP-ondersteuning, datatransport, lusdetectie, HOL Blocking Prevention, MVR, Voice VLAN, AAA, MIB, MIB II, LLDP ondersteuning, LLDP-MED, Cable Diagnostics Function, ondersteuning voor dubbele beelden, systeemlogboek, SNTP-ondersteuning, opslaan en verder, BOOTP-ondersteuning, ARP-inspectie, DoS bescherming tegen aanval, gespiegelde poorten, firmware die kan worden opgewaardeerd, DHCP-server, MLD spionage, DHCP relay, poortisolatie, IP source guard, VLAN-groep, Guest VLAN, EEE, BPDU Filter, MAB, DHCPv6-snooping, gepland opnieuw opstarten, Private VLAN, snel verlaten, SDN, BPDU, ondersteuning voor MAC en IP-ACL's, ondersteuning DSCP, gemerkte VLAN, Broadcast Storm Control, Unicast Storm Control, Multicast Storm Control
Conformiteitsnormen
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
44 cm x 33 cm x 4.4 cm
Systeemvereisten
Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11, Apple MacOS, Novell NetWare, UNIX, Linux

Algemeen

Type apparaat
Switch - 24 poorten - L2+ - Beheerd
Type bijvoegsel
Rack-uitvoering
Subtype
2.5 Gigabit Ethernet
Poorten
16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
500 W
Prestaties
Omschakelcapaciteit: 200 Gbps
Pakketdoorstuursnelheid: 148,80 Mpps
Capaciteit
IP interfaces: 32
Pakketbuffergrootte: 16 MB
Statische routes: 48
IGMP-groepen: 511
Voorkeurswachtrijen: 8
Maximaal aantal aggregatiegroepen: 8
Laag 2 multicast-filteren profielen: 256
VLAN groepen: 4000
MAC-adressen per poort: tot 64
Statische ARP-vermeldingen: 128
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, statische IPv4-routing, statische IPv6-routing, MLDv2, MLD, MSTP, RSTP, STP
Protocol voor beheer op afstand
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB, SNMP
Encryptie-algoritme
SSL, SSL 3.0, TLS 1.2
Authentificatiemethode
Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, TACACS+
Voorzieningen
ZTP, 802.1x authenticatie, ACL-ondersteuning, DHCP-spionage, IPMB, Port Security, Storm Control, IGMP-spionage, QoS, 3 ventilatoren, CoS, DSCP-prioritering, beheer van bandbreedte, Link Aggregation, ondersteunt wachtrij-programmering, SP, WRR, MSTP-ondersteuning, ondersteuning RSTP, STP-ondersteuning, datatransport, lusdetectie, HOL Blocking Prevention, MVR, Voice VLAN, AAA, MIB, MIB II, LLDP ondersteuning, LLDP-MED, Cable Diagnostics Function, ondersteuning voor dubbele beelden, systeemlogboek, SNTP-ondersteuning, opslaan en verder, BOOTP-ondersteuning, ARP-inspectie, DoS bescherming tegen aanval, gespiegelde poorten, firmware die kan worden opgewaardeerd, DHCP-server, MLD spionage, DHCP relay, poortisolatie, IP source guard, VLAN-groep, Guest VLAN, EEE, BPDU Filter, MAB, DHCPv6-snooping, gepland opnieuw opstarten, Private VLAN, snel verlaten, SDN, BPDU, ondersteuning voor MAC en IP-ACL's, ondersteuning DSCP, gemerkte VLAN, Broadcast Storm Control, Unicast Storm Control, Multicast Storm Control
Conformiteitsnormen
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
RAM
256 MB
Flashgeheugen
32 MB
Statuslampjes
Status

Uitbreiding / Aansluiting

Interfaces
16 x 10/100/1000/2.5G RJ-45 PoE+ - 30 W
8 x 10/100/1000/2.5G RJ-45 PoE++ - 60 W
4 x 10GBase-X SFP+
1 x console RJ-45
1 x micro-USB console

Stroom

Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik tijdens gebruik
629.1 watt
Stroomverbruik stand-by
24.2 watt

Diversen

Meegeleverde accessoires
Rubberen voetjes
Rackmontagekit
Inclusief
Conformiteitsnormen
FCC, RoHS

Software / Systeemvereisten

Benodigd besturingssysteem
Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11, Apple MacOS, Novell NetWare, UNIX, Linux

Afmetingen & gewicht

Breedte
44 cm
Diepte
33 cm
Hoogte
4.4 cm

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% RH (non-condensing)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
5 - 90% RH (non-condensing)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
