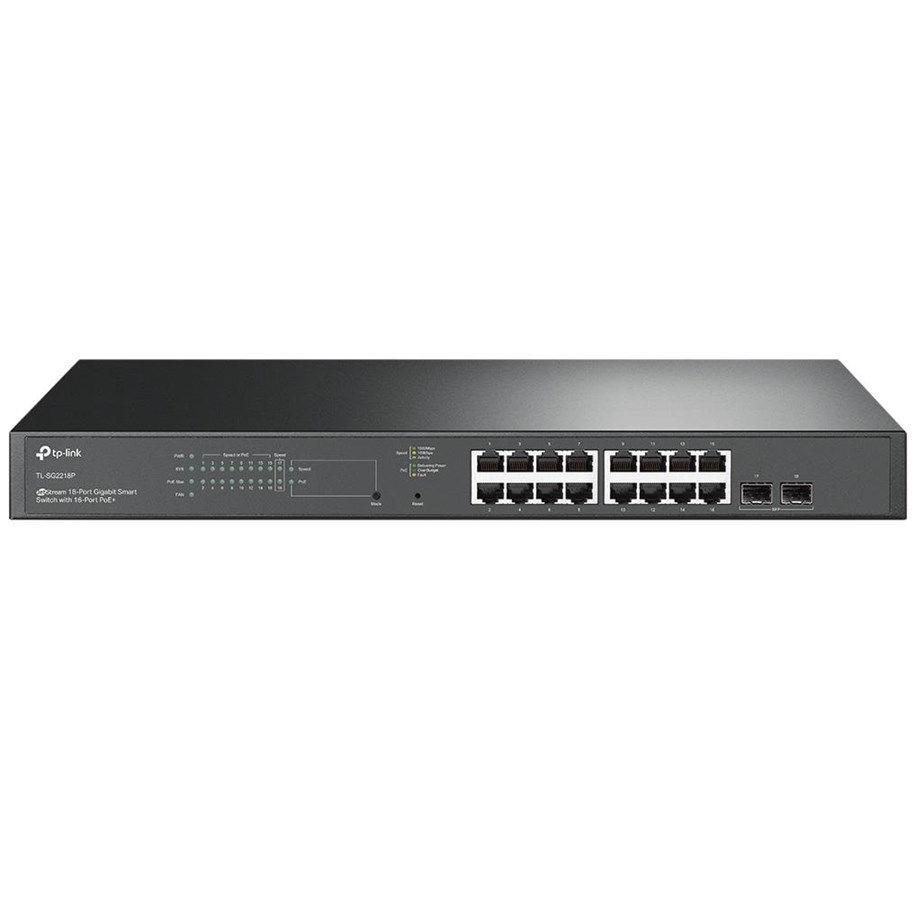

TP-Link TL-SG2218P JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+ (150W)
Switch, intelligent, 16 x 10/100/1000 (PoE+) + 2 x SFP, rack-uitvoering, PoE+ (150 W)
237,38 €
196,18 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 7 - 8 werkdagen levertijd
TP-Link's JetStream Gigabit smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Producent
Productnummer
3157185
Model
TL-SG2218P
EAN
4897098689509
Naar de website van de producent
Productbeschrijving
TP-Link JetStream TL-SG2218P V1.60 - switch - 18 poorten - intelligent - rack-uitvoering
Type apparaat
Switch - 18 poorten - intelligent
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
16 x 10/100/1000 (PoE+) + 2 x SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
150 W
Prestaties
Omschakelcapaciteit: 36 Gbps
Pakketdoorstuursnelheid: 26.78 Mpps
Pakketdoorstuursnelheid: 26.78 Mpps
Capaciteit
Pakketbuffergrootte: 4,1 Mbit
Voorkeurswachtrijen: 8
IP interfaces: 16
Statische routes: 32
VLAN groepen: tot 4000
ACL-invoergegevens: 230
Voorkeurswachtrijen: 8
IP interfaces: 16
Statische routes: 32
VLAN groepen: tot 4000
ACL-invoergegevens: 230
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
Statische IP-routing, IGMP, MLD, STP, RSTP, MSTP
Protocol voor beheer op afstand
HTTP, HTTPS, DHCP, IPv4, IPv6, CLI, ICMP, Telnet, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Syslog, SSH, SSH-2
Voorzieningen
ZTP, IPMB, ACL-ondersteuning, Port Security, DoS protection, DHCP-spionage, MLD spionage, IGMP-spionage, Storm Control, QoS, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), 1 ventilator, CoS, DSCP-prioritering, beheer van bandbreedte, tarieflimiet, SP, WRR, ARP-ondersteuning, Link Aggregation, ondersteuning DLDP, datatransport, lusdetectie, MSTP-ondersteuning, gespiegelde poorten, ondersteuning RSTP, STP-ondersteuning, STP BPDU Filtering, STP BPDU-poortbescherming, LLDP-MED, VLAN-ondersteuning, Voice VLAN, AAA, MIB II, MIB, SNTP-ondersteuning, EEE, Cable Diagnostics Function
Conformiteitsnormen
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
44 cm x 18 cm x 4.4 cm
Systeemvereisten
Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Novell NetWare, UNIX
Garantie van de fabrikant
5 jaar garantie
Algemeen
Type apparaat
Switch - 18 poorten - intelligent
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
16 x 10/100/1000 (PoE+) + 2 x SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
150 W
Prestaties
Omschakelcapaciteit: 36 Gbps
Pakketdoorstuursnelheid: 26.78 Mpps
Pakketdoorstuursnelheid: 26.78 Mpps
Capaciteit
Pakketbuffergrootte: 4,1 Mbit
Voorkeurswachtrijen: 8
IP interfaces: 16
Statische routes: 32
VLAN groepen: tot 4000
ACL-invoergegevens: 230
Voorkeurswachtrijen: 8
IP interfaces: 16
Statische routes: 32
VLAN groepen: tot 4000
ACL-invoergegevens: 230
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
Statische IP-routing, IGMP, MLD, STP, RSTP, MSTP
Protocol voor beheer op afstand
HTTP, HTTPS, DHCP, IPv4, IPv6, CLI, ICMP, Telnet, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Syslog, SSH, SSH-2
Encryptie-algoritme
SSL 3.0, TLS 1.2
Authentificatiemethode
Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, PAP, EAP-MD5
Voorzieningen
ZTP, IPMB, ACL-ondersteuning, Port Security, DoS protection, DHCP-spionage, MLD spionage, IGMP-spionage, Storm Control, QoS, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), 1 ventilator, CoS, DSCP-prioritering, beheer van bandbreedte, tarieflimiet, SP, WRR, ARP-ondersteuning, Link Aggregation, ondersteuning DLDP, datatransport, lusdetectie, MSTP-ondersteuning, gespiegelde poorten, ondersteuning RSTP, STP-ondersteuning, STP BPDU Filtering, STP BPDU-poortbescherming, LLDP-MED, VLAN-ondersteuning, Voice VLAN, AAA, MIB II, MIB, SNTP-ondersteuning, EEE, Cable Diagnostics Function
Conformiteitsnormen
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Uitbreiding / Aansluiting
Interfaces
16 x 1000Base-T RJ-45 PoE+
2 x 1000Base-X SFP
2 x 1000Base-X SFP
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Diversen
Meegeleverde accessoires
Rubberen voetjes
Rackmontagekit
Inclusief
Conformiteitsnormen
FCC, RoHS
Software / Systeemvereisten
Benodigd besturingssysteem
Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Novell NetWare, UNIX
Afmetingen & gewicht
Breedte
44 cm
Diepte
18 cm
Hoogte
4.4 cm
Garantie van de fabrikant
Service & Support
Beperkte garantie - 5 jaar
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
