Productnummer: 2597355

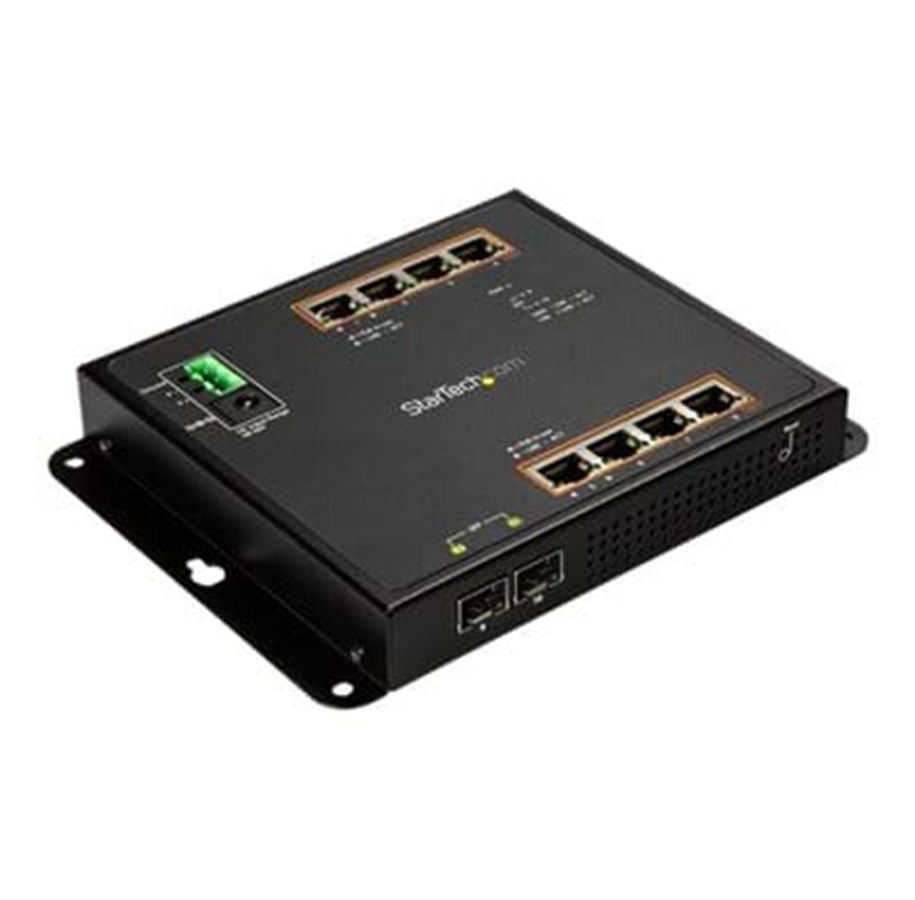

StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
Managed Network Switch (IES101GP2SFW), Switch, Managed, 8 x 10/100/1000 (PoE+) + 2 x SFP, DIN rail mountable, wall-mountable, PoE+ (200 W), for P/N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST
507,99 €
419,83 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 12 - 13 werkdagen levertijd
Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
Producent
Productnummer
2597355
Model
IES101GP2SFW
EAN
0065030871198
Naar de website van de producent
Productbeschrijving
Startech 8 poorts PoE+ Gigabit ethernet switch met 2 SFP connecties - managed - wandmonteerbaar met toegang voorzijde - switch - 10 poorten - Beheerd
Type apparaat
Switch - 10 poorten - Beheerd
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 (PoE+) + 2 x SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
200 W
Prestaties
Gegevensoverdrachtssnelheid: 2 Gbps
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMP, MLD
Protocol voor beheer op afstand
HTTP
Voorzieningen
Datatransport, Layer 2-omschakeling, IPv6-ondersteuning, volledige duplex modus, aan de muur bevestigbaar, TFTP-ondersteuning, gemerkte VLAN, 6KV ESD Protector, 802.1x authenticatie, ICMP, 6 KV EFT bescherming
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Afmetingen (BxDxH)
14.8 cm x 13.4 cm x 2.5 cm
Gewicht
496 g
Kleur
Zwart
Ontworpen voor
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCTEST, GLCTSTTAA, GLCZXSMRGDST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST
Algemeen
Type apparaat
Switch - 10 poorten - Beheerd
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 (PoE+) + 2 x SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
200 W
Prestaties
Gegevensoverdrachtssnelheid: 2 Gbps
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMP, MLD
Protocol voor beheer op afstand
HTTP
Voorzieningen
Datatransport, Layer 2-omschakeling, IPv6-ondersteuning, volledige duplex modus, aan de muur bevestigbaar, TFTP-ondersteuning, gemerkte VLAN, 6KV ESD Protector, 802.1x authenticatie, ICMP, 6 KV EFT bescherming
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Statuslampjes
Voeding
Uitbreiding / Aansluiting
Interfaces
8 x 1000Base-TX RJ-45 PoE+ - 30 W
2 x 1000Base-TX SFP
1 x aansluitblok
2 x 1000Base-TX SFP
1 x aansluitblok
Diversen
Kleur
Zwart
Meegeleverde accessoires
4 magneten, DIN-rail bevestigingskit, 4 schroeven, 2 SFP-stofkappen, aansluitpennen, afsluitpennen, 4 sluitringen, 8 RJ45-stofkappen
MTBF (gemiddelde tijd tussen twee storingen)
>100,000 uur
Conformiteitsnormen
FCC, RoHS, WEEE, IP30, RCM
Afmetingen & gewicht
Breedte
14.8 cm
Diepte
13.4 cm
Hoogte
2.5 cm
Gewicht
496 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Informatie over Compatibiliteit
Ontworpen voor
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM
