Productnummer: 3167584

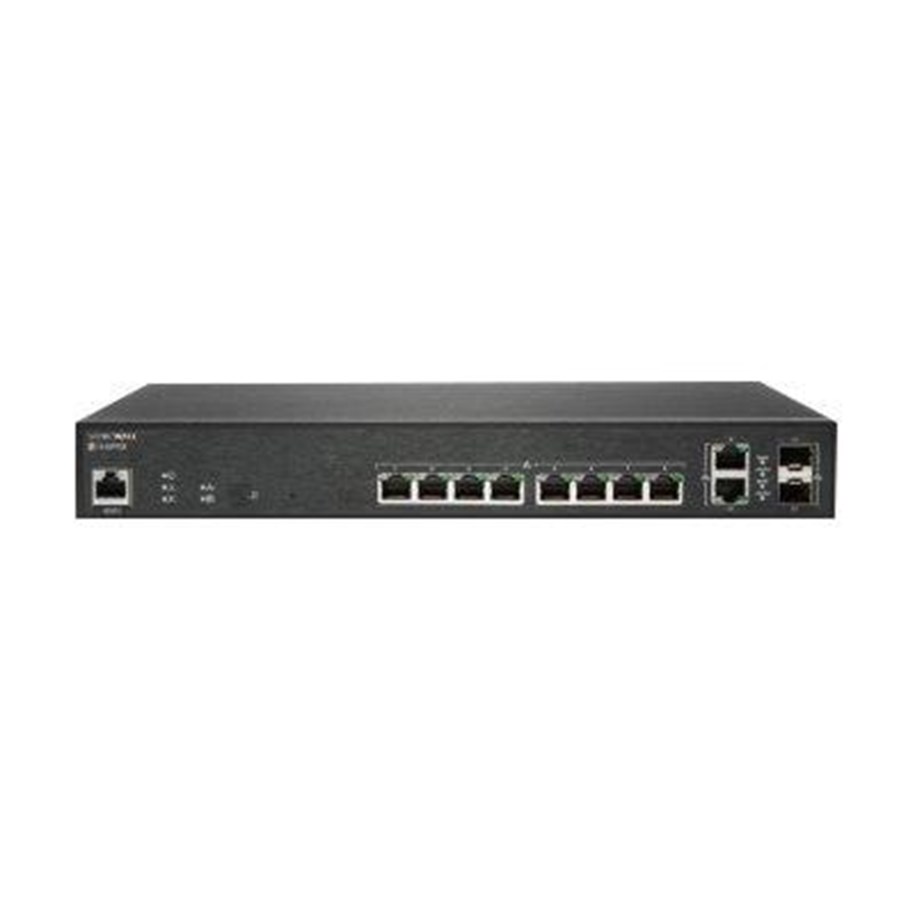

SonicWALL Switch SWS12-10FPOE

Switch, Beheerd, 10 x 10/100/1000 (PoE+) + 2 x Gigabit SFP, desktop, PoE+ (130 W)

535,09 € 442,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 13 - 14 werkdagen levertijd

The SonicWall Switch delivers high-speed network switching while providing unparalleled performance and manageability. Its unified security posture, high port density, and multi-gigabit performance capabilities make it ideal for small and medium-sized business (SMB), and Software-Defined Branch (SD-Branch) deployments. This enables businesses - big or small, to undergo digital transformation and keep pace with the changing network and security landscape.The SonicWall Secure SD-Branch solution transforms user experience at branch office locations by delivering a unified platform that enables branches to be deployed in minutes and delivers unified visibility and threat detection from a single pane of glass. SonicWall SD-Branch components consist of SonicWall next-generation firewalls with Secure SD-WAN, Capture Security Center with Zero-Touch Deployment, SonicWall Switches, SonicWave access points (AP), Capture Client and Cloud App Security. With the flexibility that SonicWall Secure SD-Branch offers, organizations can now be more agile, open and cloud-centric.An integral part of the next-generation branch transformation, the SonicWall Switches are managed via firewalls for unified, single-pane-of-glass management of the entire SonicWall infrastructure. By tightly integrating with firewalls, the solution benefits from unified security posture and offers an end-to-end security solution that simplifies deployment, management and troubleshooting. This ensures seamless security and eliminates gap in security posture that may arise with third party switches.In conjunction, the SonicWall Switch offers Zero-Touch Deployment capability with the ability to quickly roll out devices across branches spread out globally. Admins can quickly and securely deploy these switches at new locations without requiring any costly on-site IT personnel.Prioritize certain traffic on the network such as VOIP for video conferences while working from home, with features such as QoS. Easily segment devices in the network and maintain compliance. Segregating can be accomplished by creating policies or VLANs. Features such as 802.1X authentication allow business to maintain PCI compliance.

Producent
Productnummer
3167584
Model
02-SSC-2464
EAN
758479224648
Naar de website van de producent
Switch type
Managed
Switch-laag
L2
System event log
Ja
MIB-ondersteuning
MIB-II
Aantal basis-switching RJ-45 Ethernet-poorten
10
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF
2
Console port
RJ-45
Netwerkstandaard
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
10G support
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port mirroring
Ja
IP routing
Ja
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4096
MAC-adrestabel
8000 entries
Switchingcapaciteit
24 Gbit/s
Jumbo Frames ondersteuning
Ja
DHCP-functies
DHCP client, DHCP relay, DHCP snooping
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, HTTPS, SNMP, SSH
Multicast-ondersteuning
Ja
Kleur van het product
Zwart
LED-indicatoren
Storing, Power over Ethernet (PoE), Stroom
Aantal ventilatoren
1 ventilator(en)
Intern geheugen
256 MB
Flash memory
32 MB
Mean time between failures (MTBF)
180837 uur
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2.5 A
Vermogensverbruik (max)
152,8 W
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
130 W
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Warmtedissipatie
521,1 BTU/h
Breedte
330 mm
Diepte
44 mm
Hoogte
230 mm
Gewicht
2,5 kg
Certificering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Code geharmoniseerd systeem (HS)
85176990

Beheerfuncties

Switch type
Managed
Switch-laag
L2
System event log
Ja
MIB-ondersteuning
MIB-II

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
10
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF
2
Console port
RJ-45

Netwerk

Netwerkstandaard
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
10G support
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port mirroring
Ja
IP routing
Ja
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4096

Data-uitwisseling

MAC-adrestabel
8000 entries
Switchingcapaciteit
24 Gbit/s
Jumbo Frames ondersteuning
Ja

Beveiliging

DHCP-functies
DHCP client, DHCP relay, DHCP snooping
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, HTTPS, SNMP, SSH

Multicast-functies

Multicast-ondersteuning
Ja

Design

Kleur van het product
Zwart
LED-indicatoren
Storing, Power over Ethernet (PoE), Stroom
Aantal ventilatoren
1 ventilator(en)

Prestatie

Intern geheugen
256 MB
Flash memory
32 MB
Mean time between failures (MTBF)
180837 uur

Energie

Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2.5 A
Vermogensverbruik (max)
152,8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
130 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Warmtedissipatie
521,1 BTU/h

Gewicht en omvang

Breedte
330 mm
Diepte
44 mm
Hoogte
230 mm
Gewicht
2,5 kg

Certificaten

Certificering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
