Productnummer: 3385687

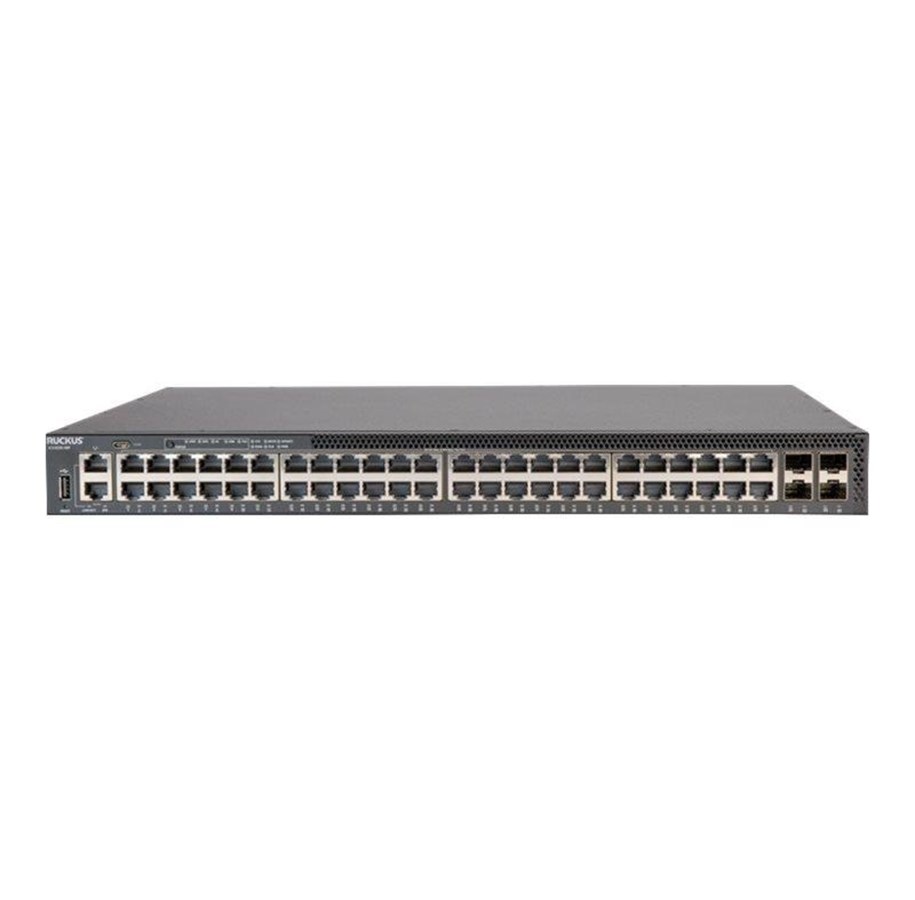

Ruckus Wireless Ruckus ICX 8200
Switch, L3, Beheerd, 48 x 10/100/1000 (PoE+) + 4 x 25 GbE SFP28 (stacking / uplink), luchtstroom van voorkant naar achterkant, rack-uitvoering, PoE+ (1440 W)
8.795,13 €
7.268,70 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.The RUCKUS ICX 8200 raises the bar with up to 8x 25GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.
Producent
Productnummer
3385687
Model
ICX8200-48PF2-E2
Naar de website van de producent
Switch type
Managed
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Console port
USB
Aantal SFP28-poorten
4
10G support
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN
Switchingcapaciteit
296 Gbit/s
Verzending snelheid
220 Mpps
IGMP snooping
Ja
MAC adres filtering
Ja
Bescherming lus
Ja
Rack-montage
Ja
Stapelbaar
Ja
Kleur van het product
Zwart
Stroombron
AC/PoE
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power over Ethernet (PoE)
Ja
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3048 m
Hoogte bij opslag
0 - 12000 m
Warmtedissipatie
389 BTU/h
Breedte
440 mm
Diepte
370 mm
Hoogte
44 mm
Gewicht
5,51 kg
Beheerfuncties
Switch type
Managed
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Console port
USB
Aantal SFP28-poorten
4
Netwerk
10G support
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN
Data-uitwisseling
Switchingcapaciteit
296 Gbit/s
Verzending snelheid
220 Mpps
Beveiliging
IGMP snooping
Ja
MAC adres filtering
Ja
Bescherming lus
Ja
Design
Rack-montage
Ja
Stapelbaar
Ja
Kleur van het product
Zwart
Energie
Stroombron
AC/PoE
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3048 m
Hoogte bij opslag
0 - 12000 m
Warmtedissipatie
389 BTU/h
Gewicht en omvang
Breedte
440 mm
Diepte
370 mm
Hoogte
44 mm
Gewicht
5,51 kg
