Productnummer: 3385690

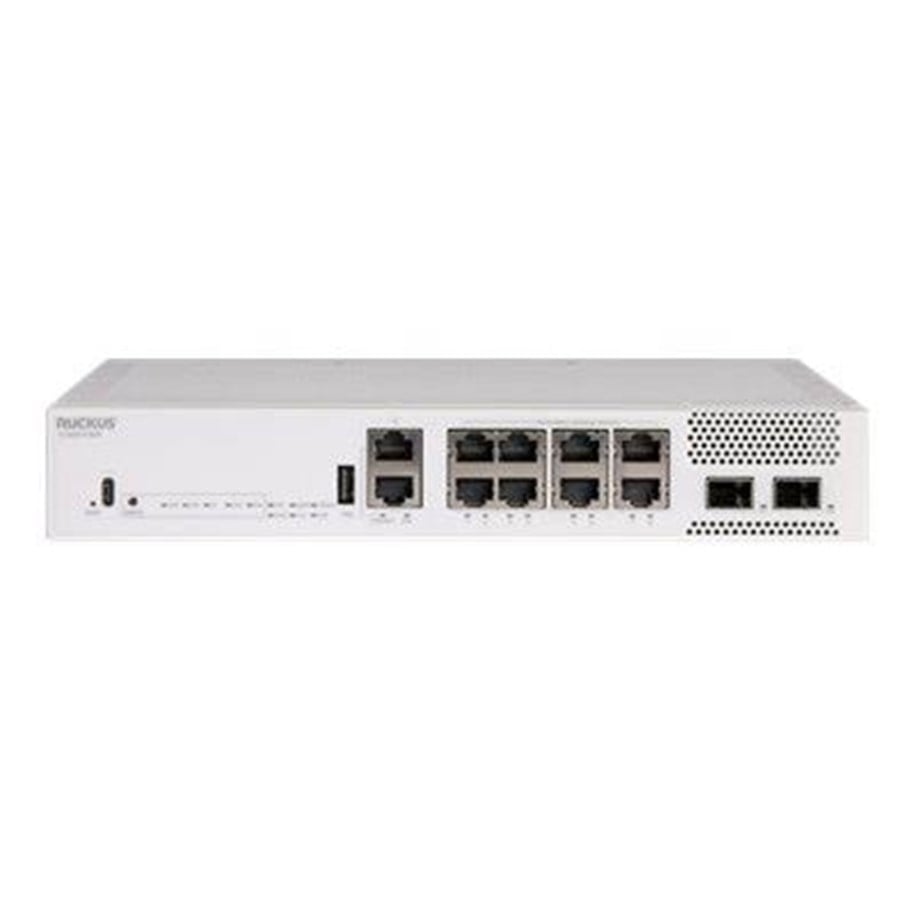

Ruckus Wireless Ruckus ICX 8200 Compact

Switch, L3, Beheerd, 4 x 10/100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x 25 GbE SFP28 (stacking / uplink), desktop, PoE++ (240 W)

6.134,43 € 5.069,78 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.The RUCKUS ICX 8200 raises the bar with up to 8x 25GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.These RUCKUS ICX 8200 compact switches offer a single integrated power supply, one USB Type-C port for console management, one RJ-45 Ethernet port for out-of-band network management, one RJ-45 port for serial console management, and one USB port for external file storage.

Producent
Productnummer
3385690
Model
ICX8200-C08ZP
Naar de website van de producent
Productbeschrijving
Ruckus ICX 8200 Compact - switch - 8 poorten - Beheerd
Type apparaat
Switch - 8 poorten - L3 - Beheerd - stapelbaar
Type bijvoegsel
1U
Poorten
4 x 10/100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x 25 GbE SFP28 (stacking / uplink)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
240 W
Prestaties
Omschakelcapaciteit: 200 Gbps
Doorzendsnelheid: 148 Mpps
Bandbreedte stacking: 600 Gbps
Capaciteit
Virtuele interfaces (VLAN's): 4095
Spanning Tree Protocol-mogelijkheden: 253
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
OSPF, VRRP, GRE, statische IPv4-routing, statische IPv6-routing
Protocol voor beheer op afstand
SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP
Voorzieningen
Datatransport, DHCP-ondersteuning, BOOTP-ondersteuning, ARP-ondersteuning, VLAN-ondersteuning, WRR-queing, MAC adresfiltering, DDos aanvalspreventie, ondersteuning MRP, sFlow, PIM-spionage, STP-ondersteuning, ondersteuning RSTP
Afmetingen (BxDxH)
27 cm x 26 cm x 4.4 cm
Gewicht
3.23 kg

Algemeen

Type apparaat
Switch - 8 poorten - L3 - Beheerd - stapelbaar
Type bijvoegsel
Desktop 1U
Poorten
4 x 10/100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x 25 GbE SFP28 (stacking / uplink)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
240 W
Prestaties
Omschakelcapaciteit: 200 Gbps
Doorzendsnelheid: 148 Mpps
Bandbreedte stacking: 600 Gbps
Capaciteit
Virtuele interfaces (VLAN's): 4095
Spanning Tree Protocol-mogelijkheden: 253
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Maximaal aantal eenheden op een stapel
12
Routingprotocol
OSPF, VRRP, GRE, statische IPv4-routing, statische IPv6-routing
Protocol voor beheer op afstand
SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP
Encryptie-algoritme
AES
Authentificatiemethode
RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Voorzieningen
Datatransport, DHCP-ondersteuning, BOOTP-ondersteuning, ARP-ondersteuning, VLAN-ondersteuning, WRR-queing, MAC adresfiltering, DDos aanvalspreventie, ondersteuning MRP, sFlow, PIM-spionage, STP-ondersteuning, ondersteuning RSTP
RAM
4 GB
Flashgeheugen
8 GB

Uitbreiding / Aansluiting

Interfaces
4 x 10/100/1000/2.5G (PoE++) RJ-45
4 x 1/2.5/5/10 (PoE++) RJ-45
1 x RJ-45 out-of-band netwerkbeheer
1 x USB-C console management
1 x serieel (console) RJ-45 beheer
1 x USB opslag
2 x 25 GbE SFP28 uplink/stacking

Stroom

Voeding
Interne stroomvoorziening
Aantal geïnstalleerd
1
Max. aantal ondersteund
1
Geleverde energie
305 Watt

Diversen

Conformiteitsnormen
EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15 B Class A, VCCI Class A, EN 300 386, KN32 Class A, KN35 Class A, EN 55032, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, TCVN 7189 Class A, TCVN 7317, EN 55035

Afmetingen & gewicht

Breedte
27 cm
Diepte
26 cm
Hoogte
4.4 cm
Gewicht
3.23 kg

Garantie van de fabrikant

Service & Support
Beperkte garantie - levenslang
Beperkte garantie - technische ondersteuning - 3 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
45 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
10 - 90% (niet condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
