Productnummer: 2582554
PLANET Schakelaar - 10 porte - Administreret
Switch, Beheerd, 8 x 10/100/1000 + 2 x Gigabit SFP, monteerbaar op DIN-rails, wandbevestiging, 24 V wisselstroom / 12, 48 V gelijkstroom
372,51 €
307,86 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

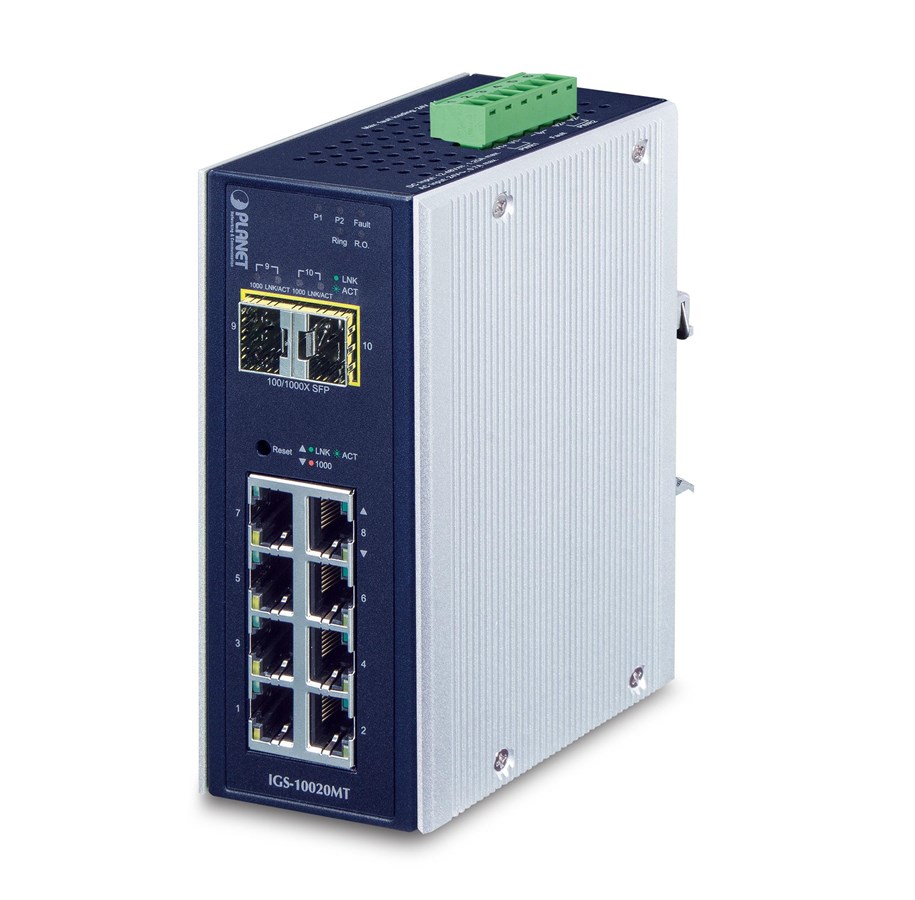

PLANET IGS-10020MT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable but high speed data in heavy industrial demanding environments and forward data to remote network through fiber optic. Besides support for 20Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-10020MT provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.
Producent
Productnummer
2582554
Model
IGS-10020MT
EAN
4711213688782
Naar de website van de producent
Productbeschrijving
PLANET IGS-10020MT - switch - 10 poorten - Beheerd
Type apparaat
Switch - 10 poorten - Beheerd
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 + 2 x Gigabit SFP
Prestaties
Wisselende fabric-bandbreedte: 20 Gbps
Bandbreedte: 20 Gbps
Verwerkingscapaciteit: 14,8 Mpps
Bandbreedte: 20 Gbps
Verwerkingscapaciteit: 14,8 Mpps
Capaciteit
VLAN groepen: 255
ACL-invoergegevens: 123
Virtuele interfaces (VLAN's): 4095
ACL-invoergegevens: 123
Virtuele interfaces (VLAN's): 4095
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, MLD, MLDv2
Protocol voor beheer op afstand
HTTP, Telnet, SNMP 3, SNMP 1, SNMP 2c, RMON, SSH
Voorzieningen
IPv4-ondersteuning, IPv6-ondersteuning, QoS, Redundant Ring Technology, MSTP-ondersteuning, DDM, 6KV ESD Protector, 6 KV EFT bescherming, volledige duplex modus, half duplex modus, opslaan en verder, Multicast Storm Control, Unicast Storm Control, gemerkte VLAN, VLAN-ondersteuning, ondersteuning RSTP, STP-ondersteuning, BPDU, Link Aggregation, LACP, full-duplexcapaciteit, ERPS, gespiegelde poorten, CoS, ondersteuning DSCP, IGMP-spionage, MVR, ACL-ondersteuning, DoS, DHCP-spionage, DHCP-ondersteuning, DAI, BOOTP-ondersteuning, Cable Diagnostics Function, DHCP relay, firmware die kan worden opgewaardeerd, LLDP ondersteuning, NTP, reset-knop, systeemlogboek, TFTP-ondersteuning, auto-uplink (auto MDI/MDI-X), Jumbo Frames ondersteuning, datatransport, automatische onderhandeling, WRR-queing, beheer van bandbreedte, ToS, MLD spionage, TFTP-cliënt, SSH-ondersteuning
Conformiteitsnormen
IEEE 802.1s, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Stroom
24 V wisselstroom / 12 - 48 V gelijkstroom
Stroomredundantie
Ja
Afmetingen (BxDxH)
8.78 cm x 13.5 cm x 5.6 cm
Gewicht
720 g
Algemeen
Type apparaat
Switch - 10 poorten - Beheerd
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 + 2 x Gigabit SFP
Prestaties
Wisselende fabric-bandbreedte: 20 Gbps
Bandbreedte: 20 Gbps
Verwerkingscapaciteit: 14,8 Mpps
Bandbreedte: 20 Gbps
Verwerkingscapaciteit: 14,8 Mpps
Capaciteit
VLAN groepen: 255
ACL-invoergegevens: 123
Virtuele interfaces (VLAN's): 4095
ACL-invoergegevens: 123
Virtuele interfaces (VLAN's): 4095
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, MLD, MLDv2
Protocol voor beheer op afstand
HTTP, Telnet, SNMP 3, SNMP 1, SNMP 2c, RMON, SSH
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
IPv4-ondersteuning, IPv6-ondersteuning, QoS, Redundant Ring Technology, MSTP-ondersteuning, DDM, 6KV ESD Protector, 6 KV EFT bescherming, volledige duplex modus, half duplex modus, opslaan en verder, Multicast Storm Control, Unicast Storm Control, gemerkte VLAN, VLAN-ondersteuning, ondersteuning RSTP, STP-ondersteuning, BPDU, Link Aggregation, LACP, full-duplexcapaciteit, ERPS, gespiegelde poorten, CoS, ondersteuning DSCP, IGMP-spionage, MVR, ACL-ondersteuning, DoS, DHCP-spionage, DHCP-ondersteuning, DAI, BOOTP-ondersteuning, Cable Diagnostics Function, DHCP relay, firmware die kan worden opgewaardeerd, LLDP ondersteuning, NTP, reset-knop, systeemlogboek, TFTP-ondersteuning, auto-uplink (auto MDI/MDI-X), Jumbo Frames ondersteuning, datatransport, automatische onderhandeling, WRR-queing, beheer van bandbreedte, ToS, MLD spionage, TFTP-cliënt, SSH-ondersteuning
Conformiteitsnormen
IEEE 802.1s, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Statuslampjes
Voeding, link/activiteit, mislukt, transmissiesnelheid van poort
Uitbreiding / Aansluiting
Interfaces
8 x 1000Base-T RJ-45
2 x 1000Base-X SFP
2 x 1000Base-X SFP
Stroom
Voeding
Interne stroomvoorziening
Stroomredundantie
Ja
Vereiste netspanning
24 V wisselstroom / 12 - 48 V gelijkstroom
Energieverbruik tijdens gebruik
10 watt
Diversen
Conformiteitsnormen
IP30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A
Afmetingen & gewicht
Breedte
8.78 cm
Diepte
13.5 cm
Hoogte
5.6 cm
Gewicht
720 g
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
75 °C
Luchtvochtigheidsgraad bij opslaan
5 - 95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
