Productnummer: 2554138

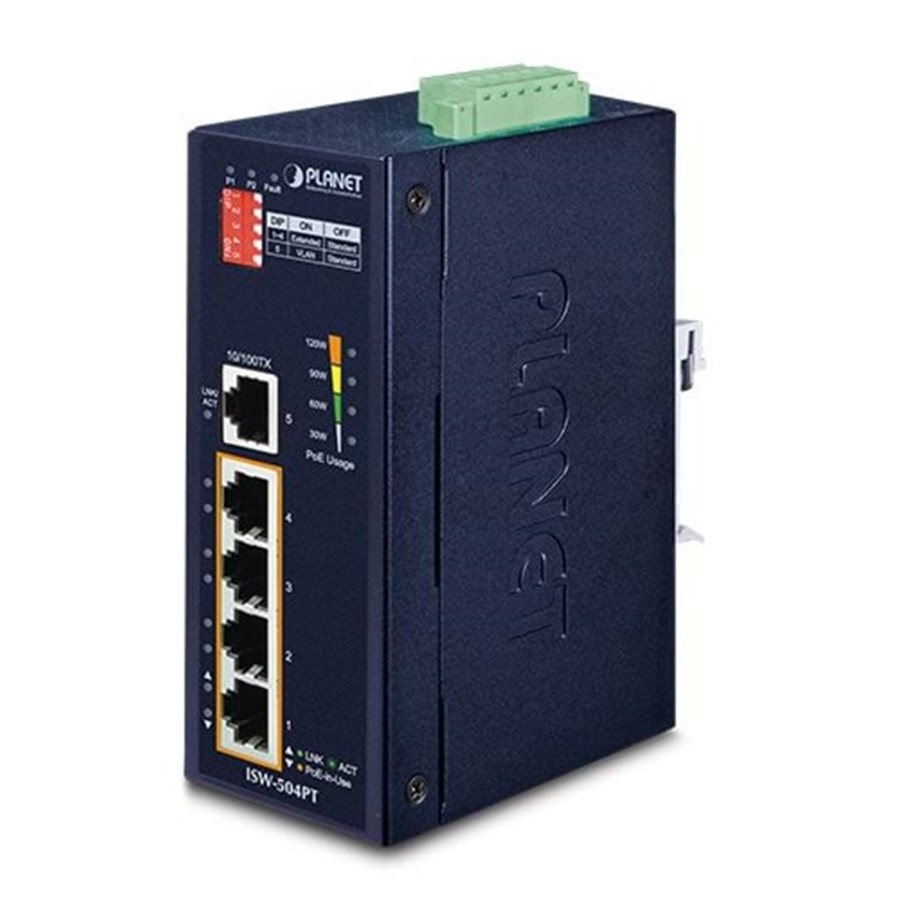

PLANET ISW-504PT Industrial 5-Port 10/100TX Ethernet Switch with 4-Port 802.3at PoE+
Switch, 4 x 10/100 (PoE) + 1 x 10/100, monteerbaar op DIN-rails, wandbevestiging, PoE, gelijkstroom
188,51 €
155,79 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The ISW-504PT Power over Ethernet Industrial Switch from Planet Technology has been crafted to make connection simple in tough industrial environments. This unit has the ability to transmit power and data over one Ethernet cable to remote PoE devices. The unit features 5 10/100Mbps copper ports with a 4-Port IEEE 802.3af Power over Ethernet inject interfaces. This unit comes in a durable IP-30 rugged case, which makes it ideal for industries. The ISW-504PT also provides to 15.4Watts power per port for IEEE 802.3af remote powered devices, which makes it the unit of choice when seeking to install wireless service or surveillance in environments ranging from 40 to 75 degrees Celcius.
Producent
Productnummer
2554138
Model
ISW-504PT
EAN
4711213688829
Naar de website van de producent
Productbeschrijving
PLANET ISW-504PT - switch - 5 poorten
Type apparaat
Switch - 5 poorten
Subtype
Fast Ethernet
Poorten
4 x 10/100 (PoE) + 1 x 10/100
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
Prestaties
Wisselende fabric-bandbreedte: 1 Gbps
Verwerkingscapaciteit: 0.74 Mpps
Verwerkingscapaciteit: 0.74 Mpps
MAC-adrestabelgrootte
2K invoergegevens
Voorzieningen
Volledige duplex modus, half duplex modus, auto-uplink (auto MDI/MDI-X), automatische onderhandeling, opslaan en verder
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Stroom
DC 24/48 V
Afmetingen (BxDxH)
13.5 cm x 8.78 cm x 5.6 cm
Gewicht
842 g
Algemeen
Type apparaat
Switch - 5 poorten
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Fast Ethernet
Poorten
4 x 10/100 (PoE) + 1 x 10/100
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
Prestaties
Wisselende fabric-bandbreedte: 1 Gbps
Verwerkingscapaciteit: 0.74 Mpps
Verwerkingscapaciteit: 0.74 Mpps
MAC-adrestabelgrootte
2K invoergegevens
Voorzieningen
Volledige duplex modus, half duplex modus, auto-uplink (auto MDI/MDI-X), automatische onderhandeling, opslaan en verder
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Statuslampjes
Link/activiteit, voeding, PoE
Uitbreiding / Aansluiting
Interfaces
4 x 100Base-TX RJ-45 PoE - 15.4 W
1 x 100Base-TX RJ-45
1 x 100Base-TX RJ-45
Stroom
Vereiste netspanning
DC 24/48 V
Diversen
Conformiteitsnormen
FCC Part 15 A, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Afmetingen & gewicht
Breedte
13.5 cm
Diepte
8.78 cm
Hoogte
5.6 cm
Gewicht
842 g
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
5 - 90%
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
85 °C
Luchtvochtigheidsgraad bij opslaan
5 - 90% (niet condenserend)
