Productnummer: 2434575

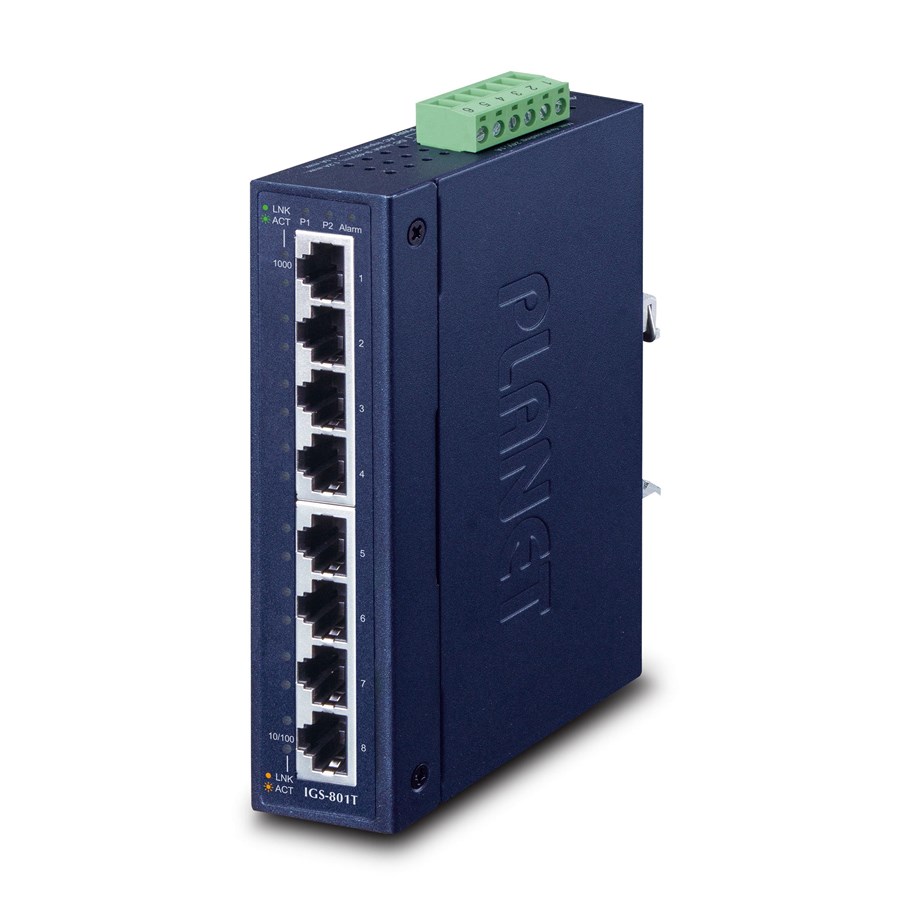

PLANET IGS-801T 8-Port 10/100/1000T Industrial Gigabit Ethernet Switch
Switch, 8 x 10/100/1000, monteerbaar op DIN-rails
150,87 €
124,69 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The compact, IP-30 standard metal case IGS-801T allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
Producent
Productnummer
2434575
Model
IGS-801T
EAN
4711213687792
Naar de website van de producent
Switch type
Unmanaged
Switch-laag
L2
Quality of Service (QoS)
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
8
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e, Cat6
Full duplex
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
MAC-adrestabel
4000 entries
Switchingcapaciteit
16 Gbit/s
Throughput
11,9 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Rack-montage
Nee
Kleur van het product
Blauw
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Redundante voeding
Ja
Stroomverbruik (typisch)
6,72 W
Power over Ethernet (PoE)
Nee
Klemmenblokpoort
Ja
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
23 BTU/h
Breedte
32 mm
Diepte
87 mm
Hoogte
135 mm
Gewicht
476 g
Certificering
FCC, CE
Code geharmoniseerd systeem (HS)
85176990
Beheerfuncties
Switch type
Unmanaged
Switch-laag
L2
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
8
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e, Cat6
Full duplex
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Data-uitwisseling
MAC-adrestabel
4000 entries
Switchingcapaciteit
16 Gbit/s
Throughput
11,9 Mpps
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Design
Rack-montage
Nee
Kleur van het product
Blauw
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Energie
Redundante voeding
Ja
Stroomverbruik (typisch)
6,72 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Overige specificaties
Klemmenblokpoort
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
23 BTU/h
Gewicht en omvang
Breedte
32 mm
Diepte
87 mm
Hoogte
135 mm
Gewicht
476 g
Certificaten
Certificering
FCC, CE
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
