Productnummer: 3466491

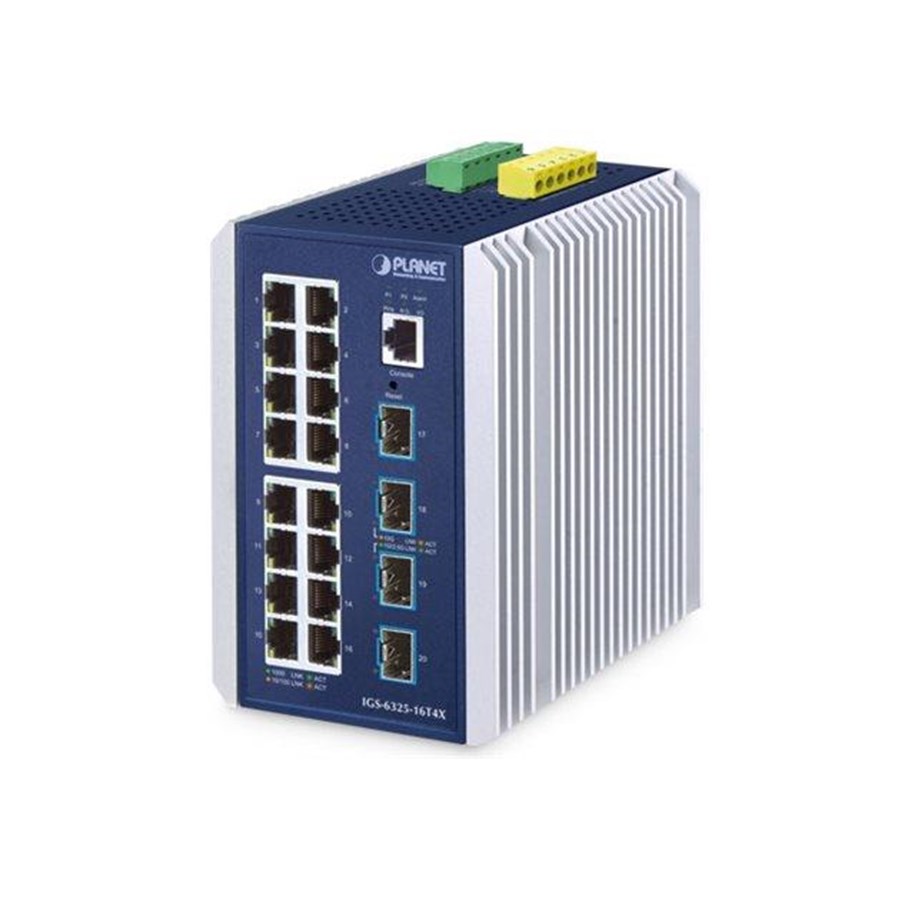

PLANET IGS-6325-16T4X - switch - industrial - 20 ports - Managed
Switch, industrieel, L3, Beheerd, 16 x 10/100/1000Base-T + 4 x 10 Gigabit SFP+, monteerbaar op DIN-rails, wandbevestiging
1.038,88 €
858,58 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The IGS-6325-16T4X by PLANET Technology enhances networking capabilities with up to 128 VLAN interfaces and supports 4,096 VLAN IDs, making it suitable for complex network configurations. Designed for industrial environments, it operates effectively in temperatures ranging from -40°C to 75°C. The device also features robust 64 MB flash memory and is equipped with an internal power supply, ensuring reliable performance across diverse applications. Its advanced Layer 3 switching includes support for multiple routing protocols, robust MAC address table size, and switching fabric bandwidth of 112 Gbps, facilitating efficient data processing. With manageable features and various remote management protocols, this switch meets the demands of modern networking needs.
Producent
Productnummer
3466491
Model
IGS-6325-16T4X
EAN
4711605287425
Naar de website van de producent
Productbeschrijving
PLANET IGS-6325-16T4X - switch - industrieel - 20 poorten - Beheerd
Type apparaat
Switch - 20 poorten - L3 - Beheerd
Subtype
Gigabit Ethernet / 10 Gigabit Ethernet
Poorten
16 x 10/100/1000Base-T + 4 x 10 Gigabit SFP+
Prestaties
Wisselende fabric-bandbreedte: 112 Gbps
Throughput (64-byte pakketgrootte): 83.3 Mpps
Gegevensuitwisselingsbuffer: 32 Mbps
Throughput (64-byte pakketgrootte): 83.3 Mpps
Gegevensuitwisselingsbuffer: 32 Mbps
Capaciteit
VLAN-interface: tot 128
Routing table-invoergegevens: 4000
VLAN-id's: 4096
IGMP-groepen: 255
Routing table-invoergegevens: 4000
VLAN-id's: 4096
IGMP-groepen: 255
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
Statische IPv4-routing, statische IPv6-routing, RIP-2, RIP-1, OSPFv2, OSPFv3, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Protocol voor beheer op afstand
Telnet, SNMP 1, SNMP 2c, SSH-2, SNMP 3, SMTP, UDP, TFTP, ICMP, HTTP
Voorzieningen
Reset-knop, aluminium behuizing, 6KV ESD Protector, 4KV stroompiek bescherming, opslaan en verder, datatransport, halve/volle duplexmodus, automatische onderhandeling, gespiegelde poorten, VLAN-ondersteuning, Q-in-Q tunneling, PVE, MAC based VLAN, ondersteuning voor Protocol-based VLAN's, Voice VLAN, MVR, GVRP, BPDU, Link Aggregation, IGMP-spionage, ERPS, PTP, QoS, WRR, ondersteuning DSCP, ToS, ACL-ondersteuning, AAA, firmware die kan worden opgewaardeerd, ondersteunt NTP, LLDP ondersteuning
Conformiteitsnormen
IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), ITU-T G.8032, IEEE 1588v2, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.3ae, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, IEEE 1588-2008
Stroom
AC 24 / DC 9-48 V
Afmetingen (BxDxH)
9.6 cm x 10.7 cm x 15.2 cm
Gewicht
1.503 kg
Algemeen
Type apparaat
Switch - 20 poorten - L3 - Beheerd
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet / 10 Gigabit Ethernet
Poorten
16 x 10/100/1000Base-T + 4 x 10 Gigabit SFP+
Prestaties
Wisselende fabric-bandbreedte: 112 Gbps
Throughput (64-byte pakketgrootte): 83.3 Mpps
Gegevensuitwisselingsbuffer: 32 Mbps
Throughput (64-byte pakketgrootte): 83.3 Mpps
Gegevensuitwisselingsbuffer: 32 Mbps
Capaciteit
VLAN-interface: tot 128
Routing table-invoergegevens: 4000
VLAN-id's: 4096
IGMP-groepen: 255
Routing table-invoergegevens: 4000
VLAN-id's: 4096
IGMP-groepen: 255
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
Statische IPv4-routing, statische IPv6-routing, RIP-2, RIP-1, OSPFv2, OSPFv3, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Protocol voor beheer op afstand
Telnet, SNMP 1, SNMP 2c, SSH-2, SNMP 3, SMTP, UDP, TFTP, ICMP, HTTP
Encryptie-algoritme
TLS 1.2
Authentificatiemethode
Secure Shell v.2 (SSH2), RADIUS, TACACS+
Voorzieningen
Reset-knop, aluminium behuizing, 6KV ESD Protector, 4KV stroompiek bescherming, opslaan en verder, datatransport, halve/volle duplexmodus, automatische onderhandeling, gespiegelde poorten, VLAN-ondersteuning, Q-in-Q tunneling, PVE, MAC based VLAN, ondersteuning voor Protocol-based VLAN's, Voice VLAN, MVR, GVRP, BPDU, Link Aggregation, IGMP-spionage, ERPS, PTP, QoS, WRR, ondersteuning DSCP, ToS, ACL-ondersteuning, AAA, firmware die kan worden opgewaardeerd, ondersteunt NTP, LLDP ondersteuning
Conformiteitsnormen
IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), ITU-T G.8032, IEEE 1588v2, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.3ae, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, IEEE 1588-2008
RAM
512 MB
Flashgeheugen
64 MB
Statuslampjes
Systeem, link/activiteit
Uitbreiding / Aansluiting
Interfaces
16 x 1000Base-T RJ-45
4 x 10GBase-SR/LR SFP+
1 x serieel (console) RJ-45
1 x DI/DO 6-pins afsluitbeveiliging
1 x alarmuitgang
4 x 10GBase-SR/LR SFP+
1 x serieel (console) RJ-45
1 x DI/DO 6-pins afsluitbeveiliging
1 x alarmuitgang
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
AC 24 / DC 9-48 V
Diversen
Conformiteitsnormen
IP30, FCC Part 15 A, IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6, RFC768, RFC1350, RFC791, RFC792, RFC2068, RFC1058, RFC2453, RFC1112, RFC2236, RFC3376, RFC2710, RFC3810, RFC2328, RFC2740
Afmetingen & gewicht
Breedte
9.6 cm
Diepte
10.7 cm
Hoogte
15.2 cm
Gewicht
1.503 kg
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
85 °C
Luchtvochtigheidsgraad bij opslaan
5 - 95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
