Productnummer: 3498131
PLANET IGS-5225-4UP1T2S - switch - Managed
Switch, L2+, Beheerd, 1 x 10/100/1000 + 4 x 10/100/1000 (UPOE) + 2 x SFP, monteerbaar op DIN-rails, wandbevestiging, UPOE (240 W), Gelijkstroom
518,85 €
428,80 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

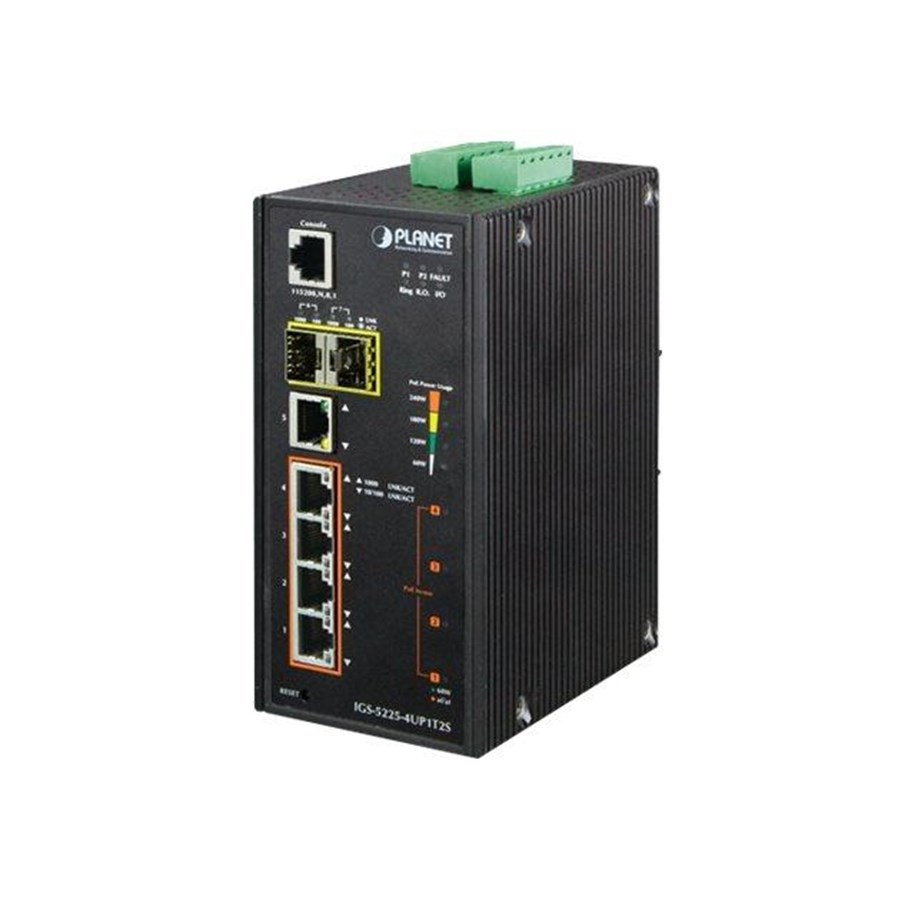

PLANET Industrial 4-port Gigabit Ultra PoE Switch, IGS-5225-4UP1T2S, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-5225-4UP1T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S can be placed in almost any difficult environment. The IGS-5225-4UP1T2S also allows either DIN rail or wall mounting for efficient use of cabinet space.
Producent
Productnummer
3498131
Model
IGS-5225-4UP1T2S
EAN
4711605282444
Naar de website van de producent
Productbeschrijving
PLANET IGS-5225-4UP1T2S - switch - Beheerd
Type apparaat
Switch - L2+ - Beheerd
Subtype
Gigabit Ethernet
Poorten
1 x 10/100/1000 + 4 x 10/100/1000 (UPOE) + 2 x SFP
Voeding via ethernet (Power Over Ethernet, PoE)
UPOE
PoE-budget
240 W
Prestaties
Wisselende fabric-bandbreedte: 14 Gbps
Throughput (64-byte pakketgrootte): 10.42 Mpps
Throughput (64-byte pakketgrootte): 10.42 Mpps
Capaciteit
VLAN groepen: 255
VLAN-id's: 4094
VLAN-id's: 4094
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, statische IPv4-routing, statische IPv6-routing, MLDv2, MLD
Protocol voor beheer op afstand
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH
Voorzieningen
Automatische onderhandeling, auto-uplink (auto MDI/MDI-X), IGMP-spionage, gespiegelde poorten, opslaan en verder, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware die kan worden opgewaardeerd, STP-ondersteuning, ACL-ondersteuning, MLD spionage, MVR, gemerkte VLAN, 6KV ESD Protector, Link Aggregation, WRR
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bt
Stroom
DC 48 - 56 V
Afmetingen (BxDxH)
7.2 cm x 10.7 cm x 15.2 cm
Gewicht
1.05 kg
Algemeen
Type apparaat
Switch - L2+ - Beheerd
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
1 x 10/100/1000 + 4 x 10/100/1000 (UPOE) + 2 x SFP
Voeding via ethernet (Power Over Ethernet, PoE)
UPOE
PoE-budget
240 W
Prestaties
Wisselende fabric-bandbreedte: 14 Gbps
Throughput (64-byte pakketgrootte): 10.42 Mpps
Throughput (64-byte pakketgrootte): 10.42 Mpps
Capaciteit
VLAN groepen: 255
VLAN-id's: 4094
VLAN-id's: 4094
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3, statische IPv4-routing, statische IPv6-routing, MLDv2, MLD
Protocol voor beheer op afstand
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH
Encryptie-algoritme
SSL
Authentificatiemethode
Secure Shell (SSH), RADIUS, TACACS+
Voorzieningen
Automatische onderhandeling, auto-uplink (auto MDI/MDI-X), IGMP-spionage, gespiegelde poorten, opslaan en verder, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware die kan worden opgewaardeerd, STP-ondersteuning, ACL-ondersteuning, MLD spionage, MVR, gemerkte VLAN, 6KV ESD Protector, Link Aggregation, WRR
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bt
Statuslampjes
Voeding, PoE, link/activiteit, fout
Uitbreiding / Aansluiting
Interfaces
1 x 1000Base-T RJ-45
4 x 1000Base-T RJ-45 UPOE - 72 W
1 x console RJ-45
2 x 1000Base-X SFP
4 x 1000Base-T RJ-45 UPOE - 72 W
1 x console RJ-45
2 x 1000Base-X SFP
Stroom
Vereiste netspanning
DC 48 - 56 V
Energieverbruik tijdens gebruik
6.6 Watt
Diversen
Conformiteitsnormen
IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30
Afmetingen & gewicht
Breedte
7.2 cm
Diepte
10.7 cm
Hoogte
15.2 cm
Gewicht
1.05 kg
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
85 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
