Productnummer: 3183454

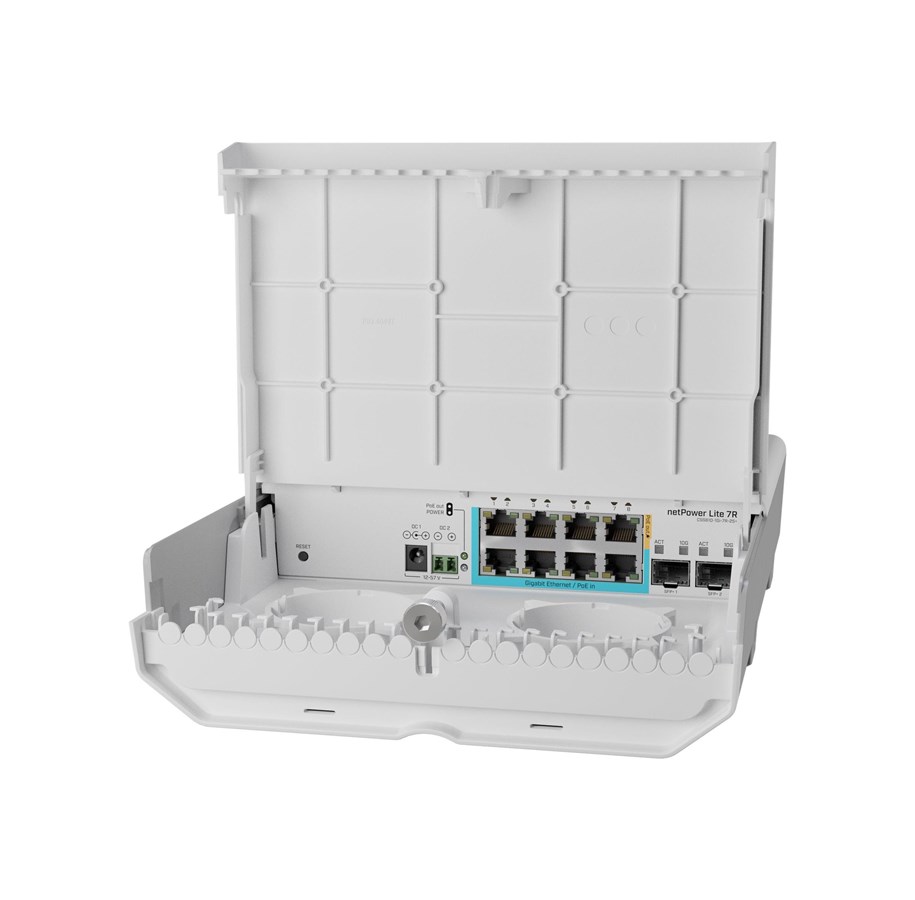

MikroTik CSS610-1GI-7R-2S+OUT netPower Lite 7R
Switch, 7 x 10/100/1000 (passive/reverse PoE) + 1 x 10/100/1000 (PoE-uitvoer) + 2 x 10 Gigabit SFP+, wandbevestiging, aan paal te bevestigen, op plafond te monteren, Reverse PoE, Gelijkstroom
123,04 €
101,69 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
Producent
Productnummer
3183454
Model
CSS610-1GI-7R-2S+OUT
EAN
4752224000033
Naar de website van de producent
Productbeschrijving
MikroTik netPower Lite 7R - switch - 8 poorten - op plafond te monteren
Type apparaat
Switch - 8 poorten
Type bijvoegsel
Op plafond te monteren
Subtype
Gigabit Ethernet
Poorten
7 x 10/100/1000 (passive/reverse PoE) + 1 x 10/100/1000 (PoE-uitvoer) + 2 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
Reverse PoE
Prestaties
Niet-blokkerende schakelverwerkingscapaciteit: 28 Gbps
Omschakelcapaciteit: 56 Gbps
Doorstuursnelheid: 41.7 Mpps
Omschakelcapaciteit: 56 Gbps
Doorstuursnelheid: 41.7 Mpps
Voorzieningen
Buitenbehuizing
Stroom
DC 12 - 57 V
Afmetingen (BxDxH)
30.4 cm x 21.2 cm x 7.1 cm
Algemeen
Type apparaat
Switch - 8 poorten
Type bijvoegsel
Op plafond te monteren, aan paal te bevestigen, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
7 x 10/100/1000 (passive/reverse PoE) + 1 x 10/100/1000 (PoE-uitvoer) + 2 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
Reverse PoE
Prestaties
Niet-blokkerende schakelverwerkingscapaciteit: 28 Gbps
Omschakelcapaciteit: 56 Gbps
Doorstuursnelheid: 41.7 Mpps
Omschakelcapaciteit: 56 Gbps
Doorstuursnelheid: 41.7 Mpps
Voorzieningen
Buitenbehuizing
Flashgeheugen
64 KB
Uitbreiding / Aansluiting
Interfaces
7 x 1000Base-T RJ-45 passive/reverse PoE
2 x 10Gbit LAN SFP+
1 x 1000Base-T RJ-45 PoE-uitvoer
2 x 10Gbit LAN SFP+
1 x 1000Base-T RJ-45 PoE-uitvoer
Stroom
Vereiste netspanning
DC 12 - 57 V
Diversen
MTBF (gemiddelde tijd tussen twee storingen)
200,000 uur
Conformiteitsnormen
RoHS, EAC, IP54
Software / Systeemvereisten
Software meegeleverd
MikroTik SwitchOS Lite
Afmetingen & gewicht
Breedte
30.4 cm
Diepte
21.2 cm
Hoogte
7.1 cm
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
70 °C
