Productnummer: 3448507

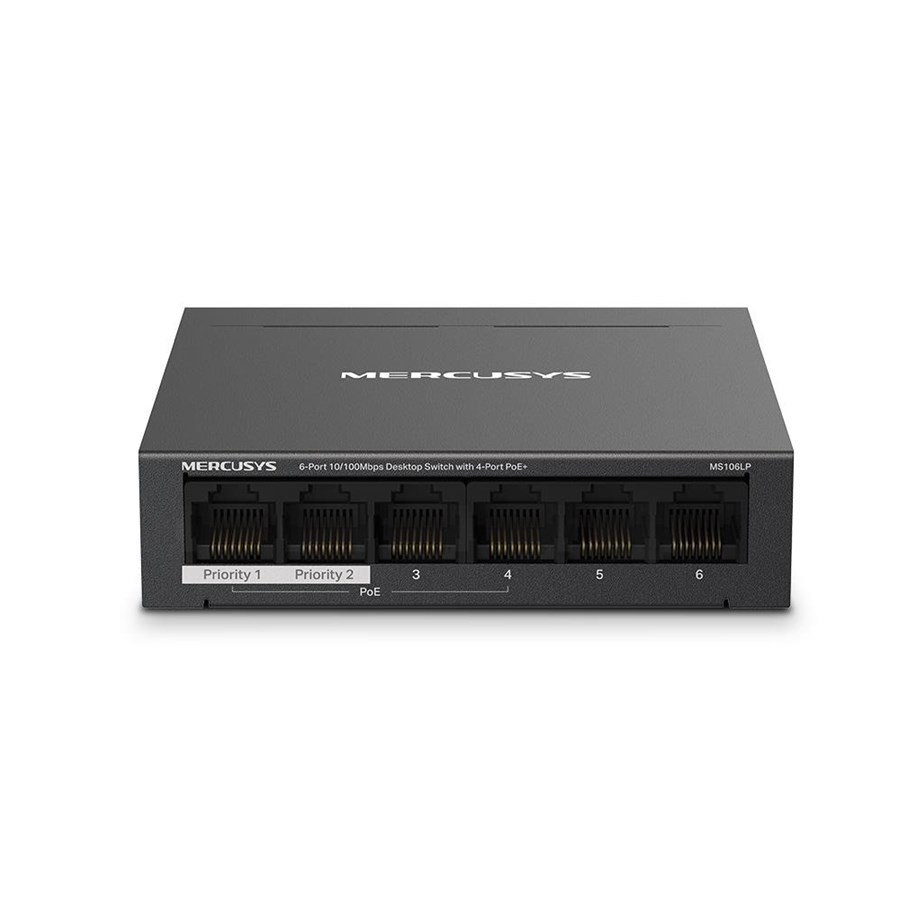

MERCUSYS MS106LP
Mercusys MS106LP netwerk-switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart
18,45 €
15,25 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 18 - 19 werkdagen levertijd
6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
4 PoE+ Ports (40 W Budget) for Network Deployment
Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
4 PoE+ Ports (40 W Budget) for Network Deployment
Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Producent
Productnummer
3448507
Model
MS106LP
EAN
6957939001148
Naar de website van de producent
Switch type
Managed
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
Traffic-classificatie
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
6
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support
Nee
Port mirroring
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Auto-negotiation
Ja
MAC-adrestabel
2000 entries
Rack-montage
Nee
Stapelbaar
Nee
Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Stroombron
AC/DC
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50 Hz
Stroomverbruik (typisch)
1,87 W
Vermogensverbruik (max)
44,8 W
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
4
Aantal Power over Ethernet plus (PoE +)-poorten
2
Vermogen per poort Power over Ethernet (PoE)
40 W
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
152,32 BTU/h
Breedte
99,8 mm
Diepte
98 mm
Hoogte
25 mm
Meegeleverde kabels
AC
Snelstartgids
Ja
Beheerfuncties
Switch type
Managed
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
Traffic-classificatie
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
6
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Netwerk
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support
Nee
Port mirroring
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Auto-negotiation
Ja
Data-uitwisseling
MAC-adrestabel
2000 entries
Design
Rack-montage
Nee
Stapelbaar
Nee
Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Energie
Stroombron
AC/DC
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50 Hz
Stroomverbruik (typisch)
1,87 W
Vermogensverbruik (max)
44,8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
4
Aantal Power over Ethernet plus (PoE +)-poorten
2
Vermogen per poort Power over Ethernet (PoE)
40 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
152,32 BTU/h
Gewicht en omvang
Breedte
99,8 mm
Diepte
98 mm
Hoogte
25 mm
Inhoud van de verpakking
Meegeleverde kabels
AC
Snelstartgids
Ja
