Productnummer: 3128571

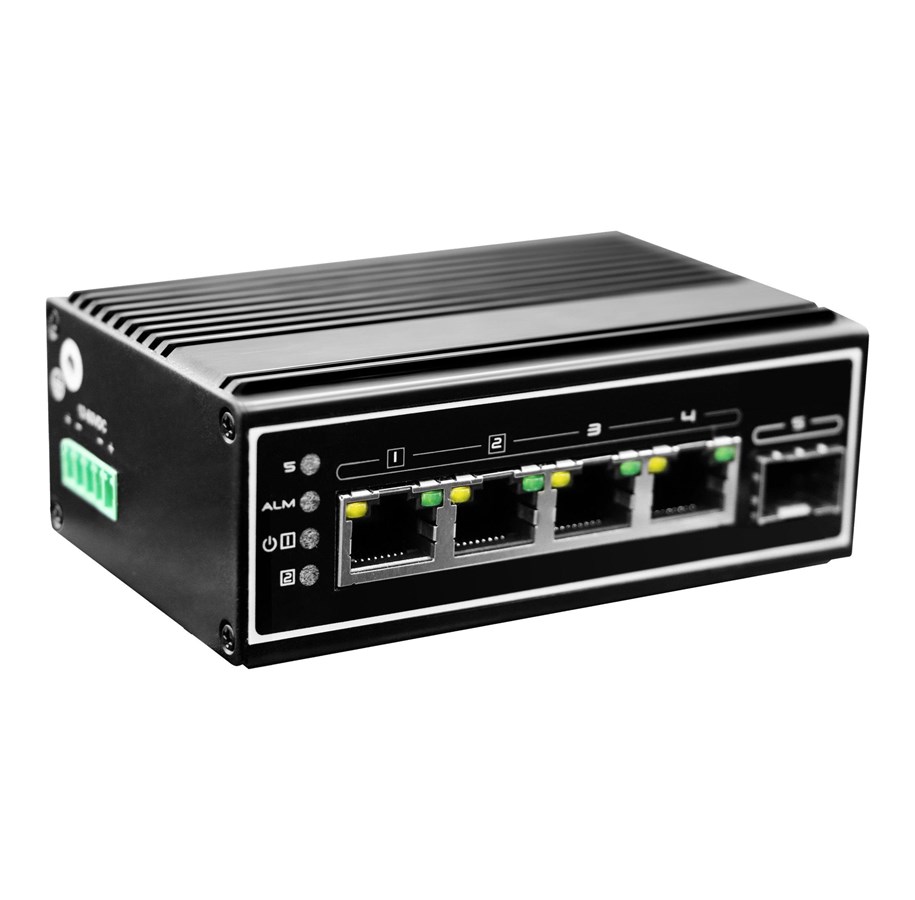

LevelOne IGP-0502 - Schakelaar -40°C Aan 75°C - 5 ports
Switch,,40°C to 75°C, 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP, desktop, monteerbaar op DIN-rails, wandbevestiging, PoE+ (120 W), DC power
113,38 €
93,70 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The IGP-0502 switch from Digital Data Communications offers performance and durability, suitable for a range of environments, with an operating temperature range of -40°C to 75°C. Designed for reliability, this switch features a fanless metal housing that ensures silent operation, ideal for noise-sensitive settings. With PoE+ capability and a total power budget of 120 W, it supports the power needs of connected devices, while the auto-uplink feature simplifies setup. This switch is compliant with multiple standards, such as IEEE 802.3, meeting demanding networking requirements efficiently.Equipped with 5 ports, including 4 PoE+ Gigabit Ethernet ports and 1 Gigabit SFP port, the IGP-0502 delivers flexible connectivity options. The integrated surge protection of up to 6 kV enhances safety, making it a reliable solution for industrial applications. With the ability to process packets at a forwarding rate of 14.88 Mpps, it maintains performance even under heavy loads. In addition, the switch supports jumbo frames of up to 9000 bytes, facilitating efficient data transfer for large packets, enhancing overall network throughput.
Producent
Productnummer
3128571
Model
IGP-0502
EAN
4015867228173
Naar de website van de producent
Productbeschrijving
LevelOne IGP-0502 - switch - -40°C to 75°C - 5 poorten
Type apparaat
Switch - 5 poorten
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
120 W
Prestaties
Grondplaatsnelheid: 10 Gbps
Pakketdoorstuursnelheid: 14.88 Mpps
Pakketdoorstuursnelheid: 14.88 Mpps
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9000 bytes
Voorzieningen
PSE, auto-uplink (auto MDI/MDI-X), volledige duplex modus, half duplex modus, 6KV stroompiek bescherming, metalen behuizing, zonder ventilator
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Stroom
DC 48 - 57 V
Afmetingen (BxDxH)
10.1 cm x 6.5 cm x 3.6 cm
Gewicht
350 g
Kleur
Zwart
Algemeen
Type apparaat
Switch - 5 poorten
Type bijvoegsel
Desktop, monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
120 W
Prestaties
Grondplaatsnelheid: 10 Gbps
Pakketdoorstuursnelheid: 14.88 Mpps
Pakketdoorstuursnelheid: 14.88 Mpps
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9000 bytes
Voorzieningen
PSE, auto-uplink (auto MDI/MDI-X), volledige duplex modus, half duplex modus, 6KV stroompiek bescherming, metalen behuizing, zonder ventilator
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Statuslampjes
Voeding, link/activiteit
Uitbreiding / Aansluiting
Interfaces
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x Gigabit LAN SFP
1 x Gigabit LAN SFP
Stroom
Vereiste netspanning
DC 48 - 57 V
Energieverbruik tijdens gebruik
5 Watt
Diversen
Kleur
Zwart
Conformiteitsnormen
IP30, FCC
Afmetingen & gewicht
Breedte
10.1 cm
Diepte
6.5 cm
Hoogte
3.6 cm
Gewicht
350 g
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
85 °C
