Productnummer: 3334457

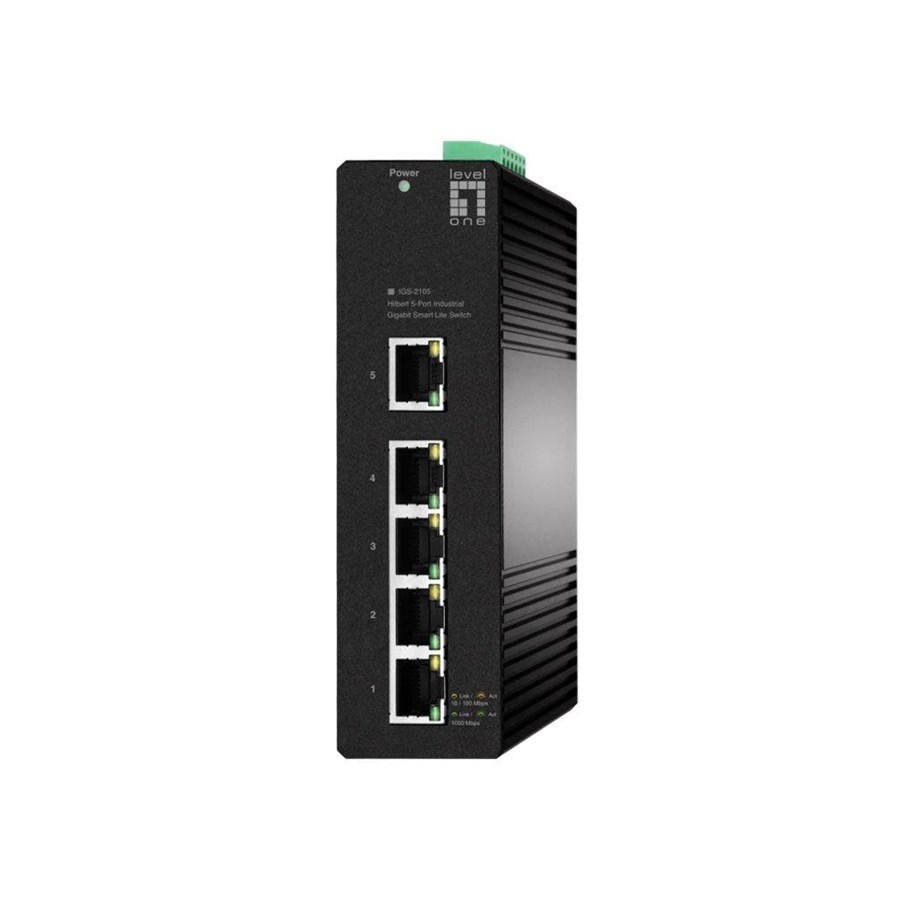

LevelOne Hilbert IGS-2105 - switch - industrial lite - 5 ports - Managed
Switch, industrial, lite, Beheerd, 4 x 10/100/1000 + 1 x 10/100/1000 (uplink), monteerbaar op DIN-rails
102,11 €
84,39 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The LevelOne Hilbert IGS-2105 switch offers robust performance tailored for industrial applications. With the capability to support 32 VLANs and 4 priority queues, it ensures efficient traffic management. Operating within a wide temperature range from -40°C to 75°C, the device is designed for demanding environments, proving its reliability in various conditions. The fanless design enhances durability while reducing noise levels, making it ideal for sensitive settings.This switch features comprehensive management options including IGMP snooping, port mirroring, and a web GUI management portal. It supports a packet forwarding rate of 7.44 million packets per second and has a switching capacity of 10 Gbps. With a built-in DIP switch and capabilities for rate limiting, storm control, and surge protection of up to 4 kV, the IGS-2105 provides security and performance. With a form factor that’s mountable on DIN rail, it integrates seamlessly into existing setups, making it a practical choice for networking professionals looking for reliable performance and management capabilities.
Producent
Productnummer
3334457
Model
IGS-2015
EAN
4015867236147
Naar de website van de producent
Productbeschrijving
LevelOne Hilbert IGS-2105 - switch - industrial, lite - 5 poorten - Beheerd
Type apparaat
Switch - 5 poorten - Beheerd
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 + 1 x 10/100/1000 (uplink)
Prestaties
Omschakelcapaciteit: 10 Gbps
Pakketdoorstuursnelheid: 7,44 Mpps
Pakketbuffergrootte: 1,5 Mbit
Pakketdoorstuursnelheid: 7,44 Mpps
Pakketbuffergrootte: 1,5 Mbit
Capaciteit
VLAN's ondersteund: 32
Voorkeurswachtrijen: 4
Voorkeurswachtrijen: 4
MAC-adrestabelgrootte
2K invoergegevens
Jumbo Frame-ondersteuning
9KB
Voorzieningen
Layer 2-omschakeling, IGMP-spionage, Link Aggregation, gespiegelde poorten, kabeltest, VLAN-ondersteuning, QoS, tarieflimiet, Storm Control, beheerportaal webgebruikersoppervlak, zonder ventilator, ingebouwde DIP-schakeling, 4KV stroompiek bescherming, 6 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading), broadcastmodus, multicastmodus, unicast-modus
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w
Stroom
DC 12 - 57 V
Afmetingen (BxDxH)
3.85 cm x 10.8 cm x 13.6 cm
Gewicht
350 g
Kleur
Zwart
Algemeen
Type apparaat
Switch - 5 poorten - Beheerd
Type bijvoegsel
Monteerbaar op DIN-rails
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 + 1 x 10/100/1000 (uplink)
Prestaties
Omschakelcapaciteit: 10 Gbps
Pakketdoorstuursnelheid: 7,44 Mpps
Pakketbuffergrootte: 1,5 Mbit
Pakketdoorstuursnelheid: 7,44 Mpps
Pakketbuffergrootte: 1,5 Mbit
Capaciteit
VLAN's ondersteund: 32
Voorkeurswachtrijen: 4
Voorkeurswachtrijen: 4
MAC-adrestabelgrootte
2K invoergegevens
Jumbo Frame-ondersteuning
9KB
Voorzieningen
Layer 2-omschakeling, IGMP-spionage, Link Aggregation, gespiegelde poorten, kabeltest, VLAN-ondersteuning, QoS, tarieflimiet, Storm Control, beheerportaal webgebruikersoppervlak, zonder ventilator, ingebouwde DIP-schakeling, 4KV stroompiek bescherming, 6 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading), broadcastmodus, multicastmodus, unicast-modus
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w
Flashgeheugen
2 MB
Statuslampjes
Voeding, link/activiteit
Uitbreiding / Aansluiting
Interfaces
4 x 1000Base-T RJ-45 downlink
1 x 1000Base-T RJ-45 uplink
1 x 1000Base-T RJ-45 uplink
Stroom
Voeding
Externe stroomadapter
Max. aantal ondersteund
2
Vereiste netspanning
DC 12 - 57 V
Energieverbruik tijdens gebruik
5 Watt
Diversen
Kleur
Zwart
Meegeleverde accessoires
Stroomverdelingsblok, DIN-rail bevestigingskit
MTBF (gemiddelde tijd tussen twee storingen)
43,800 uur
Conformiteitsnormen
UKCA, FCC Part 15 B Class B., RoHS, IP30
Afmetingen & gewicht
Breedte
3.85 cm
Diepte
10.8 cm
Hoogte
13.6 cm
Gewicht
350 g
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% RH (non-condensing)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
85 °C
Luchtvochtigheidsgraad bij opslaan
5 - 95% RH (non-condensing)
