Productnummer: 2688677

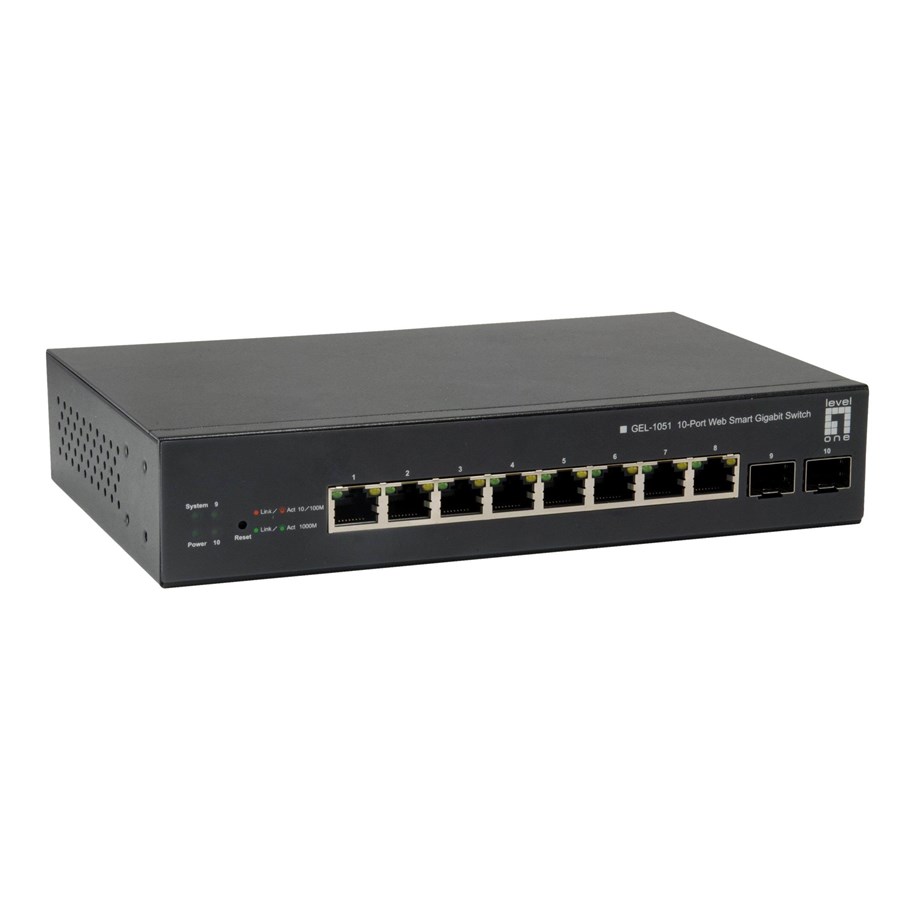

LevelOne GEP-1051 - switch - 10 ports - smart - rack-mountable
Switch, intelligent, 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP, desktop, rack-uitvoering, PoE+ (70 W)
259,55 €
214,50 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The Digital Data Communications LevelOne GEP-1051 is a versatile Gigabit Ethernet switch designed for high-performance networking. With a capacity of 256 priority queues per port and 8 ACL entries, it efficiently handles extensive data traffic for various applications. The switch operates within a temperature range of 0 °C to 50 °C, making it suitable for diverse environments. Its installation is straightforward thanks to the included rack mounting kit, while the fanless design contributes to silent operation and energy-efficient performance. Equipped with dual Gigabit LAN interfaces and eight PoE+ ports, each delivering up to 30 W, this switch supports seamless device integration without the hassle of additional power supplies. Robust remote management is facilitated via multiple protocols, including SNMP, Telnet, and SSH, ensuring efficient monitoring and configuration. Security features such as 802.1x authentication and DDoS attack prevention provide peace of mind in maintaining a secure network infrastructure.
Producent
Productnummer
2688677
Model
GEP-1051
EAN
4015867205013
Naar de website van de producent
Productbeschrijving
LevelOne GEP-1051 - switch - 10 poorten - intelligent - rack-uitvoering
Type apparaat
Switch - 10 poorten - intelligent
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
70 W
Prestaties
Grondplaatsnelheid: 20 Gbps
Doorzendsnelheid: 14.9 Mpps
Doorzendsnelheid: 14.9 Mpps
Capaciteit
ACL-invoergegevens: 256
Prioriteitwachtrijen per poort: 8
Prioriteitwachtrijen per poort: 8
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, NTP
Voorzieningen
Datatransport, VLAN-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, opslaan en verder, MAC adresfiltering, IPv6-ondersteuning, DDos aanvalspreventie, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, DHCP-spionage, QoS, MLD spionage, DAI, reset-knop, IPv4-ondersteuning, zonder ventilator, LLDP ondersteuning, LACP, SNMP trap, DHCP client, MIB, SPQ, NDP, poortisolatie, ondersteuning DSCP, IGMP filtering, IGMP throttling, 4,1 MB pakketbuffer, Storm Control, CPU-beveiliging, AAA, IGMP-querier, Root Guard, EEE, WRR, lusdetectie, IPv6-beheer, VLAN Tagging, IGMP onmiddellijk vertrek
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UPnP
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
29.4 cm x 18 cm x 4.4 cm
Gewicht
2 kg
Algemeen
Type apparaat
Switch - 10 poorten - intelligent
Type bijvoegsel
Desktop, rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
70 W
Prestaties
Grondplaatsnelheid: 20 Gbps
Doorzendsnelheid: 14.9 Mpps
Doorzendsnelheid: 14.9 Mpps
Capaciteit
ACL-invoergegevens: 256
Prioriteitwachtrijen per poort: 8
Prioriteitwachtrijen per poort: 8
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
10KB
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, NTP
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
Datatransport, VLAN-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, opslaan en verder, MAC adresfiltering, IPv6-ondersteuning, DDos aanvalspreventie, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, DHCP-spionage, QoS, MLD spionage, DAI, reset-knop, IPv4-ondersteuning, zonder ventilator, LLDP ondersteuning, LACP, SNMP trap, DHCP client, MIB, SPQ, NDP, poortisolatie, ondersteuning DSCP, IGMP filtering, IGMP throttling, 4,1 MB pakketbuffer, Storm Control, CPU-beveiliging, AAA, IGMP-querier, Root Guard, EEE, WRR, lusdetectie, IPv6-beheer, VLAN Tagging, IGMP onmiddellijk vertrek
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UPnP
Flashgeheugen
16 MB
Statuslampjes
Voeding, systeem, link/activiteit
Uitbreiding / Aansluiting
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W
2 x Gigabit LAN SFP
2 x Gigabit LAN SFP
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
80 Watt
Diversen
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
118,824 uur
Conformiteitsnormen
UL, VCCI, BSMI, FCC
Afmetingen & gewicht
Breedte
29.4 cm
Diepte
18 cm
Hoogte
4.4 cm
Gewicht
2 kg
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
