Productnummer: 2924446

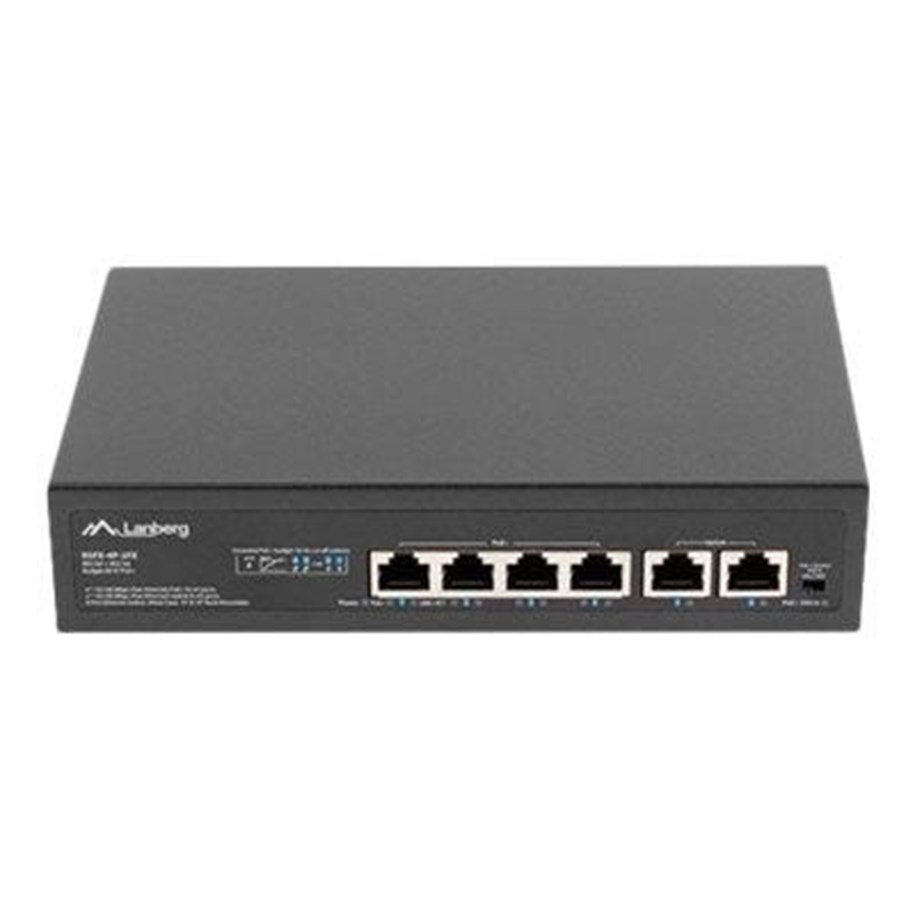

Lanberg RSFE-4P-2FE-60 - Schakelaar - 6 ports - unmanaged
Switch, onbeheerd, 2 x 10/100 (uplink) + 4 x 10/100 (PoE+), desktop, wandbevestiging, PoE+ (60 W)
23,17 €
19,15 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 7 - 8 werkdagen levertijd
The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-4P-2FE-60 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.
Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time.
As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time.
As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Producent
Productnummer
2924446
Model
RSFE-4P-2FE-60
EAN
5901969428797
Naar de website van de producent
Productbeschrijving
Lanberg RSFE-4P-2FE-60 - switch - 6 poorten - onbeheerd
Type apparaat
Switch - 6 poorten - onbeheerd
Type bijvoegsel
1U
Subtype
Fast Ethernet
Poorten
2 x 10/100 (uplink) + 4 x 10/100 (PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
60 W
Prestaties
Schakelbandbreedte: 1,2 Gbps
MAC-adrestabelgrootte
1K invoergegevens
Voorzieningen
4KV ESD Protector, datatransport
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
20 cm x 11.8 cm x 4.445 cm
Gewicht
730 g
Algemeen
Type apparaat
Switch - 6 poorten - onbeheerd
Type bijvoegsel
Desktop, wandbevestiging 1U
Subtype
Fast Ethernet
Poorten
2 x 10/100 (uplink) + 4 x 10/100 (PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
60 W
Prestaties
Schakelbandbreedte: 1,2 Gbps
MAC-adrestabelgrootte
1K invoergegevens
Voorzieningen
4KV ESD Protector, datatransport
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Uitbreiding / Aansluiting
Interfaces
4 x 100Base-TX RJ-45 PoE+ - 30 W
2 x 100Base-TX RJ-45 uplink
2 x 100Base-TX RJ-45 uplink
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
65 watt
Diversen
Rackmontagekit
Inclusief
Conformiteitsnormen
RoHS, IP20
Afmetingen & gewicht
Breedte
20 cm
Diepte
11.8 cm
Hoogte
4.445 cm
Gewicht
730 g
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
