Productnummer: 3064703

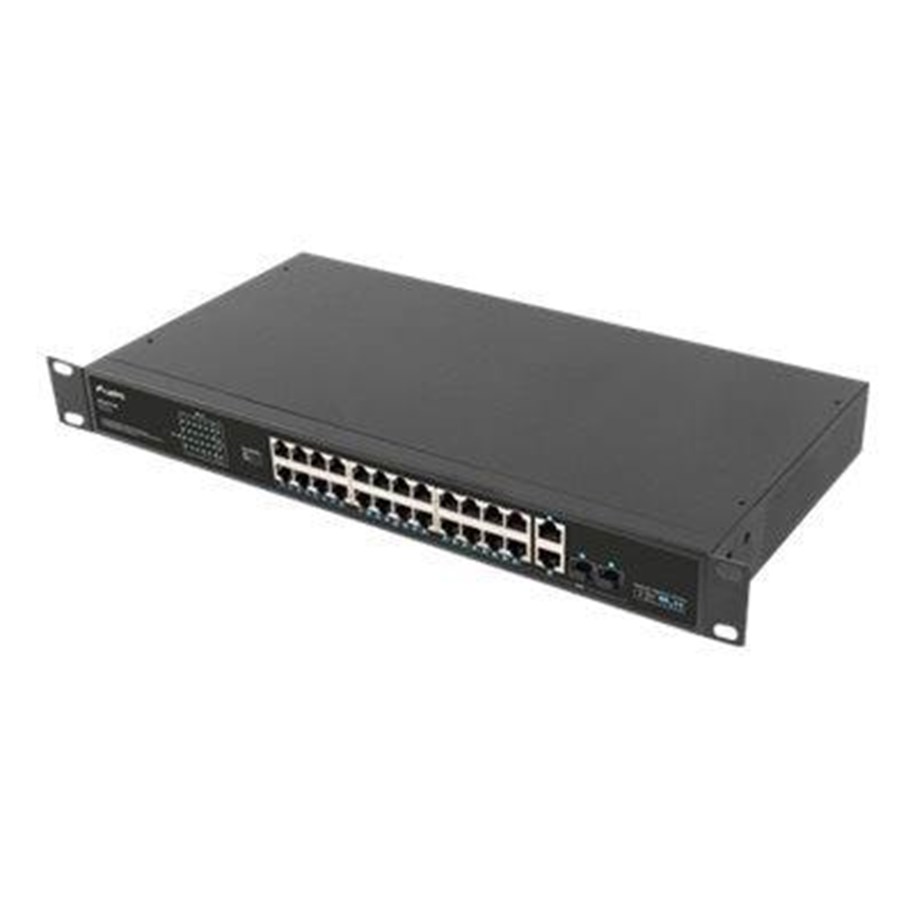

Lanberg RSFE-24P-2C-360 - switch - 24 ports - unmanaged - rack-mountable
Switch, onbeheerd, 24 x 10/100 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 1000Base-LX/SX, rack-uitvoering, PoE+ (360 W)
166,81 €
137,86 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-24P-2C-360 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 360 W. All of this is combined with data transmission at the same time.As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Producent
Productnummer
3064703
Model
RSFE-24P-2C-360
EAN
5901969429329
Naar de website van de producent
Productbeschrijving
Lanberg RSFE-24P-2C-360 - switch - 24 poorten - onbeheerd - rack-uitvoering
Type apparaat
Switch - 24 poorten - onbeheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Fast Ethernet
Poorten
24 x 10/100 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 1000Base-LX/SX
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
360 W
Prestaties
Schakelbandbreedte: 8,8 Gbps
MAC-adrestabelgrootte
16K invoergegevens
Voorzieningen
Metalen behuizing, 4Mbit packet buffer, zonder ventilator, VLAN-ondersteuning, 6KV ESD Protector
Conformiteitsnormen
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Stroom
100-240 Volt wisselstroom V
Afmetingen (BxDxH)
44 cm x 20.7 cm x 4.4 cm
Gewicht
2.45 kg
Algemeen
Type apparaat
Switch - 24 poorten - onbeheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Fast Ethernet
Poorten
24 x 10/100 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 1000Base-LX/SX
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
360 W
Prestaties
Schakelbandbreedte: 8,8 Gbps
MAC-adrestabelgrootte
16K invoergegevens
Voorzieningen
Metalen behuizing, 4Mbit packet buffer, zonder ventilator, VLAN-ondersteuning, 6KV ESD Protector
Conformiteitsnormen
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Statuslampjes
Status
Uitbreiding / Aansluiting
Interfaces
24 x Fast Ethernet RJ-45 PoE+ - 30 W
2 x 100/1000 SFP
2 x 1000Base-LX/SX
2 x 100/1000 SFP
2 x 1000Base-LX/SX
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V
Energieverbruik tijdens gebruik
370 watt
Diversen
Rackmontagekit
Inclusief
Conformiteitsnormen
IP20
Afmetingen & gewicht
Breedte
44 cm
Diepte
20.7 cm
Hoogte
4.4 cm
Gewicht
2.45 kg
Omgevingsparameters
Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
0 - 80%
