Productnummer: 3476280

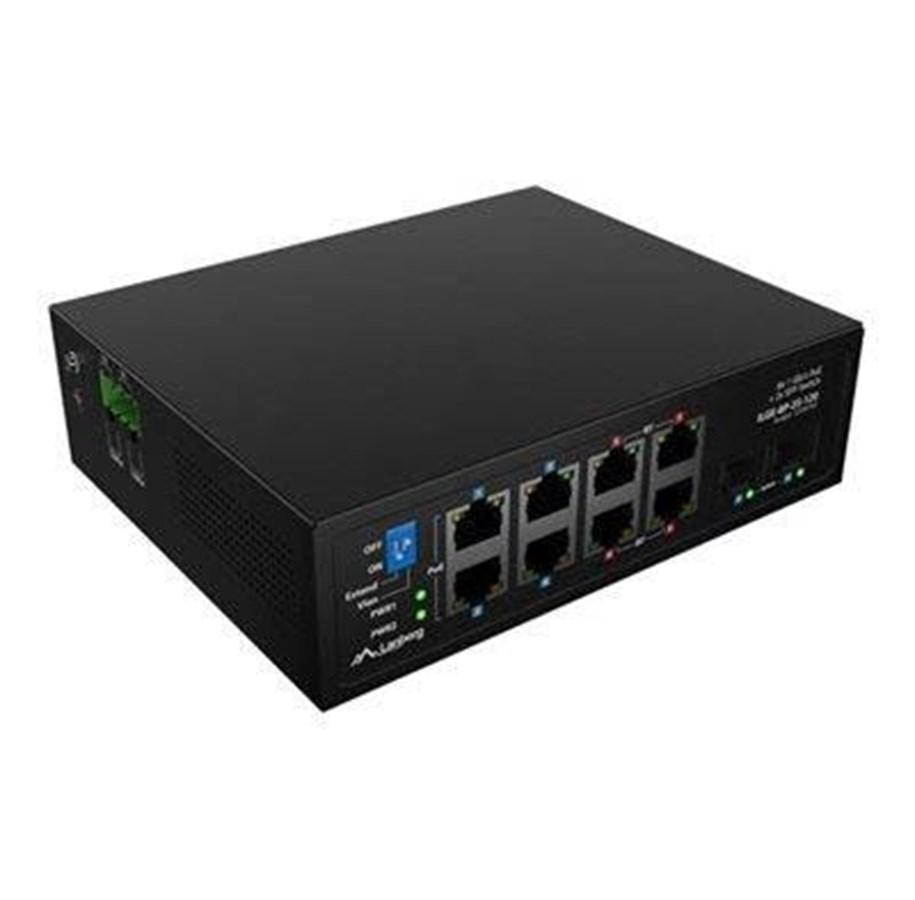

Lanberg ILGE-8P-2S-120 - switch - 8 ports - unmanaged - rack-mountable
Switch, onbeheerd, 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP, monteerbaar op DIN-rails, rack-uitvoering, PoE++ (120 W)
92,01 €
76,04 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
The Lanberg ILGE-8P-2S-120 is a versatile Gigabit Ethernet switch designed for reliable and efficient networking. With eight ports providing Power over Ethernet (PoE++) capabilities and a total PoE budget of 120 W, this switch is ideal for powering a variety of devices. The switch supports both passive cooling and 6 kV surge protection, ensuring durability in challenging environments, while the auto-uplink feature simplifies connectivity with auto MDI/MDI-X. The compact design is suitable for both DIN rail and rack mounting, making it a flexible solution for diverse installations.Operating in a wide temperature range from -25°C to 65°C and humidity levels from 10% to 90%, the ILGE-8P-2S-120 is built to perform in various conditions. Its 20 Gbps bandwidth allows effective data transfer, while the MAC address table size of 4K entries accommodates network scalability. With compliance to multiple IEEE standards, including IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt, this switch meets standard networking requirements.
Producent
Productnummer
3476280
Model
ILGE-8P-2S-120
EAN
5901969447385
Naar de website van de producent
Productbeschrijving
Lanberg ILGE-8P-2S-120 - switch - 8 poorten - onbeheerd - rack-uitvoering
Type apparaat
Switch - 8 poorten - onbeheerd
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
120 W
Prestaties
Bandbreedte: 20 Gbps
MAC-adrestabelgrootte
4K invoergegevens
Voorzieningen
Passieve koeling, 6KV stroompiek bescherming, datatransport, auto-uplink (auto MDI/MDI-X), uitbreidingsmodus, MAC-adres automatisch leren, VLAN-ondersteuning, metalen behuizing, opslaan en verder
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Stroom
DC 48 - 56 V
Afmetingen (BxDxH)
12.4 cm x 15.2 cm x 4.4 cm
Gewicht
530 g
Algemeen
Type apparaat
Switch - 8 poorten - onbeheerd
Type bijvoegsel
Monteerbaar op DIN-rails, rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE++
PoE-budget
120 W
Prestaties
Bandbreedte: 20 Gbps
MAC-adrestabelgrootte
4K invoergegevens
Voorzieningen
Passieve koeling, 6KV stroompiek bescherming, datatransport, auto-uplink (auto MDI/MDI-X), uitbreidingsmodus, MAC-adres automatisch leren, VLAN-ondersteuning, metalen behuizing, opslaan en verder
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Statuslampjes
Link/activiteit, voeding 1, voeding 2, uplink
Uitbreiding / Aansluiting
Interfaces
4 x 1000Base-T RJ-45 PoE+
4 x 1000Base-T RJ-45 PoE++
2 x 1000Base-X SFP uplink
4 x 1000Base-T RJ-45 PoE++
2 x 1000Base-X SFP uplink
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
DC 48 - 56 V
Diversen
Conformiteitsnormen
Plug and Play
Afmetingen & gewicht
Breedte
12.4 cm
Diepte
15.2 cm
Hoogte
4.4 cm
Gewicht
530 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-25 °C
Max. gebruikstemperatuur
65 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90%
