Productnummer: 2924525

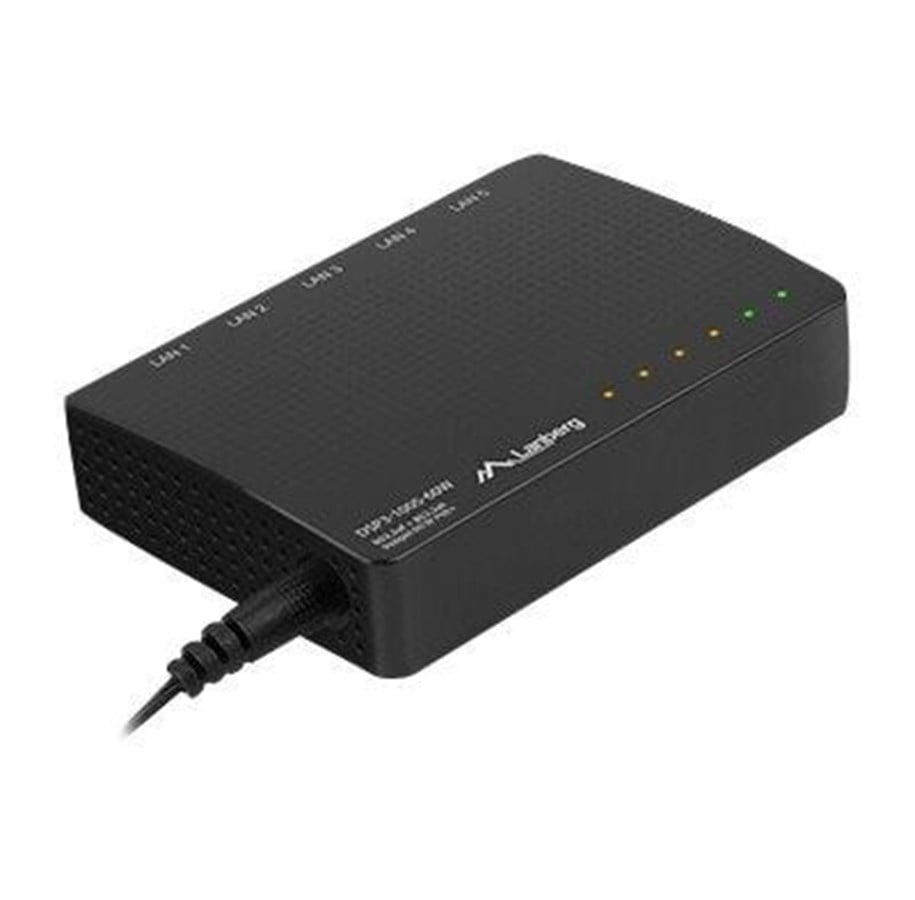

Lanberg DSP3-1005 - Schakelaar - 5 ports - unmanaged

Switch, onbeheerd, 5 x 10/100/1000 (4 PoE+), desktop, wandbevestiging, PoE+ (60 W)

29,71 € 24,55 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd

Lanberg DSP3-1005-60W is an unmanaged, compact, desktop PoE+ switch with 5 Gigabit Ethernet ports, including 4 PoE ports with a 60W PoE budget for powered end-devices. This convenient active networking product operates using Plug-and-Play technology. DSP3-1005-60W provides switching support for 5 RJ-45 10/100/1000 Mbps ports with automatic connection negotiation and MDI-MDIX support.DSP3 is characterized by the use of an external power adapter enabling the switch to operate in PoE/PoE+ mode compatible with IEEE 802.3af and IEEE 802.3at standards. This Lanberg's switch model is ideally suited for home use because of its compact size (just like the DSP2 version) and silent, passive cooling. The black color scheme and the elegant slim case makes the device fit into almost any room. The device is suitable for office applications, including SOHO and SMEs. Without a doubt, this switch can also be used for IP, CCTV surveillance, alarm and security systems, and IT environments. Performance-wise, the product meets the user-requirements of this segment.

Producent
Productnummer
2924525
Model
DSP3-1005-60W
EAN
5901969427790
Naar de website van de producent
Productbeschrijving
Lanberg DSP3-1005 - switch - 5 poorten - onbeheerd
Type apparaat
Switch - 5 poorten - onbeheerd
Subtype
Gigabit Ethernet
Poorten
5 x 10/100/1000 (4 PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
60 W
Prestaties
Schakelbandbreedte: 10 Gbps
MAC-adrestabelgrootte
2K invoergegevens
Voorzieningen
Plastic behuizing, zonder ventilator, weerbestendig, datatransport, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), half duplex modus, volledige duplex modus, aan de muur bevestigbaar, Back Pressure Support, mac-adres leren, mac-adresveroudering
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
9.3 cm x 6.57 cm x 2.23 cm

Algemeen

Type apparaat
Switch - 5 poorten - onbeheerd
Type bijvoegsel
Desktop, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
5 x 10/100/1000 (4 PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
60 W
Prestaties
Schakelbandbreedte: 10 Gbps
MAC-adrestabelgrootte
2K invoergegevens
Voorzieningen
Plastic behuizing, zonder ventilator, weerbestendig, datatransport, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), half duplex modus, volledige duplex modus, aan de muur bevestigbaar, Back Pressure Support, mac-adres leren, mac-adresveroudering
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Statuslampjes
Voeding, link/activiteit, PoE

Uitbreiding / Aansluiting

Interfaces
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x 1000Base-T RJ-45

Stroom

Voeding
Externe stroomadapter
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
65 watt

Diversen

Conformiteitsnormen
Plug and Play, RoHS, WEEE

Afmetingen & gewicht

Breedte
9.3 cm
Diepte
6.57 cm
Hoogte
2.23 cm

Omgevingsparameters

Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
70 °C
Luchtvochtigheidsgraad bij gebruik
0 - 85%
