Productnummer: 2864956
Lanberg DSP2-1008-12V 8-Port Gigabit Ethernet Unmanaged Switch
Switch, onbeheerd, 8 x 10/100/1000, desktop, wandbevestiging, 100, 240 V wisselstroom
20,49 €
16,93 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

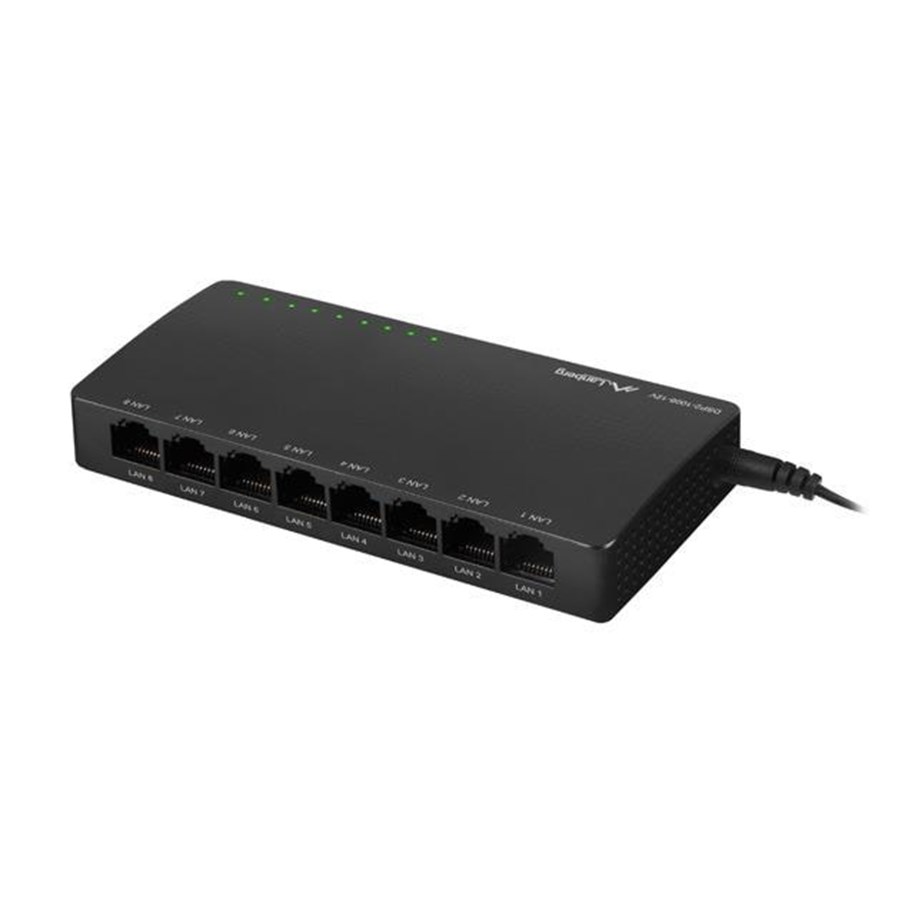

Lanberg DSP2-1008 is a compact, unmanaged desktop switch equipped with eight Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug-and-Play operation principles. Product provides switching functions for eight 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI/MDI-X support.
The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.
The switch is an ideal solution for domestic use due to its modest size and silent passive cooling. Moreover, the device is suitable for office applications, including SOHO and SMB. The Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.
Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.
The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.
The switch is an ideal solution for domestic use due to its modest size and silent passive cooling. Moreover, the device is suitable for office applications, including SOHO and SMB. The Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.
Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.
Producent
Productnummer
2864956
Model
DSP2-1008-12V
EAN
5901969424171
Naar de website van de producent
Productbeschrijving
Lanberg DSP2-1008-12V - switch - 8 poorten - onbeheerd
Type apparaat
Switch - 8 poorten - onbeheerd
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000
Prestaties
Schakelbandbreedte: 16 Gbps
MAC-adrestabelgrootte
4K invoergegevens
Voorzieningen
Datatransport, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), opslaan en verder, half duplex modus, volledige duplex modus, aan de muur bevestigbaar, plastic behuizing, Back Pressure Support, ondersteuning voor passieve PoE, mac-adres leren, mac-adresveroudering
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Stroom
100 - 240 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
13.7 cm x 8.9 cm x 2.8 cm
Gewicht
240 g
Algemeen
Type apparaat
Switch - 8 poorten - onbeheerd
Type bijvoegsel
Desktop, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000
Prestaties
Schakelbandbreedte: 16 Gbps
MAC-adrestabelgrootte
4K invoergegevens
Voorzieningen
Datatransport, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), opslaan en verder, half duplex modus, volledige duplex modus, aan de muur bevestigbaar, plastic behuizing, Back Pressure Support, ondersteuning voor passieve PoE, mac-adres leren, mac-adresveroudering
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Processor
1 x Realtek Semiconductor RTL8370N-VB
Statuslampjes
Voeding, link/activiteit
Uitbreiding / Aansluiting
Interfaces
8 x 1000Base-T RJ-45
Stroom
Voeding
Externe stroomadapter
Geleverde energie
12 V - 0.5 A
Vereiste netspanning
100 - 240 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
4.53 watt
Diversen
Conformiteitsnormen
Plug and Play, RoHS, WEEE
Afmetingen & gewicht
Breedte
13.7 cm
Diepte
8.9 cm
Hoogte
2.8 cm
Gewicht
240 g
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 85%
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
