Productnummer: 2846376

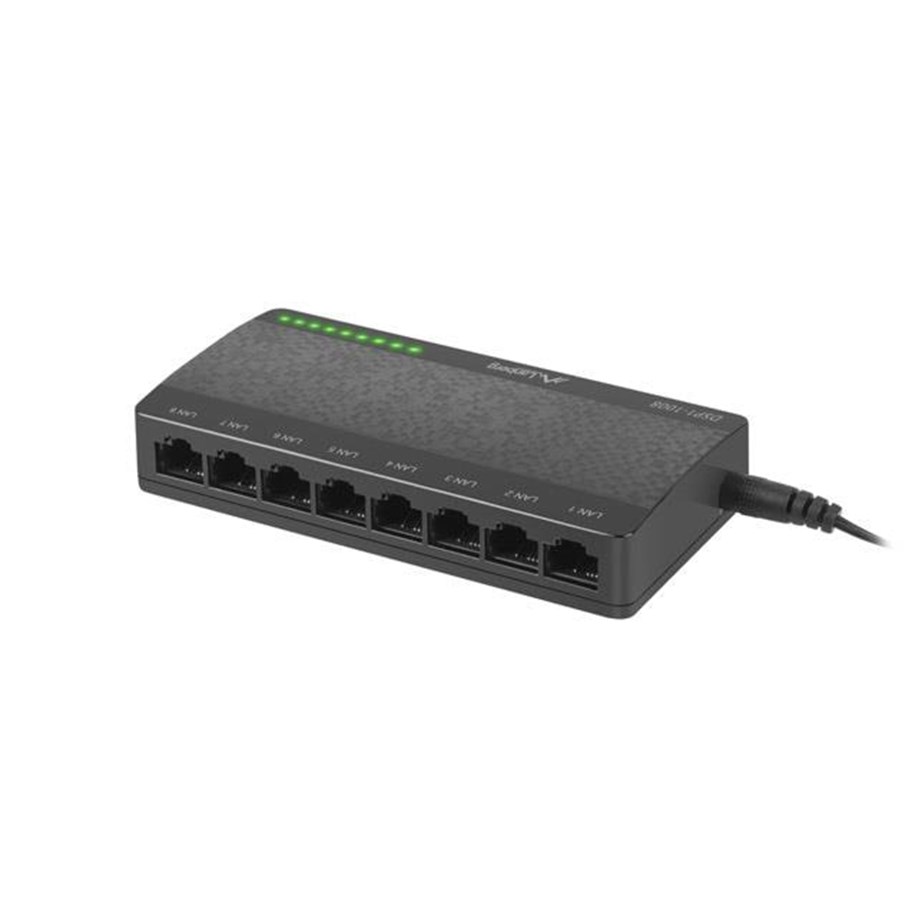

Lanberg DSP1-1008 - Schakelaar - 8 ports - unmanaged

Switch, onbeheerd, 8 x 10/100/1000, desktop

15,29 € 12,64 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 7 - 8 werkdagen levertijd

Lanberg DSP1-1008 is a compact, unmanaged desktop switch equipped with 8x Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug & Play operation principles. Product provides switching functions for 8x 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI-MDIX support.Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The switch supports Half-Duplex and Full-Duplex mode for inter-device connections. Flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.

Producent
Productnummer
2846376
Model
DSP1-1008
EAN
5901969415704
Naar de website van de producent
Productbeschrijving
Lanberg DSP1-1008 - switch - 8 poorten - onbeheerd
Type apparaat
Switch - 8 poorten - onbeheerd
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000
Prestaties
Schakelbandbreedte: 16 Gbps
MAC-adrestabelgrootte
4K invoergegevens
Voorzieningen
Datatransport, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), opslaan en verder, aan de muur bevestigbaar, plastic behuizing
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
12.4 cm x 5.9 cm x 2.3 cm
Gewicht
150 g

Algemeen

Type apparaat
Switch - 8 poorten - onbeheerd
Type bijvoegsel
Desktop
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000
Prestaties
Schakelbandbreedte: 16 Gbps
MAC-adrestabelgrootte
4K invoergegevens
Voorzieningen
Datatransport, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), opslaan en verder, aan de muur bevestigbaar, plastic behuizing
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Processor
1 x Realtek Semiconductor RTL8370N-VB

Uitbreiding / Aansluiting

Interfaces
8 x 1000Base-T RJ-45

Stroom

Voeding
Externe stroomadapter
Geleverde energie
5 V - 1 A
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
2.15 watt

Diversen

Conformiteitsnormen
Plug and Play

Afmetingen & gewicht

Breedte
12.4 cm
Diepte
5.9 cm
Hoogte
2.3 cm
Gewicht
150 g

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Min. opslagtemperatuur
0 °C
Max. opslagtemperatuur
40 °C

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
