Productnummer: 3208997

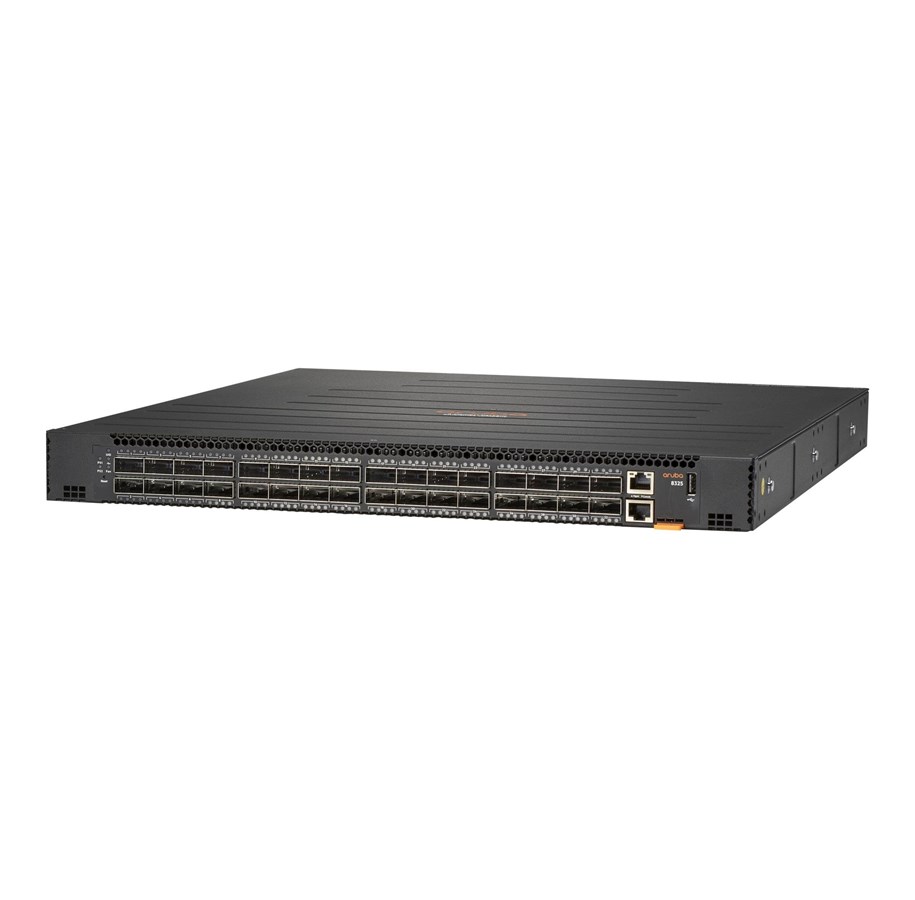

Hewlett Packard Enterprise HPE Aruba 8325-32C

Switch, L3, Beheerd, 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+, luchtstroom van achterkant naar voorkant, rack-uitvoering, TAA Compliant

52.132,86 € 43.085,01 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 11 - 12 werkdagen levertijd

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud, and IoT era. The HPE CX 8325 Switch Series is based on HPE ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in HPE ArubaOS-CX are its microservices style modular architecture, REST APIs, Python scripting capabilities and the HPE Aruba Network Analytics Engine. The HPE CX 8325 Switch Series provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor. The HPE CX 8325P, part of the HPE Aruba Networking CX 8325 Switch family, delivers key solutions for providers in their 5G (Radio Access Network) and edge computing deployments.

Productnummer
3208997
Model
JL627A#B2C
EAN
0190017328683
Naar de website van de producent
Switch type
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
0
Type basis-switching RJ-45 Ethernet-poorten
Nee
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal geïnstalleerde QSFP+ modules
32
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
10G support
Ja
Port mirroring
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
MAC-adrestabel
98304 entries
Switchingcapaciteit
6400 Gbit/s
Ondersteunde data-overdrachtsnelheden
40/100 Gbps
Throughput
1905 Mpps
Max. overdrachtssnelheid
100 Gbit/s
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
32 MB
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Authenticatie type
RADIUS
Multicast-ondersteuning
Ja
Multicast MAC adrestabel
98304 entries
IPv4-multicast-vermeldingen
4094
IPv6-multicast-vermeldingen
4094
MLD-vermeldingen
4094
Rack-montage
Ja
Stapelbaar
Ja
Vormfactor
1U
Kleur van het product
Zwart
Aantal ventilatoren
6 ventilator(en)
Type processor
Ja
Frequentie van processor
2200 MHz
Intern geheugen
16384 MB
Flash memory
8192 MB
Vermogenstoevoer inclusief
Ja
Redundante voeding
Ja
Aantal voedingen
2
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
550 W
Power over Ethernet (PoE)
Nee
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Breedte
438,4 mm
Diepte
515,1 mm
Hoogte
43,2 mm
Gewicht
9,5 kg

Beheerfuncties

Switch type
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
0
Type basis-switching RJ-45 Ethernet-poorten
Nee
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal geïnstalleerde QSFP+ modules
32

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
10G support
Ja
Port mirroring
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

MAC-adrestabel
98304 entries
Switchingcapaciteit
6400 Gbit/s
Ondersteunde data-overdrachtsnelheden
40/100 Gbps
Throughput
1905 Mpps
Max. overdrachtssnelheid
100 Gbit/s
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
32 MB

Beveiliging

DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Authenticatie type
RADIUS

Multicast-functies

Multicast-ondersteuning
Ja
Multicast MAC adrestabel
98304 entries
IPv4-multicast-vermeldingen
4094
IPv6-multicast-vermeldingen
4094
MLD-vermeldingen
4094

Design

Rack-montage
Ja
Stapelbaar
Ja
Vormfactor
1U
Kleur van het product
Zwart
Aantal ventilatoren
6 ventilator(en)

Prestatie

Type processor
Ja
Frequentie van processor
2200 MHz
Intern geheugen
16384 MB
Flash memory
8192 MB

Energie

Vermogenstoevoer inclusief
Ja
Redundante voeding
Ja
Aantal voedingen
2
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
550 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
438,4 mm
Diepte
515,1 mm
Hoogte
43,2 mm
Gewicht
9,5 kg
