Productnummer: 2865441

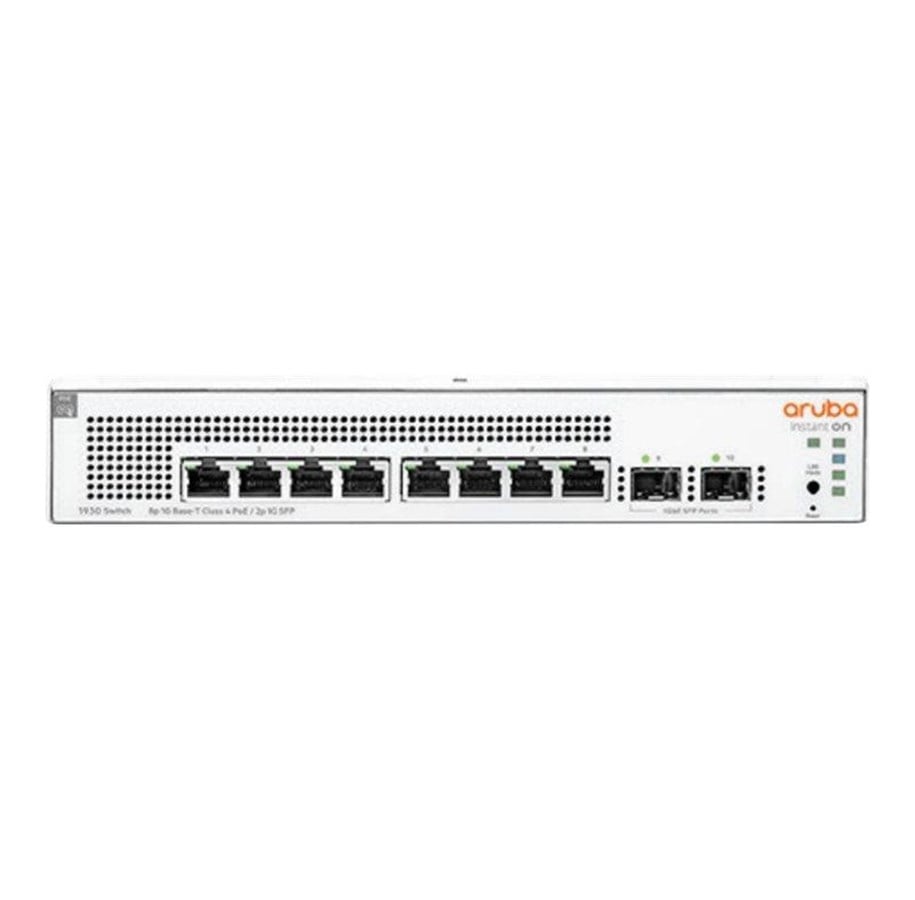

Hewlett Packard Enterprise Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch
Switch, L3, Beheerd, 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP, rack-uitvoering, PoE (124 W)
232,68 €
192,30 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
De Aruba Instant On 1930 switch serie is ontworpen voor kleine en groeiende bedrijven die behoefte hebben aan verbeterde prestaties om bandbreedte veeleisende toepassingen te ondersteunen. De Aruba Instant On 1930 switch serie integreert naadloos met bestaande indoor/outdoor access points en kan centraal beheerd worden met de Instant On mobiele app op locatie of op afstand.
Producent
Productnummer
2865441
Model
JL681A#ABB
EAN
190017355238
Naar de website van de producent
Productbeschrijving
HPE Networking Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 10 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 10 poorten - L3 - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
PoE-budget
124 W
Prestaties
Omschakelcapaciteit: 20 Gbps
Verwerkingscapaciteit: 14.88 Mpps
Vertraging (100 Mbps): 5.2 µs
Latentie (1 Gbps): 3 µs
Verwerkingscapaciteit: 14.88 Mpps
Vertraging (100 Mbps): 5.2 µs
Latentie (1 Gbps): 3 µs
Capaciteit
Poorten koppelingaggregatie: 8
IPv4 routes (statisch): 32
VLAN's ondersteund: 256
Access Control Entries (ACEs) per ACL: 480
Pakketbuffergrootte: 1.5 MB
IPv4 routes (statisch): 32
VLAN's ondersteund: 256
Access Control Entries (ACEs) per ACL: 480
Pakketbuffergrootte: 1.5 MB
MAC-adrestabelgrootte
8000 invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
Statische IP-routing
Protocol voor beheer op afstand
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Voorzieningen
Datatransport, DHCP-ondersteuning, ARP-ondersteuning, VLAN-ondersteuning, auto-uplink (auto MDI/MDI-X), IGMP-spionage, IPv6-ondersteuning, half duplex modus, volledige duplex modus, STP-ondersteuning, MSTP-ondersteuning, ACL-ondersteuning, QoS, TPM, LLDP ondersteuning, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
25.4 cm x 25.4 cm x 4.39 cm
Gewicht
1.16 kg
Lokalisatie
Engels / Europa
Algemeen
Type apparaat
Switch - 10 poorten - L3 - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
PoE-budget
124 W
Prestaties
Omschakelcapaciteit: 20 Gbps
Verwerkingscapaciteit: 14.88 Mpps
Vertraging (100 Mbps): 5.2 µs
Latentie (1 Gbps): 3 µs
Verwerkingscapaciteit: 14.88 Mpps
Vertraging (100 Mbps): 5.2 µs
Latentie (1 Gbps): 3 µs
Capaciteit
Poorten koppelingaggregatie: 8
IPv4 routes (statisch): 32
VLAN's ondersteund: 256
Access Control Entries (ACEs) per ACL: 480
Pakketbuffergrootte: 1.5 MB
IPv4 routes (statisch): 32
VLAN's ondersteund: 256
Access Control Entries (ACEs) per ACL: 480
Pakketbuffergrootte: 1.5 MB
MAC-adrestabelgrootte
8000 invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
Statische IP-routing
Protocol voor beheer op afstand
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS
Voorzieningen
Datatransport, DHCP-ondersteuning, ARP-ondersteuning, VLAN-ondersteuning, auto-uplink (auto MDI/MDI-X), IGMP-spionage, IPv6-ondersteuning, half duplex modus, volledige duplex modus, STP-ondersteuning, MSTP-ondersteuning, ACL-ondersteuning, QoS, TPM, LLDP ondersteuning, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Processor
1 x ARM Cortex-A9: 800 MHz
RAM
512 MB SDRAM
Flashgeheugen
256 MB
Statuslampjes
Poortstatus, voeding, PoE
Uitbreiding / Aansluiting
Interfaces
8 x 10/100/1000 Base-T RJ-45
2 x Gigabit LAN SFP
2 x Gigabit LAN SFP
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
150 watt
Diversen
MTBF (gemiddelde tijd tussen twee storingen)
95 jaren
Conformiteitsnormen
VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017
Lokalisatie
Engels / Europa
Afmetingen & gewicht
Breedte
25.4 cm
Diepte
25.4 cm
Hoogte
4.39 cm
Gewicht
1.16 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
15 - 95% (40 °C)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
15 - 95% (60 °C)
