Productnummer: 3278252

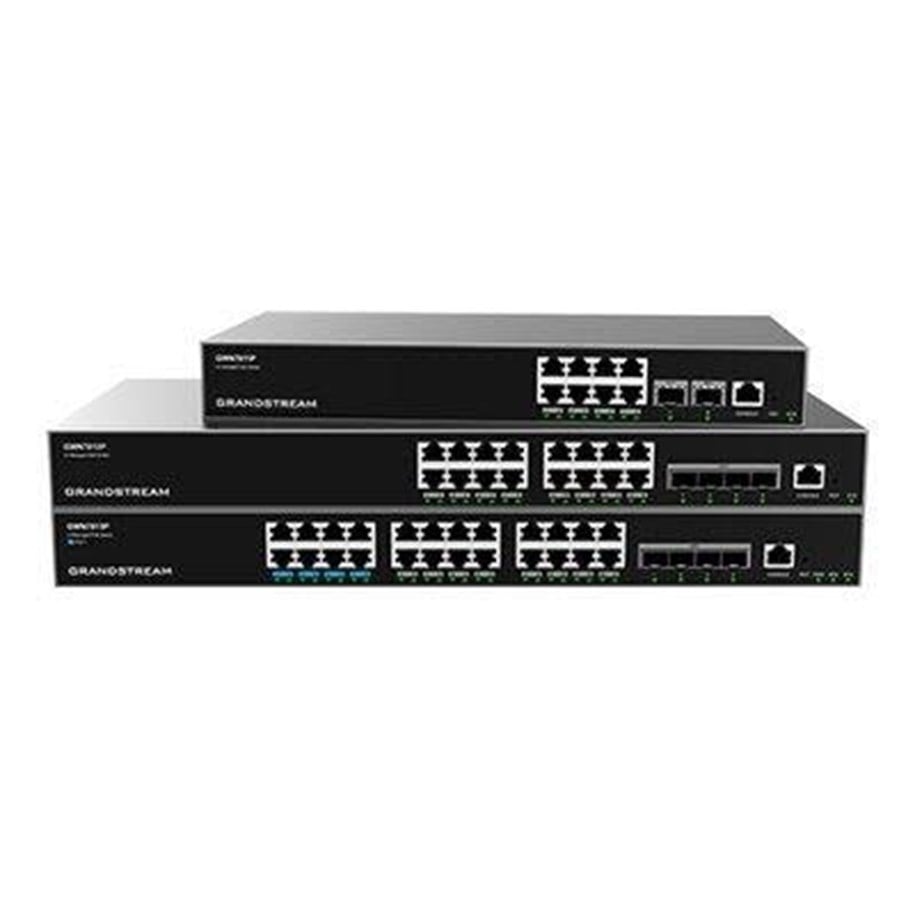

Grandstream GWN7811P - switch - enterprise managed - 8 ports - Managed - rack-mountable

Switch, enterprise, managed, L3, Beheerd, 8 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+, desktop, wandbevestiging, rack-uitvoering, PoE+ (120 W)

164,71 € 136,12 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd

The Grandstream GWN7811P is a high-performance, managed switch designed to meet the demands of enterprise networks. Offering a robust 28 Gbps non-blocking switching throughput and a 56 Gbps switching capacity, it ensures smooth and efficient data transmission across the network. With 8 PoE+ ports and 2 10 Gigabit SFP+ ports, it provides flexible connectivity options for a wide range of devices.Security is a priority for the GWN7811P, featuring advanced security measures such as 802.1x authentication, Access Control List (ACL) support, and DHCP snooping to protect against unauthorized access and network threats. Additionally, its 120 W PoE budget allows for the powering of multiple devices directly through the network cables, simplifying installation and reducing costs.Designed for versatility, the GWN7811P can be deployed in various environments thanks to its desktop, rack-mountable, and wall-mountable form factors. Whether for a small office or a large enterprise, the GWN7811P offers the performance, security, and flexibility needed to support a modern network infrastructure.

Producent
Productnummer
3278252
Model
Grandstream_GWN7811P
EAN
6947273704034
Naar de website van de producent
Switch type
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Cloud-beheerd
Ja
Traffic shaping
Ja
ARP-inspectie
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
2
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Ja
Port mirroring
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4000
MAC-adrestabel
16000 entries
Switchingcapaciteit
56 Gbit/s
Doorvoercapaciteit
28 Gbit/s
Verzending snelheid
41,644 Mpps
Store-and-forward
Ja
Statische route
Ja
Packet buffergeheugen
12 MB
DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
Toegangsbeheerlijst (ACL) IPv4-vermeldingen
2000
Toegangsbeheerlijst (ACL) IPv6-vermeldingen
2000
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP
MAC adres filtering
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Wachtwoordbeveiliging
Ja
Authenticatie type
AAA, RADIUS, TACACS+
Algoritmen wachtrijplanning
SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)
GARP VLAN Registratieprotocol (GVRP)
Ja
Rack-montage
Ja
Kleur van het product
Grijs
LED-indicatoren
Ja
Stroombron
DC/PoE
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
120 W
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-10 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Breedte
176 mm
Diepte
330 mm
Hoogte
44 mm
Gewicht
2,17 kg
Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja

Beheerfuncties

Switch type
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Cloud-beheerd
Ja
Traffic shaping
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
2

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Ja
Port mirroring
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4000

Data-uitwisseling

MAC-adrestabel
16000 entries
Switchingcapaciteit
56 Gbit/s
Doorvoercapaciteit
28 Gbit/s
Verzending snelheid
41,644 Mpps
Store-and-forward
Ja
Statische route
Ja
Packet buffergeheugen
12 MB

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
Toegangsbeheerlijst (ACL) IPv4-vermeldingen
2000
Toegangsbeheerlijst (ACL) IPv6-vermeldingen
2000
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP
MAC adres filtering
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Wachtwoordbeveiliging
Ja
Authenticatie type
AAA, RADIUS, TACACS+
Algoritmen wachtrijplanning
SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage
Ja
Kleur van het product
Grijs
LED-indicatoren
Ja

Energie

Stroombron
DC/PoE

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-10 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
176 mm
Diepte
330 mm
Hoogte
44 mm
Gewicht
2,17 kg

Inhoud van de verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
