Productnummer: 3329467

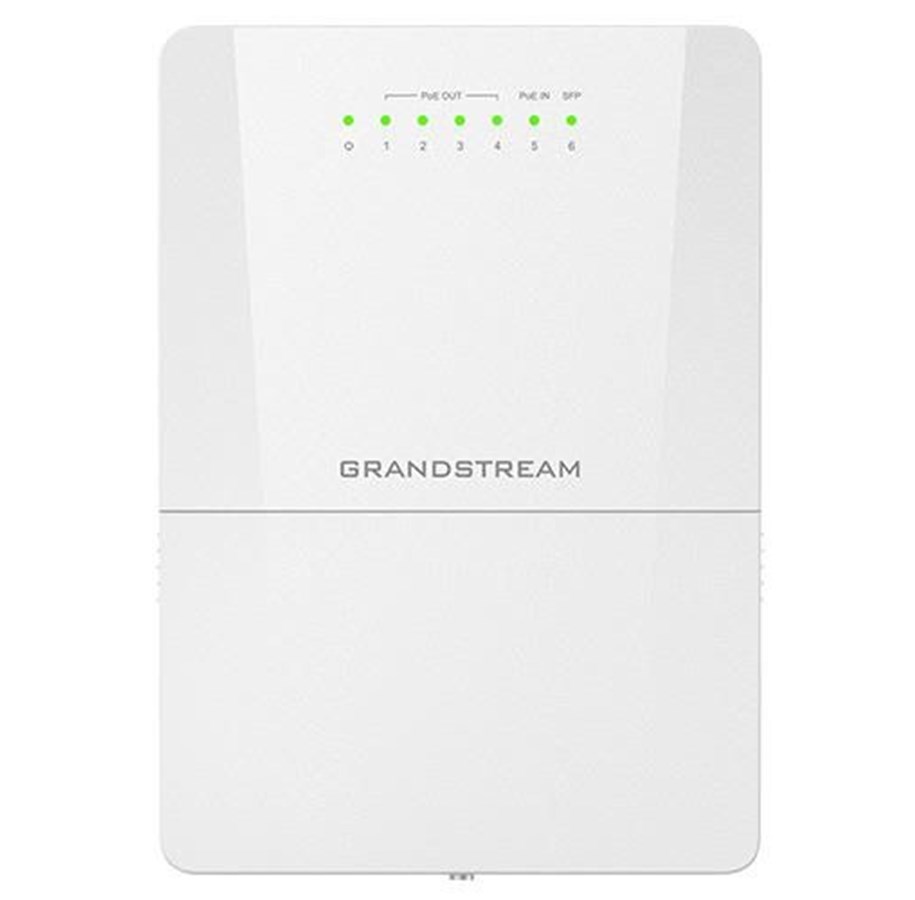

Grandstream GWN7710R 6-Port Outdoor L2 Lite Managed Switch
Switch, Beheerd, 5 x 10/100/1000 (PoE) + 1 x 1/2.5G SFP, aan paal te bevestigen, wandbevestiging, monteerbaar op DIN-rails, PoE (60 W)
99,34 €
82,10 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Grandstream GWN7710R is a reliable and versatile networking switch designed to meet diverse organizational needs. With a capacity to support 3 VLANs and up to 32 Link Access Groups, this device provides flexibility for network segmentation and management. Its performance features include a switching capacity of 15 Gbps and non-blocking switching throughput, ensuring seamless data transfers across the network. The GWN7710R is built to withstand extreme environmental conditions, operating efficiently in temperatures ranging from -40°C to 60°C and supporting humidity levels between 10 to 95%.
This switch includes four PoE ports capable of delivering up to 60 W of power, streamlining installation and reducing the need for additional power sources. Compliance with standards including IC, FCC, and IP66 ratings signifies the device's reliability in various environments. Features such as DHCP snooping, storm control, and a robust 16KV ESD protector ensure security and protection for your network infrastructure, making the GWN7710R a valuable addition to any network setup.
This switch includes four PoE ports capable of delivering up to 60 W of power, streamlining installation and reducing the need for additional power sources. Compliance with standards including IC, FCC, and IP66 ratings signifies the device's reliability in various environments. Features such as DHCP snooping, storm control, and a robust 16KV ESD protector ensure security and protection for your network infrastructure, making the GWN7710R a valuable addition to any network setup.
Producent
Productnummer
3329467
Model
GWN7710R
EAN
6947273705246
Naar de website van de producent
Productbeschrijving
Grandstream GWN7710 Series GWN7710R - switch - 6 poorten - Beheerd
Type apparaat
Switch - 6 poorten - Beheerd
Subtype
Gigabit Ethernet
Poorten
5 x 10/100/1000 (PoE) + 1 x 1/2.5G SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
PoE-budget
60 W
Prestaties
Doorstuursnelheid: 11.16 Mpps
Omschakelcapaciteit: 15 Gbps
Niet-blokkerende schakelverwerkingscapaciteit: 6 Gbps
Pakketbuffergrootte: 4 Mbit
Omschakelcapaciteit: 15 Gbps
Niet-blokkerende schakelverwerkingscapaciteit: 6 Gbps
Pakketbuffergrootte: 4 Mbit
Capaciteit
VLAN's ondersteund: 32
Link Access Groups (LAG's): 3
Link Access Groups (LAG's): 3
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
15KB
Protocol voor beheer op afstand
IPv4
Voorzieningen
Lusdetectie, Storm Control, DHCP-spionage, STP-ondersteuning, PoE-bewakingsmodus, kabeltest, gespiegelde poorten, multicastmodus, QoS, VLAN-ondersteuning, opslaan en verder, DHCP client, 16 kV-ESD-bescherming (luchtspleetontlading), 16KV ESD Protector (contact discharge), reset-knop
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Stroom
DC 12 - 57 V
Afmetingen (BxDxH)
21 cm x 15 cm x 5.2 cm
Gewicht
750 g
Algemeen
Type apparaat
Switch - 6 poorten - Beheerd
Type bijvoegsel
Aan paal te bevestigen, wandbevestiging, monteerbaar op DIN-rails
Subtype
Gigabit Ethernet
Poorten
5 x 10/100/1000 (PoE) + 1 x 1/2.5G SFP
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
PoE-budget
60 W
Prestaties
Doorstuursnelheid: 11.16 Mpps
Omschakelcapaciteit: 15 Gbps
Niet-blokkerende schakelverwerkingscapaciteit: 6 Gbps
Pakketbuffergrootte: 4 Mbit
Omschakelcapaciteit: 15 Gbps
Niet-blokkerende schakelverwerkingscapaciteit: 6 Gbps
Pakketbuffergrootte: 4 Mbit
Capaciteit
VLAN's ondersteund: 32
Link Access Groups (LAG's): 3
Link Access Groups (LAG's): 3
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
15KB
Protocol voor beheer op afstand
IPv4
Voorzieningen
Lusdetectie, Storm Control, DHCP-spionage, STP-ondersteuning, PoE-bewakingsmodus, kabeltest, gespiegelde poorten, multicastmodus, QoS, VLAN-ondersteuning, opslaan en verder, DHCP client, 16 kV-ESD-bescherming (luchtspleetontlading), 16KV ESD Protector (contact discharge), reset-knop
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Statuslampjes
Koppeling, bedrijvigheid, PoE, voeding
Uitbreiding / Aansluiting
Interfaces
1 x 1000Base-T RJ-45 PoE - 60 W
4 x 1000Base-T RJ-45 PoE - 30 W
1 x 100/1000/2.5G SFP
4 x 1000Base-T RJ-45 PoE - 30 W
1 x 100/1000/2.5G SFP
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
DC 12 - 57 V
Diversen
Meegeleverde accessoires
Montagebeugels rek, QIG, 4 x assembled screw, 4 x expansion screw, 2 x metal straps, Phoenix connector
Rackmontagekit
Inclusief
Conformiteitsnormen
FCC, RCM, IC, IP66
Afmetingen & gewicht
Breedte
21 cm
Diepte
15 cm
Hoogte
5.2 cm
Gewicht
750 g
Afmetingen & gewicht (transport)
Verzendbreedte
46.6 cm
Verzenddiepte
28.6 cm
Verzendhoogte
25.8 cm
Verzendgewicht
1.35 kg
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
60 °C
Luchtvochtigheidsgraad bij gebruik
10 - 95% (niet condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
