Productnummer: 3375842

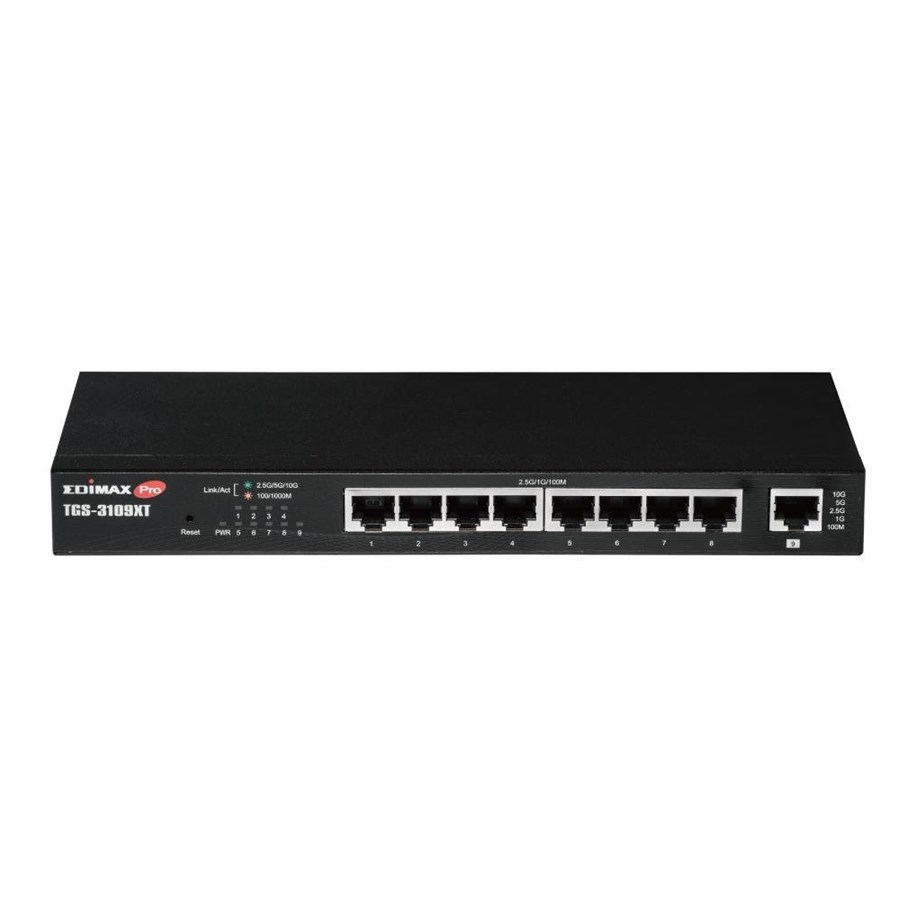

Edimax TGS-3109XT 8-Port 2.5GbE Web Smart Switch 1x 10GbE Multi-Gigabit Port
Switch, web, intelligent, 8 x 2.5GBase-T + 1 x 10GBase-X, desktop, wandbevestiging, voor Edimax TGS-3109PLX, TGS-3109XT, TGS-5428PLX
196,59 €
162,47 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The Edimax Pro TGS-3109XT is designed for robust networking with exceptional capabilities. It supports a capacity of up to 10 VLANs, 128 priority queues, and 4 multicast groups, enabling efficient traffic management. Designed for versatile operation, this switch operates within a temperature range from 0°C to 40°C and is constructed to resist storage temperatures as low as -40°C up to 70°C. The operating humidity level is from 10% to 90%, providing reliable performance in various environments. Equipped with 8 ports of 2.5GBase-T and 1 port of 10GBase-X, the TGS-3109XT caters to high-speed connectivity demands while conforming to a multitude of networking standards such as IEEE 802.3, IEEE 802.1Q, and LACP. The metal housing and fanless design ensure durability and quiet operation, making it suitable for both desktop and wall-mountable applications. Features like VLAN support, IGMP snooping, and port trunking further enhance its functionality, making the Edimax Pro TGS-3109XT a smart choice for seamless networking.
Producent
Productnummer
3375842
Model
TGS-3109XT
EAN
4717964705396
Naar de website van de producent
Productbeschrijving
Edimax Pro TGS-3109XT - switch - web - 8 poorten - intelligent
Type apparaat
Switch - 8 poorten - intelligent
Subtype
10 Gigabit Ethernet / 2.5 Gigabit Ethernet
Poorten
8 x 2.5GBase-T + 1 x 10GBase-X
Prestaties
Bandbreedte achtervlak: 60 Gbps
Doorstuursnelheid: 44.64 Mpps
Doorstuursnelheid: 44.64 Mpps
Capaciteit
Voorkeurswachtrijen: 4
VLAN's ondersteund: 10
Multicastgroepen: 128
VLAN's ondersteund: 10
Multicastgroepen: 128
MAC-adrestabelgrootte
4K invoergegevens
Jumbo Frame-ondersteuning
12KB
Routingprotocol
IGMP, IGMPv2, IGMPv3
Voorzieningen
Broadcast Storm Control, gespiegelde poorten, poort-trunking, VLAN-ondersteuning, Link Aggregation, zonder ventilator, metalen behuizing, reset-knop, QoS op basis van poort, IGMP-spionage, lusdetectie, luspreventie, multicast-verkeer
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Stroom
DC 12 V 1 A
Afmetingen (BxDxH)
23 cm x 10.5 cm x 2.7 cm
Gewicht
713 g
Ontworpen voor
Edimax TGS-3109PLX, TGS-3109XT, TGS-5428PLX
Algemeen
Type apparaat
Switch - 8 poorten - intelligent
Type bijvoegsel
Desktop, wandbevestiging
Subtype
10 Gigabit Ethernet / 2.5 Gigabit Ethernet
Poorten
8 x 2.5GBase-T + 1 x 10GBase-X
Prestaties
Bandbreedte achtervlak: 60 Gbps
Doorstuursnelheid: 44.64 Mpps
Doorstuursnelheid: 44.64 Mpps
Capaciteit
Voorkeurswachtrijen: 4
VLAN's ondersteund: 10
Multicastgroepen: 128
VLAN's ondersteund: 10
Multicastgroepen: 128
MAC-adrestabelgrootte
4K invoergegevens
Jumbo Frame-ondersteuning
12KB
Routingprotocol
IGMP, IGMPv2, IGMPv3
Voorzieningen
Broadcast Storm Control, gespiegelde poorten, poort-trunking, VLAN-ondersteuning, Link Aggregation, zonder ventilator, metalen behuizing, reset-knop, QoS op basis van poort, IGMP-spionage, lusdetectie, luspreventie, multicast-verkeer
Conformiteitsnormen
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Statuslampjes
Voeding, link/activiteit
Uitbreiding / Aansluiting
Interfaces
8 x 2.5GBase-T RJ-45
1 x 10GBase-X RJ-45
1 x 10GBase-X RJ-45
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
DC 12 V
Elektrische stroom vereist
1 A
Diversen
Conformiteitsnormen
FCC
Afmetingen & gewicht
Breedte
23 cm
Diepte
10.5 cm
Hoogte
2.7 cm
Gewicht
713 g
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
10 - 90% (niet condenserend)
Informatie over Compatibiliteit
Ontworpen voor
Edimax TGS-3109PLX, TGS-3109XT, TGS-5428PLX
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
