Productnummer: 3488356

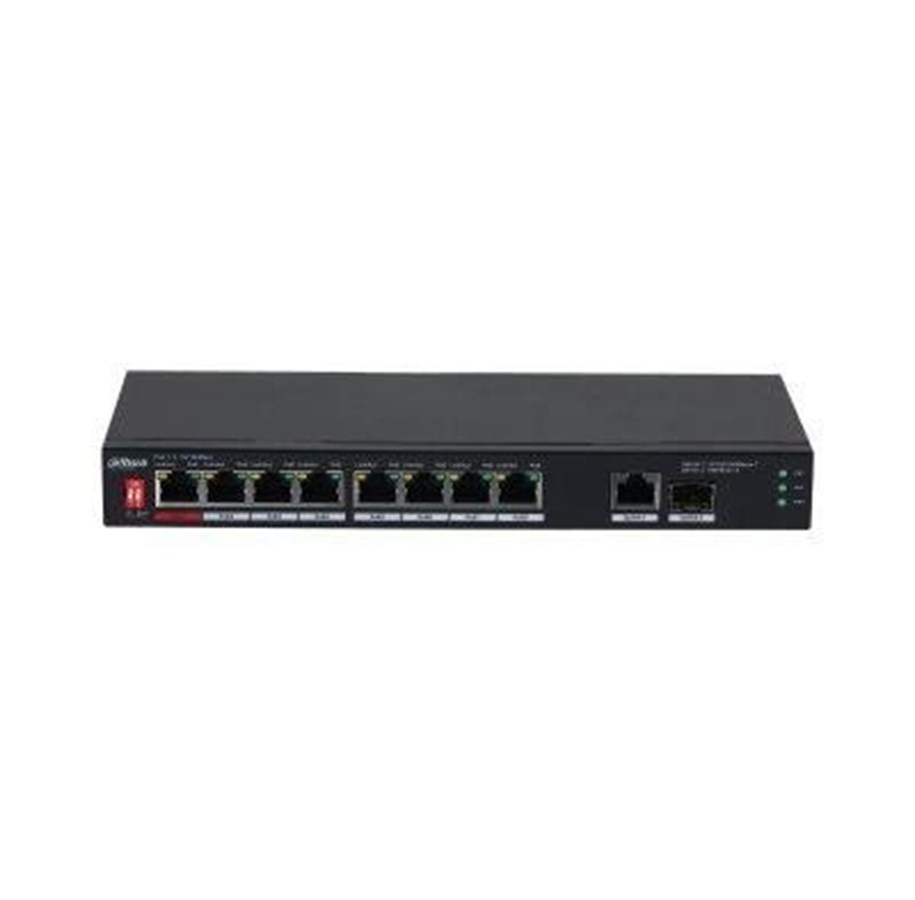

Dahua PFS3110-8ET1GT1GF-96 - switch - 10 ports - unmanaged
Switch, onbeheerd, 8 x 10/100 (PoE) + 1 x 10/100/1000 Base-T (uplink) + 1 x 1000Base-X (uplink), desktop, High PoE / PoE+
90,22 €
74,56 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
The Dahua PFS3110-8ET1GT1GF-96 is a versatile switch designed for various networking needs. Operating within a wide temperature range from -10°C to 55°C and maintaining functionality in humidity from 10% to 90% RH, this switch ensures reliable performance in diverse environments. With 10 ports that include 8 PoE ports and 2 uplink ports, it provides the necessary connectivity for multiple devices while supporting PoE power of up to 90 W. Equipped with robust safety features such as 8KV ESD protection and 4KV lightning protection, the Dahua PFS3110-8ET1GT1GF-96 is a stable choice for any setup. The metal housing ensures durability, while the built-in PoE watchdog mode enhances supervision over connected devices. With a packet forwarding rate of 4.17 Mpps and a switching capacity of 5.6 Gbps, this switch delivers efficient data handling to meet the demands of modern network infrastructure.
Producent
Productnummer
3488356
Model
PFS3110-8ET1GT1GF-96
EAN
6923172540690
Productbeschrijving
Dahua PFS3110-8ET1GT1GF-96 - switch - 10 poorten - onbeheerd
Type apparaat
Switch - 10 poorten - onbeheerd
Subtype
Fast Ethernet
Poorten
8 x 10/100 (PoE) + 1 x 10/100/1000 Base-T (uplink) + 1 x 1000Base-X (uplink)
Voeding via ethernet (Power Over Ethernet, PoE)
High PoE / PoE+
Prestaties
Omschakelcapaciteit: 5,6 Gbps
Pakketdoorstuursnelheid: 4,17 Mpps
Pakketbuffergrootte: 4 Mbit
Pakketdoorstuursnelheid: 4,17 Mpps
Pakketbuffergrootte: 4 Mbit
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Voorzieningen
Metalen behuizing, 8 kV-ESD-bescherming (luchtspleetontlading), 6 kV-ESD-bescherming (contactontlading), PoE-bewakingsmodus, 250 m Long Reach, 4KV-bliksembescherming (standaard modus), bliksembescherming 2 kV (differentieelmodus)
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
Stroom
DC 53 V
Afmetingen (BxDxH)
24 cm x 10.5 cm x 2.8 cm
Gewicht
650 g
Algemeen
Type apparaat
Switch - 10 poorten - onbeheerd
Type bijvoegsel
Desktop
Subtype
Fast Ethernet
Poorten
8 x 10/100 (PoE) + 1 x 10/100/1000 Base-T (uplink) + 1 x 1000Base-X (uplink)
Voeding via ethernet (Power Over Ethernet, PoE)
High PoE / PoE+
Prestaties
Omschakelcapaciteit: 5,6 Gbps
Pakketdoorstuursnelheid: 4,17 Mpps
Pakketbuffergrootte: 4 Mbit
Pakketdoorstuursnelheid: 4,17 Mpps
Pakketbuffergrootte: 4 Mbit
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Voorzieningen
Metalen behuizing, 8 kV-ESD-bescherming (luchtspleetontlading), 6 kV-ESD-bescherming (contactontlading), PoE-bewakingsmodus, 250 m Long Reach, 4KV-bliksembescherming (standaard modus), bliksembescherming 2 kV (differentieelmodus)
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
Statuslampjes
Voeding, PoE, link/activiteit, uplink
Uitbreiding / Aansluiting
Interfaces
1 x 10/100 Base-T RJ-45 HPoE - 90 W
7 x 10/100 Base-T RJ-45 PoE+ - 30 W
1 x 1000Base-T RJ-45 uplink
1 x 1000Base-X uplink
7 x 10/100 Base-T RJ-45 PoE+ - 30 W
1 x 1000Base-T RJ-45 uplink
1 x 1000Base-X uplink
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
DC 53 V
Energieverbruik tijdens gebruik
3 Watt
Diversen
Conformiteitsnormen
FCC
Afmetingen & gewicht
Breedte
24 cm
Diepte
10.5 cm
Hoogte
2.8 cm
Gewicht
650 g
Afmetingen & gewicht (transport)
Verzendgewicht
1.4 kg
Omgevingsparameters
Min. gebruikstemperatuur
-10 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% RH
