Productnummer: 3476139

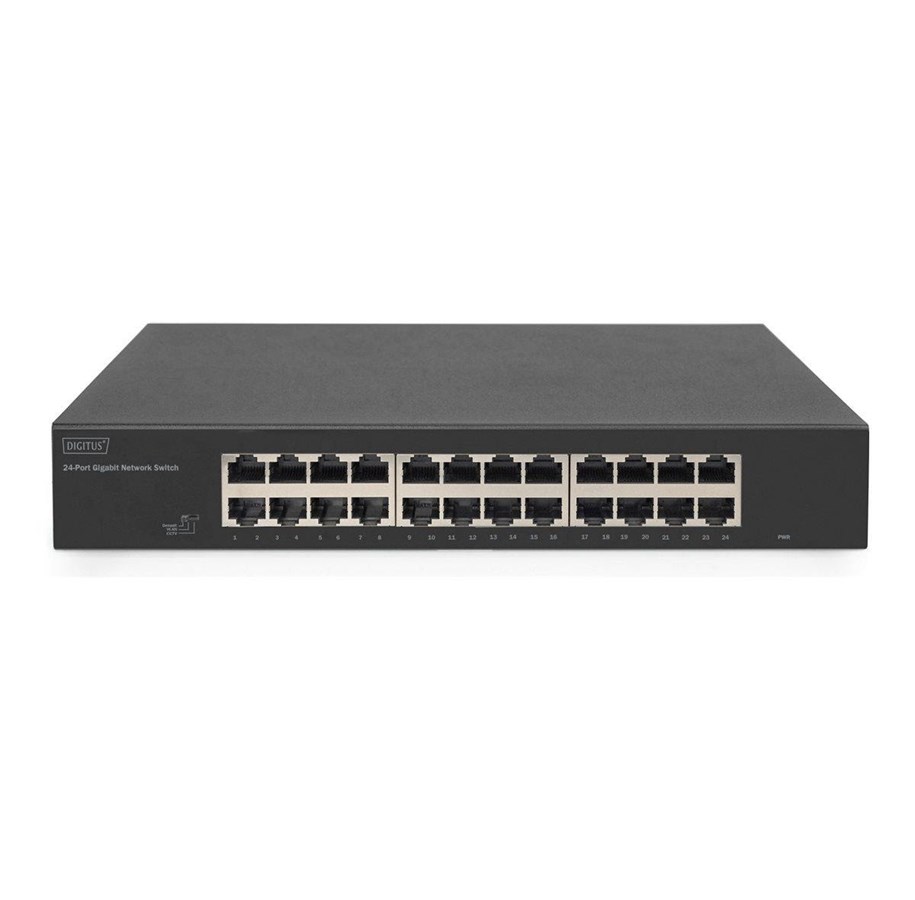

DIGITUS - switch - 24 ports - unmanaged - rack-mountable
Switch, onbeheerd, 24 x 10/100/1000Base-T, rack-uitvoering, desktop
136,71 €
112,98 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The DIGITUS DN-80113-2 is designed to optimize network performance with its 24 ports of 1000Base-T connectivity. Engineered for versatility, this switch supports both rack-mountable and desktop form factors, facilitating integration into various environments. With a robust switching capacity of 48 Gbps and a packet forwarding rate of 35.71 Mpps, high-speed data transfers are seamless, ensuring efficient network operations.Built to withstand a wide range of environmental conditions, this switch operates efficiently in temperatures from 0°C to 40°C and can be stored in environments as cold as -40°C and as warm as 70°C. Equipped with multiple protection features including 2KV lightning protection, 4KV surge protection, and up to 8KV ESD protection, the DIGITUS switch is a reliable choice for safeguarding network equipment. Additionally, features like auto-uplink, half/full duplex mode, and flow control enhance functionality, while the included rack mounting kit simplifies installation.
Producent
Productnummer
3476139
Model
DN-80113-2
EAN
4016032498506
Naar de website van de producent
Productbeschrijving
DIGITUS - switch - 24 poorten - onbeheerd - rack-uitvoering
Type apparaat
Switch - 24 poorten - onbeheerd
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000Base-T
Prestaties
Omschakelcapaciteit: 48 Gbps
Pakketdoorstuursnelheid: 35,71 Mpps
Pakketbuffergrootte: 4 Mbit
Pakketdoorstuursnelheid: 35,71 Mpps
Pakketbuffergrootte: 4 Mbit
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
15KB
Voorzieningen
Auto-uplink (auto MDI/MDI-X), halve/volle duplexmodus, datatransport, back pressure flow control, opslaan en verder, zonder ventilator, 2KV lightning protection (common mode), 4KV stroompiek bescherming, 6 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading), overspanningsbeveiliging
Conformiteitsnormen
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
28 cm x 18 cm x 4.4 cm
Gewicht
1.47 kg
Algemeen
Type apparaat
Switch - 24 poorten - onbeheerd
Type bijvoegsel
Rack-uitvoering, desktop
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000Base-T
Prestaties
Omschakelcapaciteit: 48 Gbps
Pakketdoorstuursnelheid: 35,71 Mpps
Pakketbuffergrootte: 4 Mbit
Pakketdoorstuursnelheid: 35,71 Mpps
Pakketbuffergrootte: 4 Mbit
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
15KB
Voorzieningen
Auto-uplink (auto MDI/MDI-X), halve/volle duplexmodus, datatransport, back pressure flow control, opslaan en verder, zonder ventilator, 2KV lightning protection (common mode), 4KV stroompiek bescherming, 6 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading), overspanningsbeveiliging
Conformiteitsnormen
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az
Statuslampjes
Link/activiteit, voeding
Uitbreiding / Aansluiting
Interfaces
24 x 1000Base-T RJ-45
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Diversen
Meegeleverde accessoires
Voedingskabel, 4 rubberen voetjes, 8 schroeven
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Afmetingen & gewicht
Breedte
28 cm
Diepte
18 cm
Hoogte
4.4 cm
Gewicht
1.47 kg
Afmetingen & gewicht (transport)
Verzendbreedte
37 cm
Verzenddiepte
23 cm
Verzendhoogte
8 cm
Verzendgewicht
2.26 kg
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% RH (non-condensing)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
5 - 90% RH (non-condensing)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
