Productnummer: 3104303

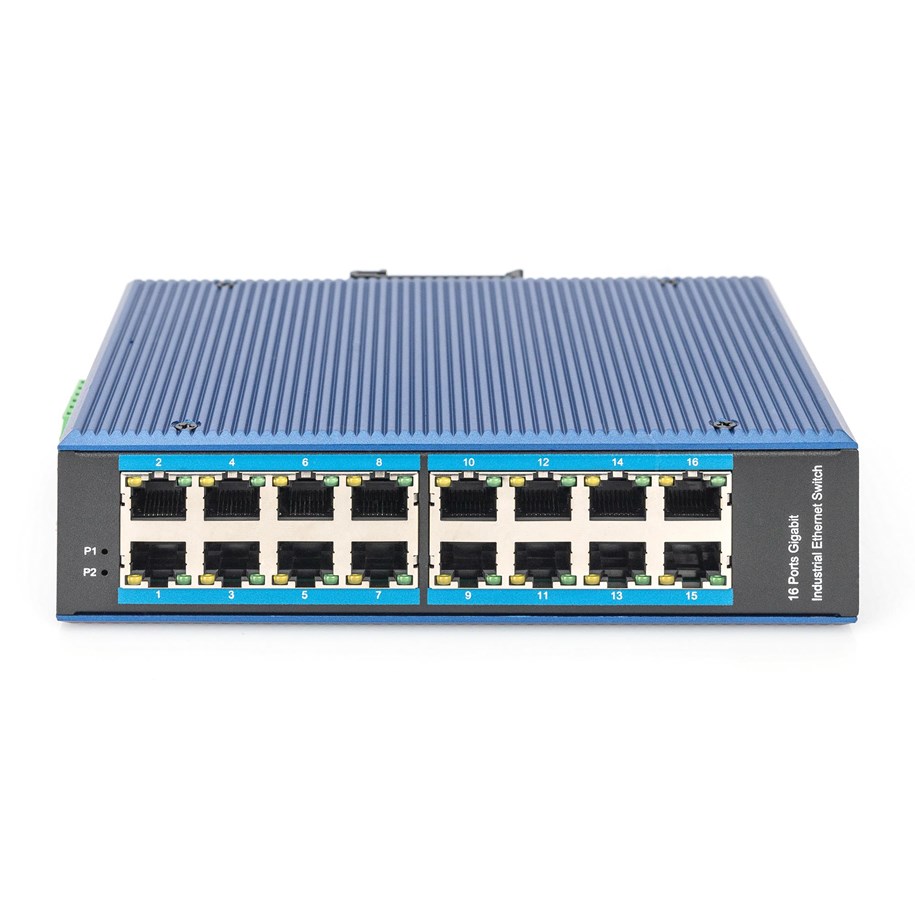

DIGITUS - Schakelaar - 16 ports - unmanaged

Switch, onbeheerd, 16 x 10/100/1000, desktop, Gelijkstroom

243,94 € 201,60 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The DIGITUS Gigabit Ethernet switch is engineered to meet the demands of modern industrial environments, offering a blend of performance, protection, and durability. With 16 RJ-45 ports, it provides ample connectivity for devices, supporting 1000Base-T for high-speed data transmission. Its robust design ensures operation in temperatures ranging from -40°C to 80°C and humidity levels of 5 to 95%, making it suitable for a wide range of operational conditions. This switch stands out with its advanced protection features, including 12 KV ESD protection and 4 KV surge protection, ensuring your network remains safe from electrical hazards. The fanless design and aluminum housing not only contribute to its durability but also allow for silent operation, making it an unobtrusive addition to any setting. Furthermore, its high-capacity performance, with a bandwidth of 56 Gbps and a forwarding capacity of 42 Mpps, ensures efficient data handling, making it an ideal solution for networks with high data traffic. Designed for flexibility, it can be mounted on a DIN rail or wall, offering versatile installation options to fit various spaces and setups. Whether for industrial applications or demanding commercial environments, the DIGITUS Gigabit Ethernet switch is built to deliver reliability, efficiency, and high performance.

Producent
Productnummer
3104303
Model
DN-651129
EAN
4016032478089
Naar de website van de producent
Switch type
Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten
16
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
16
Netstekker
DC-in ingang
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Nee
MAC-adrestabel
8000 entries
Switchingcapaciteit
1 Gbit/s
Verzending snelheid
42 Mpps
Packet buffergeheugen
4,1 MB
Rack-montage
Nee
Stapelbaar
Nee
Kleur van het product
Blauw
Materiaal behuizing
Aluminium
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Fanloos
Ja
Mean time between failures (MTBF)
300000 uur
Stroombron
DC
Vermogenstoevoer inclusief
Nee
Redundante voeding
Ja
DC voltage input
12 - 52 V
Stroomverbruik (typisch)
10 W
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
4 kV
Power over Ethernet (PoE)
Nee
Bandbreedte
56 Gbit/s
Ethernet interface type
Gigabit Ethernet
Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Breedte
175,6 mm
Diepte
135 mm
Hoogte
45,5 mm
Gewicht
900 g
Gebruikershandleiding
Ja
Breedte verpakking
208 mm
Diepte verpakking
186 mm
Hoogte verpakking
72,5 mm
Verpakkingsvolume
2804,88 cm³
Gewicht verpakking
1,08 kg
Land van herkomst
China
Code UK-handelstarief
85176200

Beheerfuncties

Switch type
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
16
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
16
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Nee

Data-uitwisseling

MAC-adrestabel
8000 entries
Switchingcapaciteit
1 Gbit/s
Verzending snelheid
42 Mpps
Packet buffergeheugen
4,1 MB

Design

Rack-montage
Nee
Stapelbaar
Nee
Kleur van het product
Blauw
Materiaal behuizing
Aluminium
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee

Prestatie

Fanloos
Ja
Mean time between failures (MTBF)
300000 uur

Energie

Stroombron
DC
Vermogenstoevoer inclusief
Nee
Redundante voeding
Ja
DC voltage input
12 - 52 V
Stroomverbruik (typisch)
10 W
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Nee

Overige specificaties

Bandbreedte
56 Gbit/s
Ethernet interface type
Gigabit Ethernet

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
175,6 mm
Diepte
135 mm
Hoogte
45,5 mm
Gewicht
900 g

Inhoud van de verpakking

Gebruikershandleiding
Ja

Verpakking

Breedte verpakking
208 mm
Diepte verpakking
186 mm
Hoogte verpakking
72,5 mm
Verpakkingsvolume
2804,88 cm³
Gewicht verpakking
1,08 kg

Logistieke gegevens

Land van herkomst
China
Code UK-handelstarief
85176200
