Productnummer: 2682991

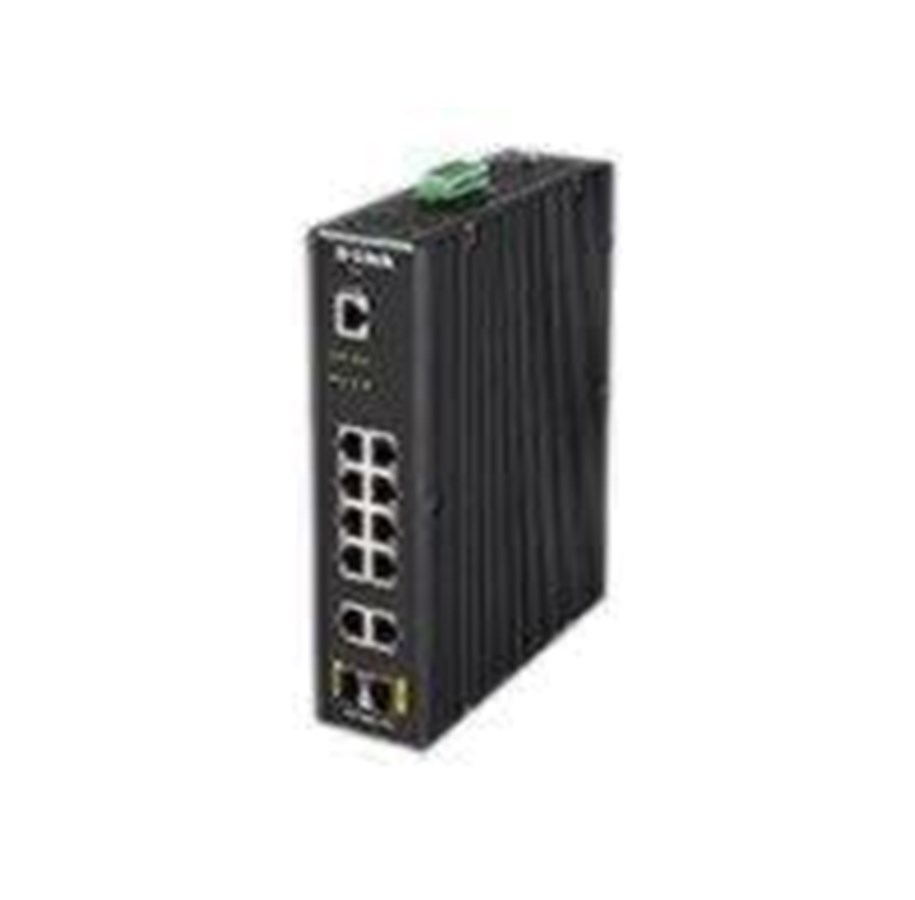

D-Link DIS 200G-12S
Switch, Beheerd, 10 x 10/100/1000 + 2 x SFP, monteerbaar op DIN-rails, wandbevestiging, 120/230V wisselstroom / 46-54V gelijkstroom
552,30 €
456,45 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12S furthermore integrates advanced management and security functions to provide a complete solution.
Producent
Productnummer
2682991
Model
DIS-200G-12S
EAN
0790069433535
Naar de website van de producent
Productbeschrijving
D-Link DIS 200G-12S - switch - 10 poorten - Beheerd
Type apparaat
Switch - 10 poorten - Beheerd
Subtype
Gigabit Ethernet
Poorten
10 x 10/100/1000 + 2 x SFP
Prestaties
Omschakelcapaciteit: 24 Gbps
Throughput (64-byte pakketgrootte): 17,85 Mpps
Throughput (64-byte pakketgrootte): 17,85 Mpps
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protocol voor beheer op afstand
Telnet, CLI
Voorzieningen
Datatransport, ARP-ondersteuning, auto-uplink (auto MDI/MDI-X), IGMP-spionage, DoS bescherming tegen aanval, gespiegelde poorten, opslaan en verder, Broadcast Storm Control, IPv6-ondersteuning, Multicast Storm Control, Unicast Storm Control, Dying Gasp ondersteuning, SNTP-ondersteuning, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, QoS, MLD spionage, Safeguard Engine, reset-knop, Cable Diagnostics Function, IPv4-ondersteuning, zonder ventilator, LLDP ondersteuning, LACP, Port Security, SNMP trap, DHCP client, 512KB pakketbuffer, GVRP, dubbele firmware afbeeldingen, SP, gemerkte VLAN, TFTP-cliënt, 802.1x authenticatie, ERPS, DDM, AAA, WAC, EEE, WRR, HOL Blocking Prevention, lusdetectie
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Stroom
120/230V wisselstroom / 46-54V gelijkstroom (50/60 Hz)
Afmetingen (BxDxH)
21 cm x 17.12 cm x 4.8 cm
Gewicht
2.5 kg
Algemeen
Type apparaat
Switch - 10 poorten - Beheerd
Type bijvoegsel
Monteerbaar op DIN-rails, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
10 x 10/100/1000 + 2 x SFP
Prestaties
Omschakelcapaciteit: 24 Gbps
Throughput (64-byte pakketgrootte): 17,85 Mpps
Throughput (64-byte pakketgrootte): 17,85 Mpps
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protocol voor beheer op afstand
Telnet, CLI
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS
Voorzieningen
Datatransport, ARP-ondersteuning, auto-uplink (auto MDI/MDI-X), IGMP-spionage, DoS bescherming tegen aanval, gespiegelde poorten, opslaan en verder, Broadcast Storm Control, IPv6-ondersteuning, Multicast Storm Control, Unicast Storm Control, Dying Gasp ondersteuning, SNTP-ondersteuning, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, QoS, MLD spionage, Safeguard Engine, reset-knop, Cable Diagnostics Function, IPv4-ondersteuning, zonder ventilator, LLDP ondersteuning, LACP, Port Security, SNMP trap, DHCP client, 512KB pakketbuffer, GVRP, dubbele firmware afbeeldingen, SP, gemerkte VLAN, TFTP-cliënt, 802.1x authenticatie, ERPS, DDM, AAA, WAC, EEE, WRR, HOL Blocking Prevention, lusdetectie
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
RAM
128 MB
Flashgeheugen
32 MB
Statuslampjes
Status
Uitbreiding / Aansluiting
Interfaces
10 x 1000Base-T RJ-45
2 x 1000Base-X SFP
1 x console RJ-45
2 x 1000Base-X SFP
1 x console RJ-45
Stroom
Vereiste netspanning
120/230V wisselstroom / 46-54V gelijkstroom (50/60 Hz)
Energieverbruik tijdens gebruik
10.26 watt
Diversen
Meegeleverde accessoires
DIN-rail bevestigingskit, wandbevestigingsset
Kabels meegeleverd
1 x consolekabel
MTBF (gemiddelde tijd tussen twee storingen)
276 773 uur
Conformiteitsnormen
UL, C-Tick, BSMI, IEC 61000-4-5, FCC, IP30
Software / Systeemvereisten
Software meegeleverd
Stuurprogramma's & hulpprogramma's
Afmetingen & gewicht
Breedte
21 cm
Diepte
17.12 cm
Hoogte
4.8 cm
Gewicht
2.5 kg
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
65 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
85 °C
Luchtvochtigheidsgraad bij opslaan
0 - 95% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
