Productnummer: 3095268

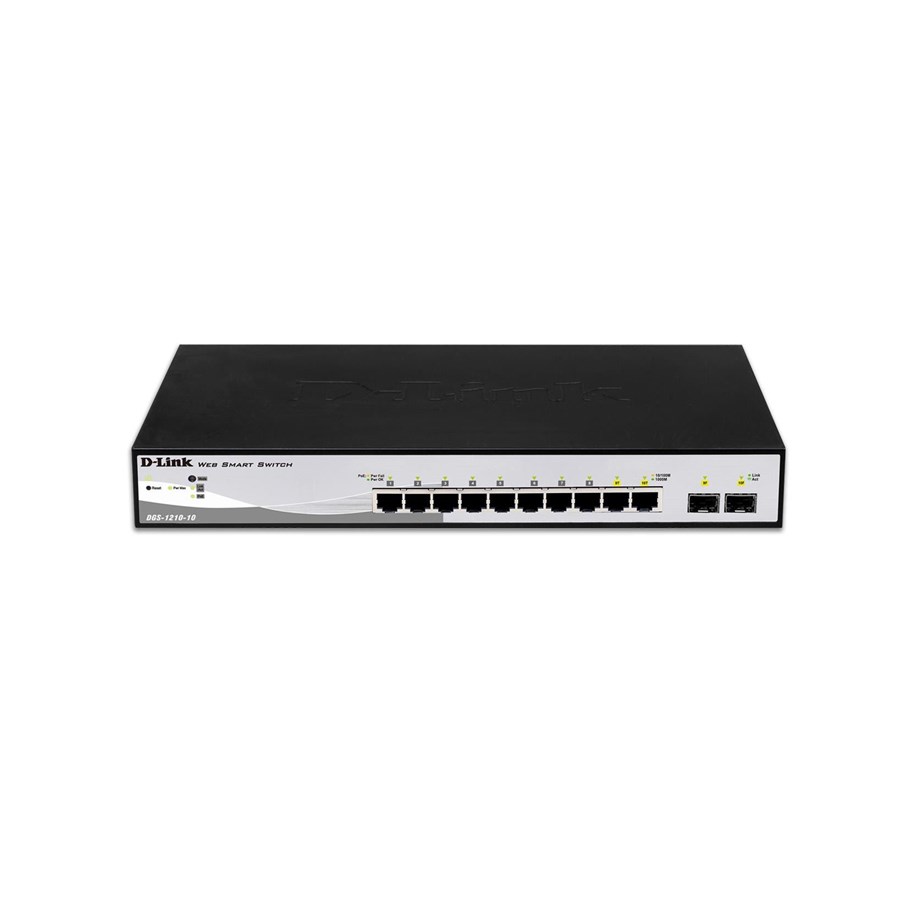

D-Link DGS 1210-10 10-Port Gigabit Smart Managed Switch
Switch, intelligent, 8 x 10/100/1000 + 2 x Gigabit SFP, desktop, rack-uitvoering
102,57 €
84,77 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
Discover the D-Link DGS 1210-10, a smart switch designed to meet the demands of modern network environments. With a 20 Gbps switching capacity and 14.88 Mpps forwarding performance, this switch ensures high-speed data transmission and efficient handling of network traffic. Its fanless design makes it perfectly suited for office environments where noise levels are a concern. Security is a priority, with advanced features such as Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), and a comprehensive suite of encryption algorithms to protect against unauthorized access. The switch also supports Quality of Service (QoS) and Access Control List (ACL) to prioritize network traffic and enhance security measures. Additionally, its energy-efficient design, featuring D-Link Green technology, reduces operational costs while maintaining performance. With flexible management options including CLI, SNMP, and RMON, the D-Link DGS 1210-10 offers a versatile solution for any small to medium-sized business looking to optimize their network.
Producent
Productnummer
3095268
Model
DGS-1210-10/E
EAN
5704174940302
Naar de website van de producent
Productbeschrijving
D-Link DGS 1210-10 - switch - 10 poorten - intelligent - rack-uitvoering
Type apparaat
Switch - 10 poorten - intelligent
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 + 2 x Gigabit SFP
Prestaties
Omschakelcapaciteit: 20 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 14.88 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 14.88 Mpps
Capaciteit
Statische MAC-invoergegevens: tot 256
IGMP-groepen: 256
QoS hardware queues per poort: 8
ACL-regels: 768
IGMP-groepen: 256
QoS hardware queues per poort: 8
ACL-regels: 768
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
10000 bytes
Routingprotocol
IGMP, IGMPv2, MLD, MLDv2, statische IP-routing
Protocol voor beheer op afstand
SNMP 1, SNMP 2c, SNMP 3, Telnet, CLI, TFTP, RMON 1
Voorzieningen
Full-duplexcapaciteit, auto-uplink (auto MDI/MDI-X), opslaan en verder, 4,1 Mbit-pakketbuffer, IGMP-spionage, lusdetectie, LLDP ondersteuning, LLDP-MED, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, MLD spionage, zonder ventilator, datatransport, BOOTP-ondersteuning, anti-ARP-spoofing, automatische stem-VLAN, gespiegelde poorten, WRR, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware die kan worden opgewaardeerd, SNTP-ondersteuning, TFTP-cliënt, QoS, ACL-ondersteuning, DHCP-spionage, Safeguard Engine, D-Link Green Technology, DoS bescherming tegen aanval
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
28 cm x 12.6 cm x 4.4 cm
Gewicht
980 g
Lokalisatie
Europa
Algemeen
Type apparaat
Switch - 10 poorten - intelligent
Type bijvoegsel
Desktop, rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
8 x 10/100/1000 + 2 x Gigabit SFP
Prestaties
Omschakelcapaciteit: 20 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 14.88 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 14.88 Mpps
Capaciteit
Statische MAC-invoergegevens: tot 256
IGMP-groepen: 256
QoS hardware queues per poort: 8
ACL-regels: 768
IGMP-groepen: 256
QoS hardware queues per poort: 8
ACL-regels: 768
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
10000 bytes
Routingprotocol
IGMP, IGMPv2, MLD, MLDv2, statische IP-routing
Protocol voor beheer op afstand
SNMP 1, SNMP 2c, SNMP 3, Telnet, CLI, TFTP, RMON 1
Encryptie-algoritme
TLS 1.0, SSL, SSL 2.0, SSL 3.0, MD5, TLS, TTLS
Authentificatiemethode
Secure Shell v.2 (SSH2), RADIUS, Extensible Authentication Protocol (EAP)
Voorzieningen
Full-duplexcapaciteit, auto-uplink (auto MDI/MDI-X), opslaan en verder, 4,1 Mbit-pakketbuffer, IGMP-spionage, lusdetectie, LLDP ondersteuning, LLDP-MED, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, MLD spionage, zonder ventilator, datatransport, BOOTP-ondersteuning, anti-ARP-spoofing, automatische stem-VLAN, gespiegelde poorten, WRR, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware die kan worden opgewaardeerd, SNTP-ondersteuning, TFTP-cliënt, QoS, ACL-ondersteuning, DHCP-spionage, Safeguard Engine, D-Link Green Technology, DoS bescherming tegen aanval
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
RAM
128 MB DDR3 SDRAM
Flashgeheugen
32 MB
Statuslampjes
Voeding, koppeling/activiteit/snelheid
Uitbreiding / Aansluiting
Interfaces
8 x 1000Base-T RJ-45
2 x 1000Base-X SFP
2 x 1000Base-X SFP
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
6.33 watt
Stroomverbruik stand-by
2.07 watt
Diversen
MTBF (gemiddelde tijd tussen twee storingen)
1,380,058 uur
Conformiteitsnormen
VCCI Class A, FCC klasse A-gecertificeerd, BSMI, CCC, CB, UL
Lokalisatie
Europa
Software / Systeemvereisten
Software meegeleverd
D-Link Network Assistant
Afmetingen & gewicht
Breedte
28 cm
Diepte
12.6 cm
Hoogte
4.4 cm
Gewicht
980 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
-5 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95%
Min. opslagtemperatuur
-20 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
0 - 95%
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
