Productnummer: 3456881

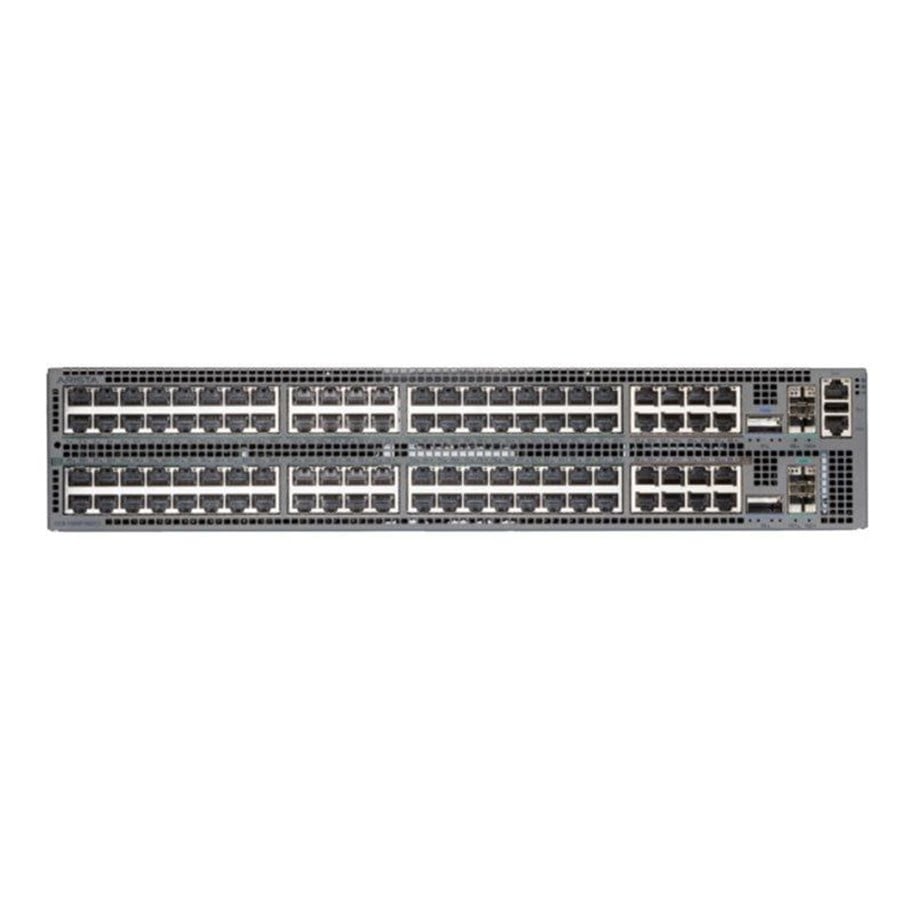

Arista Networks Arista Cognitive Campus 720XP-96ZC2
Switch, L3, Beheerd, 80 x 100/1000/2.5G (PoE+) + 4 x 25 Gigabit SFP (uplink) + 2 x 100 Gigabit QSFP (uplink) + 16 x 100/1000/2.5G/5G (PoE+), luchtstroom van voorkant naar achterkant, rack-uitvoering, 4PPoE (1722 W)
42.571,54 €
35.183,09 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd
Designed for the demands of the interconnected IoT enabled campus, the 720XP series delivers wirespeed connectivity for all campus user workloads under the management and monitoring of Arista cognitive campus services. The suite of platforms offers a variety of connection options for user desktops, POE appliances and IoT devices.Arista's cornerstone EOS combines cognitive campus network features and advanced merchant silicon to deliver critical services that automate deployment, configuration, visibility troubleshooting and security. The Arista cognitive campus architecture encompasses spline, leaf and wireless infrastructure platforms, telemetry and analytics, and a single image EOS that supports an expanding feature set and partner ecosystem of solutions.
Producent
Productnummer
3456881
Model
CCS-720XP-96ZC2-M-S-4F-JPN
Naar de website van de producent
Productbeschrijving
Arista Cognitive Campus 720XP-96ZC2 - switch - 96 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 96 poorten - L3 - Beheerd
Type bijvoegsel
Luchtstroom van voorkant naar achterkant rack-uitvoering 2U
Subtype
5 Gigabit Ethernet
Poorten
80 x 100/1000/2.5G (PoE+) + 4 x 25 Gigabit SFP (uplink) + 2 x 100 Gigabit QSFP (uplink) + 16 x 100/1000/2.5G/5G (PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
4PPoE
PoE-budget
1722 W
Prestaties
Verwerkingscapaciteit: 1160 Gbps
Pakketjes per seconde: 863 Mpps
Latentie: 1.2 µs
Pakketbuffergrootte: 12 MB
Schakelbandbreedte: 2240 Gbps
Pakketjes per seconde: 863 Mpps
Latentie: 1.2 µs
Pakketbuffergrootte: 12 MB
Schakelbandbreedte: 2240 Gbps
Capaciteit
802.1q virtuele verbindingen (VLAN's): 4096
Linkaggregatiepoorten per kanaal: 64
IPv4-routes (Unicast LPM): 16000
Host-IPv4-routes: 16000
IPv6-routes (Unicast LPM): 8000
IGMP-groepen: 4000
IPv4-groepen (Multicast): 8000
ACL-invoergegevens (ingang): 9000
ACL-invoergegevens (uitgang): 1000
Koppelingverzamelgroepen: 224
Poorten per MLAG: 128
VXLAN tunnels: 4000
Equal-Cost Multipathing (ECMP)-manieren: 64
Maximaal aantal mirroring-sessies: 16
QoS-voorkeurswachtrijen per poort: 8
Linkaggregatiepoorten per kanaal: 64
IPv4-routes (Unicast LPM): 16000
Host-IPv4-routes: 16000
IPv6-routes (Unicast LPM): 8000
IGMP-groepen: 4000
IPv4-groepen (Multicast): 8000
ACL-invoergegevens (ingang): 9000
ACL-invoergegevens (uitgang): 1000
Koppelingverzamelgroepen: 224
Poorten per MLAG: 128
VXLAN tunnels: 4000
Equal-Cost Multipathing (ECMP)-manieren: 64
Maximaal aantal mirroring-sessies: 16
QoS-voorkeurswachtrijen per poort: 8
MAC-adrestabelgrootte
112.000 invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
RSTP, MSTP, IGMP, IGMPv2, IGMPv3, OSPF, OSPFv3, BGP, BGP-MP, IS-IS, RIP-2, ECMP, Bidirectional Forwarding Detection (BFD), PIM-SM, PIM-SSM, VRRP, Virtual ARP (VARP), PBR (Policy Based Routing), URPF, GRE
Protocol voor beheer op afstand
CLI, Telnet, SNMP 1, SNMP 2, SNMP 3, SSH-2, IPv6
Voorzieningen
Ondersteuning RSTP, RPVST+, MSTP-ondersteuning, Q-in-Q tunneling, LACP, MLAG, LLDP ondersteuning, VLAN-trunking, datatransport, IGMP-spionage, Storm Control, VXLAN, VRF, LANZ, Syslog-ondersteuning, verkeer spiegelen, ZTP, gespiegelde poorten, AEM suite, sFlow, IPFIX, zelfconfigureren/herstellen vanaf USB, SDN, OpenFlow-ondersteuning, compatibel met OpenStack, PTP, EVPN, ACL-ondersteuning, CPP, ondersteuning voor MAC en IP-ACL's, 802.1x authenticatie, DHCP relay, verificatie van MAC-adres, ARP-ondersteuning, QoS, DSCP based QoS, ECN, DSCP based CoS, QoS trust-modus, SPQ, WRR, PFC, snelheidsbeperking op beleidsbasis, CloudVision, AAA, ISSU
Conformiteitsnormen
IEEE 802.1s, IEEE 802.1w, IEEE 802.3bt, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3x, SMPTE-2059-2, IEEE 802.1x, IEEE 802.1p, IEEE 1588-2008, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3u, IEEE 802.3z
Stroom
(50/60 Hz)
Stroomredundantie
Ja
Afmetingen (BxDxH)
48.3 cm x 40.5 cm x 8.8 cm
Gewicht
14.1 kg
Lokalisatie
Japan
Algemeen
Type apparaat
Switch - 96 poorten - L3 - Beheerd
Type bijvoegsel
Luchtstroom van voorkant naar achterkant rack-uitvoering 2U
Subtype
5 Gigabit Ethernet
Poorten
80 x 100/1000/2.5G (PoE+) + 4 x 25 Gigabit SFP (uplink) + 2 x 100 Gigabit QSFP (uplink) + 16 x 100/1000/2.5G/5G (PoE+)
Voeding via ethernet (Power Over Ethernet, PoE)
4PPoE
PoE-budget
1722 W
Prestaties
Verwerkingscapaciteit: 1160 Gbps
Pakketjes per seconde: 863 Mpps
Latentie: 1.2 µs
Pakketbuffergrootte: 12 MB
Schakelbandbreedte: 2240 Gbps
Pakketjes per seconde: 863 Mpps
Latentie: 1.2 µs
Pakketbuffergrootte: 12 MB
Schakelbandbreedte: 2240 Gbps
Capaciteit
802.1q virtuele verbindingen (VLAN's): 4096
Linkaggregatiepoorten per kanaal: 64
IPv4-routes (Unicast LPM): 16000
Host-IPv4-routes: 16000
IPv6-routes (Unicast LPM): 8000
IGMP-groepen: 4000
IPv4-groepen (Multicast): 8000
ACL-invoergegevens (ingang): 9000
ACL-invoergegevens (uitgang): 1000
Koppelingverzamelgroepen: 224
Poorten per MLAG: 128
VXLAN tunnels: 4000
Equal-Cost Multipathing (ECMP)-manieren: 64
Maximaal aantal mirroring-sessies: 16
QoS-voorkeurswachtrijen per poort: 8
Linkaggregatiepoorten per kanaal: 64
IPv4-routes (Unicast LPM): 16000
Host-IPv4-routes: 16000
IPv6-routes (Unicast LPM): 8000
IGMP-groepen: 4000
IPv4-groepen (Multicast): 8000
ACL-invoergegevens (ingang): 9000
ACL-invoergegevens (uitgang): 1000
Koppelingverzamelgroepen: 224
Poorten per MLAG: 128
VXLAN tunnels: 4000
Equal-Cost Multipathing (ECMP)-manieren: 64
Maximaal aantal mirroring-sessies: 16
QoS-voorkeurswachtrijen per poort: 8
MAC-adrestabelgrootte
112.000 invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
RSTP, MSTP, IGMP, IGMPv2, IGMPv3, OSPF, OSPFv3, BGP, BGP-MP, IS-IS, RIP-2, ECMP, Bidirectional Forwarding Detection (BFD), PIM-SM, PIM-SSM, VRRP, Virtual ARP (VARP), PBR (Policy Based Routing), URPF, GRE
Protocol voor beheer op afstand
CLI, Telnet, SNMP 1, SNMP 2, SNMP 3, SSH-2, IPv6
Authentificatiemethode
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Voorzieningen
Ondersteuning RSTP, RPVST+, MSTP-ondersteuning, Q-in-Q tunneling, LACP, MLAG, LLDP ondersteuning, VLAN-trunking, datatransport, IGMP-spionage, Storm Control, VXLAN, VRF, LANZ, Syslog-ondersteuning, verkeer spiegelen, ZTP, gespiegelde poorten, AEM suite, sFlow, IPFIX, zelfconfigureren/herstellen vanaf USB, SDN, OpenFlow-ondersteuning, compatibel met OpenStack, PTP, EVPN, ACL-ondersteuning, CPP, ondersteuning voor MAC en IP-ACL's, 802.1x authenticatie, DHCP relay, verificatie van MAC-adres, ARP-ondersteuning, QoS, DSCP based QoS, ECN, DSCP based CoS, QoS trust-modus, SPQ, WRR, PFC, snelheidsbeperking op beleidsbasis, CloudVision, AAA, ISSU
Conformiteitsnormen
IEEE 802.1s, IEEE 802.1w, IEEE 802.3bt, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3x, SMPTE-2059-2, IEEE 802.1x, IEEE 802.1p, IEEE 1588-2008, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3u, IEEE 802.3z
RAM
4 GB
Flashgeheugen
4 GB
Uitbreiding / Aansluiting
Interfaces
1 x 1000Base-T RJ-45 beheer
1 x console beheer
1 x USB
80 x 100/1000/2.5G RJ-45 PoE+ - 60 W
4 x 25Gbit LAN SFP uplink
2 x 100Gbit LAN QSFP uplink
16 x 100/1000/2.5G/5G RJ-45 PoE+ - 60 W
1 x console beheer
1 x USB
80 x 100/1000/2.5G RJ-45 PoE+ - 60 W
4 x 25Gbit LAN SFP uplink
2 x 100Gbit LAN QSFP uplink
16 x 100/1000/2.5G/5G RJ-45 PoE+ - 60 W
Stroom
Voeding
Interne stroomvoorziening - hot-plug
Aantal geïnstalleerd
2
Max. aantal ondersteund
2
Stroomredundantie
Ja
Stroomredundantieschema
1+1
Geleverde energie
1050 Watt
Vereiste netspanning
(50/60 Hz)
Energieverbruik tijdens gebruik
245 Watt
80 PLUS-Certificatie
80 PLUS Platinum
Diversen
Conformiteitsnormen
FCC, EN 61000-3-2, EN 61000-3-3, EN55022, EN61000-3-11, EN61000-3-12, EN 300 386, EN 60950-1, EN55024, IEC 60950-1, UL/CSA60950-1, CB, NRTL, BSMI, C-Tick, CCC, MSIP, EAC, VCCI, EMC 2004/108/EC, LVD 2006/95/EC, RoHS 2011/65/EU, WEEE 2012/19/EU
Lokalisatie
Japan
Afmetingen & gewicht
Breedte
48.3 cm
Diepte
40.5 cm
Hoogte
8.8 cm
Gewicht
14.1 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - onderdelen en werkuren - 1 jaar - response-tijd: 10 werkdagen
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95%
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
