Productnummer: 3456884

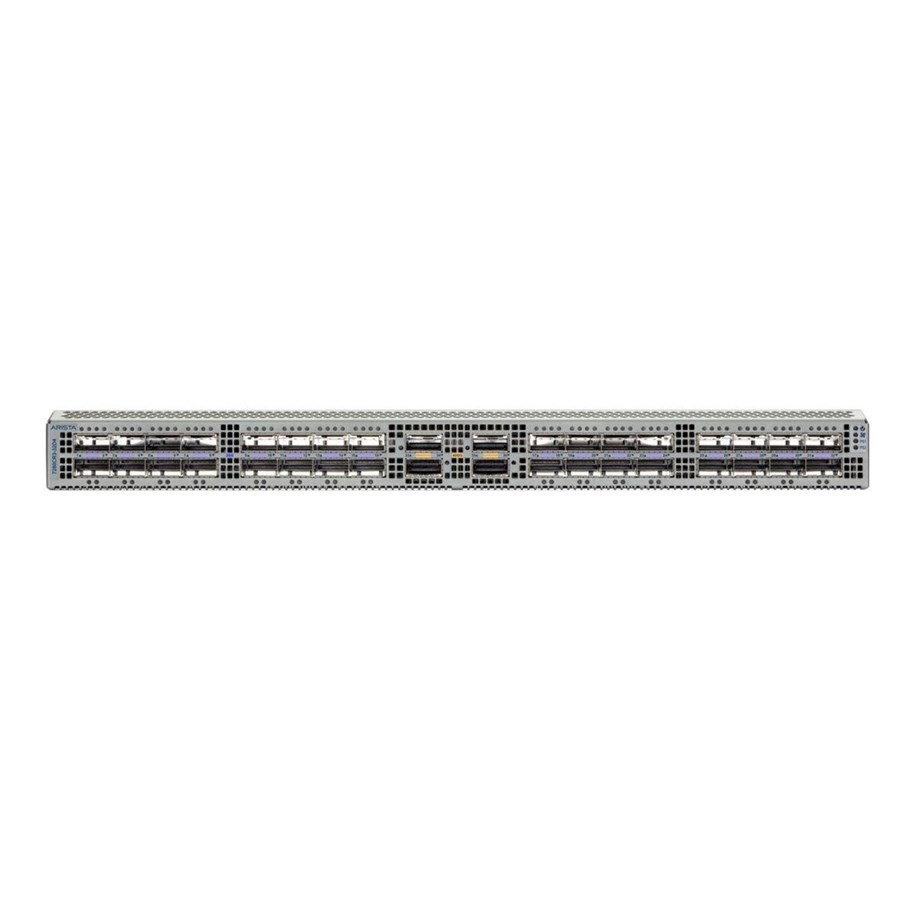

Arista Networks Arista 7280R3 Series 7280CR3-32D4
Switch, L3, Beheerd, 32 x 100 Gigabit QSFP + 4 x 400 Gigabit QSFP-DD (uplink), luchtstroom van achterkant naar voorkant, rack-uitvoering
153.686,19 €
127.013,38 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd
The Arista 7280R3 Series of fixed systems, including the 7280R3 and the 7280R3K, are key components of the Arista 7000 Series portfolio of data center switches. The Arista 7280R3 Series are purpose built 25G, 100G and 400G systems built for the highest performance environments, and to meet the needs of the largest scale data centers and service providers They deliver scalable L2 and L3 resources and high density with advanced features for network monitoring, precision timing and network virtualization to deliver scalable and deterministic network performance while simplifying designs and reducing Opex. The 7280R3 capabilities address the requirements for modern networking and rich multi-media content delivery requiring a lossless forwarding solution in a compact and energy efficient form factor
Producent
Productnummer
3456884
Model
DCS-7280CR3-32D4-R
Naar de website van de producent
Productbeschrijving
Arista 7280R3 Series 7280CR3-32D4 - switch - 32 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 32 poorten - L3 - Beheerd
Type bijvoegsel
Luchtstroom van achterkant naar voorkant rack-uitvoering 1U
Subtype
100 Gigabit Ethernet
Poorten
32 x 100 Gigabit QSFP + 4 x 400 Gigabit QSFP-DD (uplink)
Prestaties
Verwerkingscapaciteit: 4,8 Tbps
Pakketjes per seconde: 2 Bpps
Latentie: 3.8 µs
Pakketjes per seconde: 2 Bpps
Latentie: 3.8 µs
Capaciteit
Host-IPv4-routes: 1300000
Host IPv6 routes (Unicast): 440000
IPv4 routes (Unicast LPM): 1300000
IPv6 routes (Unicast LPM): 440000
LAG-groepen: 1152
Virtuele interfaces (VLAN's): 4096
Multicast routes: 128000
ACL-invoergegevens: 24000
Poorten per MLAG: 128
Prioriteitwachtrijen per poort: 8
Mximaal aantal memberpoorten per LAG: 32
Host IPv6 routes (Unicast): 440000
IPv4 routes (Unicast LPM): 1300000
IPv6 routes (Unicast LPM): 440000
LAG-groepen: 1152
Virtuele interfaces (VLAN's): 4096
Multicast routes: 128000
ACL-invoergegevens: 24000
Poorten per MLAG: 128
Prioriteitwachtrijen per poort: 8
Mximaal aantal memberpoorten per LAG: 32
MAC-adrestabelgrootte
224.000 invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, statische IP-routing, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, MSDP, ECMP, PBR (Policy Based Routing), MLDv2, Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP (VARP), RSVP, BGP-MP
Protocol voor beheer op afstand
SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Voorzieningen
Datatransport, routering, ARP-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, IPv6-ondersteuning, sFlow, ondersteuning RSTP, MSTP-ondersteuning, gebeurtenislogboek, DHCP-spionage, ACL-ondersteuning, QoS, ECMP, BFD, Rapid PVST+, IPv4-ondersteuning, LLDP ondersteuning, DHCP relay, LACP, MIB, VRF, SPQ, overtollige, zonder uitschakelen verwisselbare ventilators, PTP, hot-swappable 3 ventilators, Storm Control, ECN, Link Aggregation, SDN, 8 GB-pakketbuffer, AAA, VLAN Double Tagging (Q-in-Q), CPP, MLAG, Enhanced Latency Analyzer and Microburst Detection (LANZ), Advanced Monitoring and TAP Aggregation (DANZ), AEM suite, CloudVision, blokkering HOL, SDCN, VOQ, ZTP, 2+1 redundant ventilators, WRR, Accelerated sFlow, SFC, SFR, evenementenbeheer, VLAN-trunking, DSCP based QoS, sFlow v4
Conformiteitsnormen
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 1588-2008, IEEE 802.3by, IEEE 802.3bs, IEEE 802.3cm
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Stroomredundantie
Ja
Afmetingen (BxDxH)
43.99 cm x 55.83 cm x 4.37 cm
Gewicht
12.27 kg
Algemeen
Type apparaat
Switch - 32 poorten - L3 - Beheerd
Type bijvoegsel
Luchtstroom van achterkant naar voorkant rack-uitvoering 1U
Subtype
100 Gigabit Ethernet
Poorten
32 x 100 Gigabit QSFP + 4 x 400 Gigabit QSFP-DD (uplink)
Prestaties
Verwerkingscapaciteit: 4,8 Tbps
Pakketjes per seconde: 2 Bpps
Latentie: 3.8 µs
Pakketjes per seconde: 2 Bpps
Latentie: 3.8 µs
Capaciteit
Host-IPv4-routes: 1300000
Host IPv6 routes (Unicast): 440000
IPv4 routes (Unicast LPM): 1300000
IPv6 routes (Unicast LPM): 440000
LAG-groepen: 1152
Virtuele interfaces (VLAN's): 4096
Multicast routes: 128000
ACL-invoergegevens: 24000
Poorten per MLAG: 128
Prioriteitwachtrijen per poort: 8
Mximaal aantal memberpoorten per LAG: 32
Host IPv6 routes (Unicast): 440000
IPv4 routes (Unicast LPM): 1300000
IPv6 routes (Unicast LPM): 440000
LAG-groepen: 1152
Virtuele interfaces (VLAN's): 4096
Multicast routes: 128000
ACL-invoergegevens: 24000
Poorten per MLAG: 128
Prioriteitwachtrijen per poort: 8
Mximaal aantal memberpoorten per LAG: 32
MAC-adrestabelgrootte
224.000 invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, statische IP-routing, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, MSDP, ECMP, PBR (Policy Based Routing), MLDv2, Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP (VARP), RSVP, BGP-MP
Protocol voor beheer op afstand
SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
Datatransport, routering, ARP-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, IPv6-ondersteuning, sFlow, ondersteuning RSTP, MSTP-ondersteuning, gebeurtenislogboek, DHCP-spionage, ACL-ondersteuning, QoS, ECMP, BFD, Rapid PVST+, IPv4-ondersteuning, LLDP ondersteuning, DHCP relay, LACP, MIB, VRF, SPQ, overtollige, zonder uitschakelen verwisselbare ventilators, PTP, hot-swappable 3 ventilators, Storm Control, ECN, Link Aggregation, SDN, 8 GB-pakketbuffer, AAA, VLAN Double Tagging (Q-in-Q), CPP, MLAG, Enhanced Latency Analyzer and Microburst Detection (LANZ), Advanced Monitoring and TAP Aggregation (DANZ), AEM suite, CloudVision, blokkering HOL, SDCN, VOQ, ZTP, 2+1 redundant ventilators, WRR, Accelerated sFlow, SFC, SFR, evenementenbeheer, VLAN-trunking, DSCP based QoS, sFlow v4
Conformiteitsnormen
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 1588-2008, IEEE 802.3by, IEEE 802.3bs, IEEE 802.3cm
RAM
8 GB (geïnstalleerd) / 64 GB (max.)
Flashgeheugen
8 GB
Ingebouwde apparaten
120 GB SSD
Uitbreiding / Aansluiting
Interfaces
1 x beheer (Gigabit LAN) RJ-45
1 x beheer (RS-232) RJ-45
4 x 400Gbit LAN QSFP-DD uplink
32 x 100Gbit LAN QSFP
1 x USB
1 x beheer (RS-232) RJ-45
4 x 400Gbit LAN QSFP-DD uplink
32 x 100Gbit LAN QSFP
1 x USB
Stroom
Voeding
Interne stroomvoorziening - hot-plug
Aantal geïnstalleerd
2
Max. aantal ondersteund
2
Stroomredundantie
Ja
Stroomredundantieschema
1+1
Geleverde energie
1000 Watt
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik tijdens gebruik
535 Watt
Functies
80 PLUS Platinum-efficiëntie
Diversen
Conformiteitsnormen
VCCI, C-Tick, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, EMC, FCC, UL 60950-1, IEC 60950-1, KC, NRTL, EAC, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, EN 62368-1, IEC 62368-1, EN 55032, EN 55035, CSA 60950-1
Afmetingen & gewicht
Breedte
43.99 cm
Diepte
55.83 cm
Hoogte
4.37 cm
Gewicht
12.27 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - 1 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95%
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
