Productnummer: 3524949

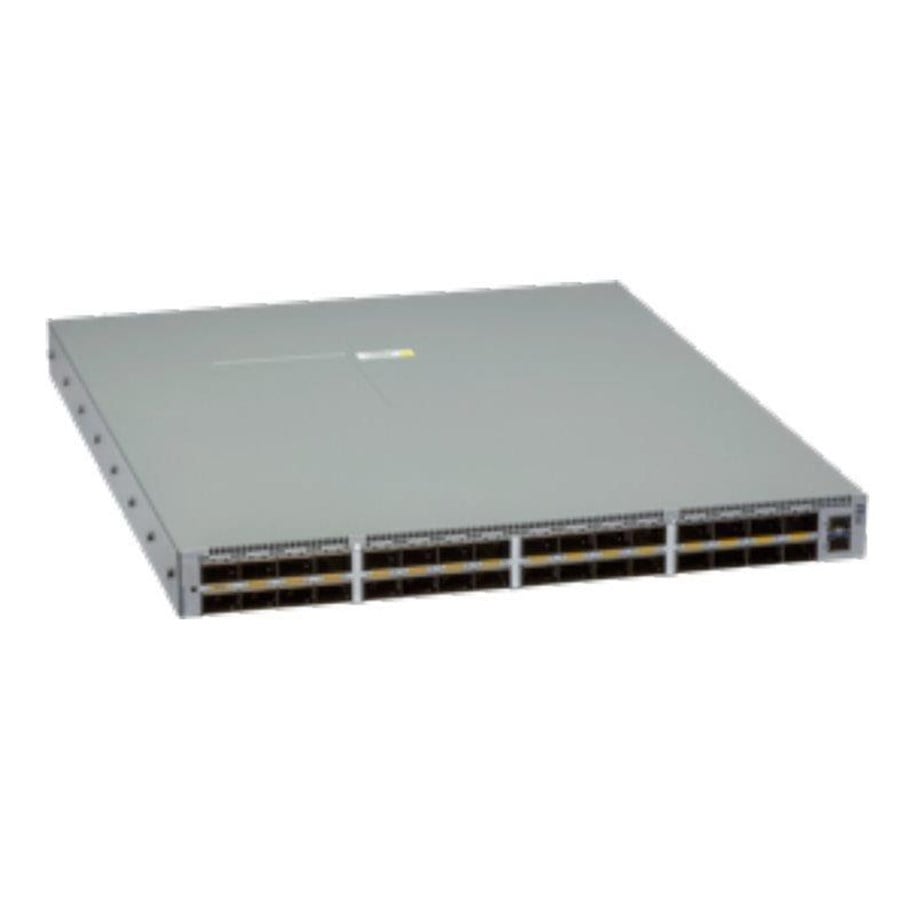

Arista Networks Arista 7050X4 Series 7050DX4M-32S
Switch, met MACsec, L3, Beheerd, 32 x 400 Gigabit QSFP-DD + 2 x SFP+, luchtstroom van voorkant naar achterkant, rack-uitvoering
186.851,75 €
154.422,93 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 3 - 4 werkdagen levertijd
The Arista 7050X4 Series, specifically the 7050DX4M-32S model, is designed to optimize network performance with features tailored for modern applications. This rack-mountable switch provides throughput of 12.8 Tbps, ensuring data-intensive operations are handled with efficiency. With support for 400 Gigabit Ethernet on 32 ports, along with comprehensive routing protocols including OSPF and BGP, this model is equipped for scalable networking solutions. The built-in extensible operating system (EOS) and Software Defined Cloud Networking (SDCN) empower users to adapt their network architectures seamlessly as demands evolve.Additionally, the 7050DX4M-32S supports MACsec encryption for enhanced security on designated ports, safeguarding sensitive information across the network. An array of management interfaces including SNMP, CLI, and SSH-2 allows for smooth remote management and monitoring. Combined with features such as dynamic buffer allocation and a flexible universal forwarding table, this switch delivers performance and reliability for mission-critical applications in diverse environments.
Producent
Productnummer
3524949
Model
DCS-7050DX4M-32S-F
Naar de website van de producent
Productbeschrijving
Arista 7050X4 Series 7050DX4M-32S - switch - met MACsec - 34 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 34 poorten - L3 - Beheerd
Type bijvoegsel
Luchtstroom van voorkant naar achterkant rack-uitvoering 1U
Subtype
400 Gigabit Ethernet
Poorten
32 x 400 Gigabit QSFP-DD + 2 x SFP+
Prestaties
Verwerkingscapaciteit: 12,8 Tbps
Pakketjes per seconde: 5.3 Bpps
Latentie: 900 ns
Pakketjes per seconde: 5.3 Bpps
Latentie: 900 ns
Capaciteit
Virtuele interfaces (VLAN's): 4096
Pakketbuffergeheugen: 132 MB
Pakketbuffergeheugen: 132 MB
MAC-adrestabelgrootte
128k invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
BGP, OSPF, IPv4-to-IPv6 Multicast
Protocol voor beheer op afstand
SNMP 1, SNMP 2, SNMP 3, IPv6, Telnet, SSH-2, Syslog, CLI
Voorzieningen
Dynamische bufferallocatie, SDCN, flexibele UFT, CloudVision, EOS, routering
Stroomredundantie
Ja
Afmetingen (BxDxH)
43.9 cm x 50.56 cm x 4.45 cm
Gewicht
11.1 kg
Systeemvereisten
Arista EOS 4.30.1
Algemeen
Type apparaat
Switch - 34 poorten - L3 - Beheerd
Type bijvoegsel
Luchtstroom van voorkant naar achterkant rack-uitvoering 1U
Subtype
400 Gigabit Ethernet
Poorten
32 x 400 Gigabit QSFP-DD + 2 x SFP+
Prestaties
Verwerkingscapaciteit: 12,8 Tbps
Pakketjes per seconde: 5.3 Bpps
Latentie: 900 ns
Pakketjes per seconde: 5.3 Bpps
Latentie: 900 ns
Capaciteit
Virtuele interfaces (VLAN's): 4096
Pakketbuffergeheugen: 132 MB
Pakketbuffergeheugen: 132 MB
MAC-adrestabelgrootte
128k invoergegevens
Jumbo Frame-ondersteuning
9216 bytes
Routingprotocol
BGP, OSPF, IPv4-to-IPv6 Multicast
Protocol voor beheer op afstand
SNMP 1, SNMP 2, SNMP 3, IPv6, Telnet, SSH-2, Syslog, CLI
Voorzieningen
Dynamische bufferallocatie, SDCN, flexibele UFT, CloudVision, EOS, routering
RAM
16 GB
Flashgeheugen
16 GB
Uitbreiding / Aansluiting
Interfaces
1 x beheer (Gigabit LAN) RJ-45
1 x beheer (RS-232) RJ-45
1 x USB
32 x 40Gbit LAN QSFP-DD MACsec encryption is supported on ports 1-8 and 25-32
2 x QSFP+
1 x beheer (RS-232) RJ-45
1 x USB
32 x 40Gbit LAN QSFP-DD MACsec encryption is supported on ports 1-8 and 25-32
2 x QSFP+
Stroom
Voeding
Interne stroomvoorziening - hot-plug
Aantal geïnstalleerd
2
Max. aantal ondersteund
2
Stroomredundantie
Ja
Stroomredundantieschema
1+1
Geleverde energie
2400 Watt
Energieverbruik tijdens gebruik
423 Watt
Diversen
Conformiteitsnormen
FCC-A, ICES-003 issue 7, EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3, KS C 9832, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015+A1:2020, EN 300 386, TEC/SD/DD/EMC-221, CNS 15936, BS EN 55032:2015+A11:2020, BS EN IEC 61000-3-2, BS EN 61000-3-3, EN 55035:2017+A11:2020, KS C 9835, BS EN 55035:2017+A11:2020, EN 62368-1:2020+A11:2020, EN 62368-1:2014+A11:2017, IEC 62368-1:2018, KC 62368-1, UL/CSA 62368-1, NOM 019-SCFI-1998, CNS 15598-1, AS/NZS 62368.1:2022, BSMI, FCC klasse A-gecertificeerd, ICES-003, KCC, NRTL, RCM, UKCA, VCCI, TEC, ANATEL, ICASA, NOM, LVD 2014/35/EU, EMC 2014/30/EU, WEEE 2012/19/EU, RoHS 2011/65/EU, Directive 2015/863/EU
Software / Systeemvereisten
Benodigd besturingssysteem
Arista EOS 4.30.1
Afmetingen & gewicht
Breedte
43.9 cm
Diepte
50.56 cm
Hoogte
4.45 cm
Gewicht
11.1 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie hardware - 1 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
5 - 90%
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
