Productnummer: 3448365

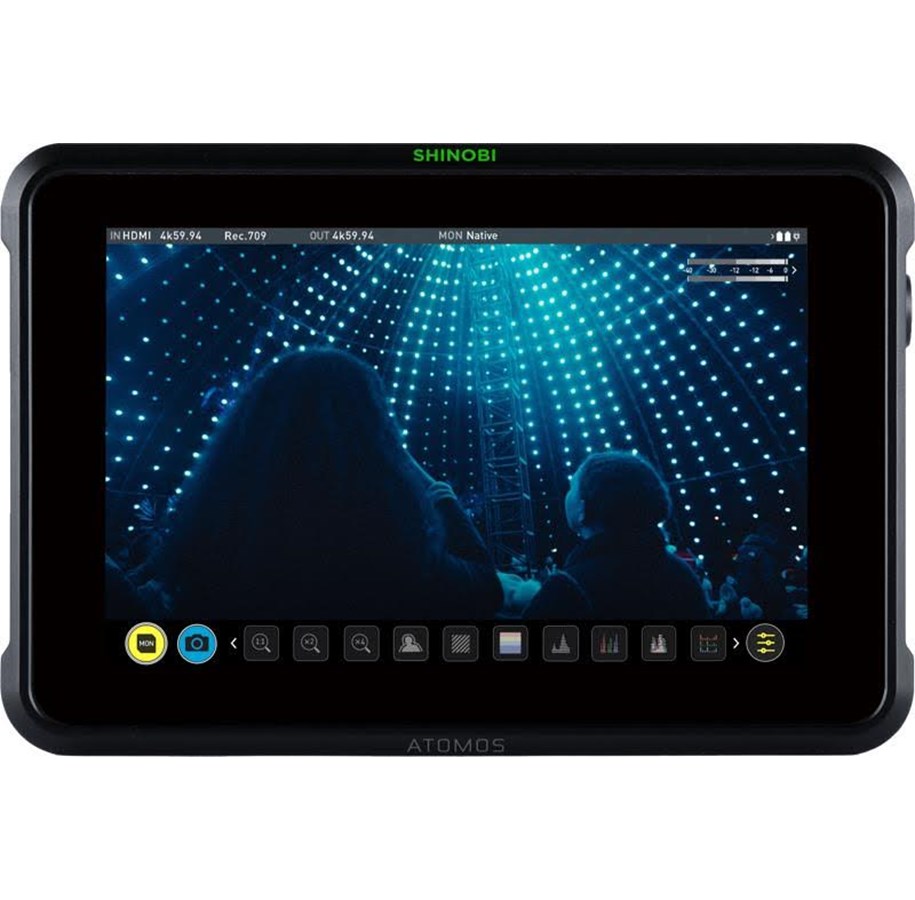

Atomos Shinobi 7 - 7” 4K HDMI & SDI HDR Photo & Video Monitor
Foto- & videomonitor met een 7-inch HDR-display met 2200 nits, met 4K HDMI- en SDI-connectiviteit plus bidirectionele HDMI/SDI-cross-conversie voor flexibele workflows.
Atomos Shinobi 7 - 7” 4K HDMI & SDI HDR Photo & Video Monitor combineert een helder, gekalibreerd scherm met AtomOS 10-monitortools en touchscreen-camerabediening (via optionele kabel), waardoor hij ideaal is als regie- of focus-puller-monitor, als program/preview-display voor videoswitchers, of als confidence monitor voor vloggers.
- 2200-nit HDR-scherm dat bij daglicht goed zichtbaar is
- Ondersteunt tot 4Kp60 via HDMI 2.0-ingang
- 3G-SDI-ondersteuning tot 2Kp60
- Bidirectionele HDMI/SDI-signaal cross-conversie
- HDR-monitoring voor Log/PQ/HLG-signalen met meer dan 10 stops realtime dynamisch bereik
- Ingebouwde 3D LUT-ondersteuning met SD-kaart laden (tot 8 LUTs)
- Dubbele NP-F-batterijsloten voor continue voeding en hot-swapping
- Uitgebreide scopes en belichtingstools waaronder waveform, RGB parade, vectorscope, histogram, valse kleur, zebra’s en zoom punch-in
Krijg een helder, nauwkeurig beeld van je shot en houd controle over focus, kadrering en belichting op de set of in het veld.
Het product is niet meer leverbaar
BIG, Bright and Beautiful
Shinobi 7 expands the screen real estate of Shogun 7 with the lightweight monitor-only functionality of the original Shinobi, taking it to the next level. With a calibrated peak brightness of 2200 nits, Shinobi 7 can be used in the brightest environments without the need for a sun hood or Log-to-HDR conversion for monitoring.
With its large, bright, beautiful, and lightweight display, the configuration possibilities are endless. It is ideal as a director’s or focus puller’s monitor, a program or preview display for video switchers, and a perfect solution for vloggers presenting themselves in front of the camera.
Camera Controls at Your Fingertips
Control your favorite cameras using the intuitive touchscreen on Shinobi 7, designed to give you quick access to the most critical camera functions. Focus on capturing beautiful images while making dynamic adjustments to aperture, white balance, shutter angle, and ND.
With the optional Atomos USB-C to serial cable, support is available for Z CAM E2 series cameras, providing direct control over all menu configurations.
The additional USB and RJ45 control ports on Shinobi 7 also support future expansion, allowing for more touchscreen camera control options as new features are introduced.
HDR in the Field
The Shinobi 7 display delivers an impressive dynamic range of 10+ stops in real time from Log/PQ/HLG signals. Combined with its unique HDR monitoring features, Shinobi 7 simplifies the complexity of shooting Log and HDR content and helps you replicate post-production workflows at the moment it matters most — while you are shooting.
With Adaptive Cooling, you can prioritize either reduced fan noise or maximum screen brightness, letting the technology take care of itself so you can focus on telling the story.
Built-in 3D LUT Box
In addition to Log-to-HDR conversion, you can use your own custom 3D LUT to output downstream to other devices or live feeds. Load up to eight custom LUTs at any time via the SD card slot and instantly switch between them to maintain your creative intent.
When used in selfie mode, the large screen acts as a perfect confidence monitor, allowing you to apply a LUT to your camera output and achieve your desired LOOK when recording pieces to camera.
The Best of AtomOS 10
Shinobi 7 runs on the fast and intuitive AtomOS 10 platform and is packed with a comprehensive range of scopes and simple one-touch operations.
Monitoring tools include:
Focus Peaking
Focus Assist edge enhancement
4:1 / 2:1 / 1:1 zoom punch-in
Zebra
False Color
Cine and social frame guides
SMPTE Safe Area
Waveform
RGB Parade
Vectorscope
Anamorphic de-squeeze
3D LUT support
Atomos “Analysis” Mode
We understand how important it is to see exactly what you are recording at all times. With the new Analysis feature, you can simultaneously view your image alongside a waveform, histogram, and vectorscope, ensuring full control over your exposure and color.
You can even switch between different waveform, histogram, and vectorscope options on the fly with a single tap.
Stream
Enhance your video conferences using the optional Atomos Connect 4K to convert Shinobi 7’s HDMI output to USB, providing plug-and-play UVC (USB Video Class) output for streaming on your computer.
Easily deliver a professional cinematic look and elevate the quality of your video calls.
Continuous Power
With dual battery slots, you can hot-swap batteries during recording so you never run out of power. Shinobi is designed from the ground up to optimize battery consumption during monitoring, with both slots working together to provide all-day operation.
The dedicated locking DC jack input allows connection to on-set power supplies and can be used with the optional DC to D-Tap cable and V-lock batteries for field power solutions.
Pro I/O and Cross Conversion
With support for up to 4Kp60 via HDMI input, Shinobi 7 integrates seamlessly into any video workflow by enabling cross conversion between 4K HDMI and 3G-SDI signals.
Output low-latency video signals and bring HDMI cameras into SDI workflows — or vice versa — without the need for additional converters.
Factory and User Calibration
Shinobi 7 is factory calibrated to Rec.709 and also supports user calibration via the free Atomos Calibration software for ongoing accuracy, as all displays can drift over time.
Using the optional USB-A or USB-C to serial cable and X-Rite i1Display Pro/Plus, the software automates screen calibration to ensure accurate and reliable monitoring.
Key Features
2200 nits HDR / daylight-viewable screen
HDMI 2.0 support up to 4Kp60, 3G-SDI support up to 2Kp60
Bi-directional HDMI ↔ SDI cross conversion
Dual NP-F battery slots for continuous power
Touchscreen camera control via optional cable (Iris, WB, shutter speed, ND)
3D LUT support with preview and loop-out
Exposure tools: histogram, waveform, false color, zebras
Focus pulling assistance with 4:1, 2:1, 1:1 zoom
Headphone monitoring of camera audio
Shinobi 7 expands the screen real estate of Shogun 7 with the lightweight monitor-only functionality of the original Shinobi, taking it to the next level. With a calibrated peak brightness of 2200 nits, Shinobi 7 can be used in the brightest environments without the need for a sun hood or Log-to-HDR conversion for monitoring.
With its large, bright, beautiful, and lightweight display, the configuration possibilities are endless. It is ideal as a director’s or focus puller’s monitor, a program or preview display for video switchers, and a perfect solution for vloggers presenting themselves in front of the camera.
Camera Controls at Your Fingertips
Control your favorite cameras using the intuitive touchscreen on Shinobi 7, designed to give you quick access to the most critical camera functions. Focus on capturing beautiful images while making dynamic adjustments to aperture, white balance, shutter angle, and ND.
With the optional Atomos USB-C to serial cable, support is available for Z CAM E2 series cameras, providing direct control over all menu configurations.
The additional USB and RJ45 control ports on Shinobi 7 also support future expansion, allowing for more touchscreen camera control options as new features are introduced.
HDR in the Field
The Shinobi 7 display delivers an impressive dynamic range of 10+ stops in real time from Log/PQ/HLG signals. Combined with its unique HDR monitoring features, Shinobi 7 simplifies the complexity of shooting Log and HDR content and helps you replicate post-production workflows at the moment it matters most — while you are shooting.
With Adaptive Cooling, you can prioritize either reduced fan noise or maximum screen brightness, letting the technology take care of itself so you can focus on telling the story.
Built-in 3D LUT Box
In addition to Log-to-HDR conversion, you can use your own custom 3D LUT to output downstream to other devices or live feeds. Load up to eight custom LUTs at any time via the SD card slot and instantly switch between them to maintain your creative intent.
When used in selfie mode, the large screen acts as a perfect confidence monitor, allowing you to apply a LUT to your camera output and achieve your desired LOOK when recording pieces to camera.
The Best of AtomOS 10
Shinobi 7 runs on the fast and intuitive AtomOS 10 platform and is packed with a comprehensive range of scopes and simple one-touch operations.
Monitoring tools include:
Focus Peaking
Focus Assist edge enhancement
4:1 / 2:1 / 1:1 zoom punch-in
Zebra
False Color
Cine and social frame guides
SMPTE Safe Area
Waveform
RGB Parade
Vectorscope
Anamorphic de-squeeze
3D LUT support
Atomos “Analysis” Mode
We understand how important it is to see exactly what you are recording at all times. With the new Analysis feature, you can simultaneously view your image alongside a waveform, histogram, and vectorscope, ensuring full control over your exposure and color.
You can even switch between different waveform, histogram, and vectorscope options on the fly with a single tap.
Stream
Enhance your video conferences using the optional Atomos Connect 4K to convert Shinobi 7’s HDMI output to USB, providing plug-and-play UVC (USB Video Class) output for streaming on your computer.
Easily deliver a professional cinematic look and elevate the quality of your video calls.
Continuous Power
With dual battery slots, you can hot-swap batteries during recording so you never run out of power. Shinobi is designed from the ground up to optimize battery consumption during monitoring, with both slots working together to provide all-day operation.
The dedicated locking DC jack input allows connection to on-set power supplies and can be used with the optional DC to D-Tap cable and V-lock batteries for field power solutions.
Pro I/O and Cross Conversion
With support for up to 4Kp60 via HDMI input, Shinobi 7 integrates seamlessly into any video workflow by enabling cross conversion between 4K HDMI and 3G-SDI signals.
Output low-latency video signals and bring HDMI cameras into SDI workflows — or vice versa — without the need for additional converters.
Factory and User Calibration
Shinobi 7 is factory calibrated to Rec.709 and also supports user calibration via the free Atomos Calibration software for ongoing accuracy, as all displays can drift over time.
Using the optional USB-A or USB-C to serial cable and X-Rite i1Display Pro/Plus, the software automates screen calibration to ensure accurate and reliable monitoring.
Key Features
2200 nits HDR / daylight-viewable screen
HDMI 2.0 support up to 4Kp60, 3G-SDI support up to 2Kp60
Bi-directional HDMI ↔ SDI cross conversion
Dual NP-F battery slots for continuous power
Touchscreen camera control via optional cable (Iris, WB, shutter speed, ND)
3D LUT support with preview and loop-out
Exposure tools: histogram, waveform, false color, zebras
Focus pulling assistance with 4:1, 2:1, 1:1 zoom
Headphone monitoring of camera audio
