Atomos Ninja Shinobi 7 RX
Streamingmonitor levert een superhelder 7" HDR-touchscreen met ingebouwde draadloze video-ontvangst, HDMI en 3G-SDI I/O, en professionele AtomOS 11-monitortools voor realtime weergave op de set.
Atomos Ninja Shinobi 7 RX combineert een 1920 × 1200 display met hoge helderheid (tot 2200 nits) met low-latency 5GHz Wi‑Fi-koppeling met Atomos TX-RX-systemen of RTSP H.264-streams, waardoor hij geschikt is voor regie-monitoring, focus pulling, camerabediening en previewgebruik in videomixers.
- Draadloze ontvangst tot 4Kp30 of 1080p60 HDMI via 5GHz Wi‑Fi
- HDMI- en 3G-SDI-ingang en -uitgang
- Monitoring van 10+ stops dynamisch bereik vanuit Log/PQ/HLG, plus Rec.709-ondersteuning
- Ingebouwde 3D LUT-box met aangepaste LUT’s en kalibratie op het apparaat
- AtomOS 11-tools: waveform, histogram, vectorscope, EL Zone, ARRI valse kleur, frame guides, anamorphic de-squeeze, Analysis Mode
- Camerabediening via USB-C voor Canon, Fujifilm, Nikon, Panasonic, Sony, plus Z CAM via optionele kabel
- Dubbele NP-F-batterijsloten met hot-swap-ondersteuning
Krijg nauwkeurige HDR- en Log-monitoring waar je die nodig hebt—kabelvrij of als traditionele bekabelde monitor—zodat cruciale crew het signaal in realtime over de hele set kan bekijken.
Super-bright, 7-inch HDR screen with a peak brightness of 2200nits
HDMI and 3G-SDI input and output
Camera control over USB-C (same as Shinobi II)*
Touch-to-focus (same as Shinobi II)*
Wi-Fi for low latency (<60ms) receive from Atomos TX
Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG
Built-in 3D LUT box
Supports 8-channel, 24-bit audio input via SDI
Supports on-device calibration (no computer required)
Dual NPF battery slotS
Camera Control & Touch to Focus
Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable.
Advanced Monitoring Tools with AtomOS
Powered by AtomOS 11, the Shinobi 7 RX includes all the tools professionals rely on for exposure, focus, and framing. Use waveform, histogram, vectorscope, EL Zone, ARRI false color, frame guides, anamorphic de-squeeze, custom LUTs to get the perfect shot. The Shinobi’s unique Analysis mode also provides a suite of scopes on a single page, making it easy to compare signals at a glance. The user interface is intuitive, responsive, and fast to navigate.
Connectivity
The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. This enables wireless connectivity, making it an ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
Receive Wireless Video with TX Compatibility
Paired with the Atomos TX wireless transmitter, the Shinobi 7 RX becomes a fully wireless on-set monitor, receiving up to 4Kp30 or 1080p60 HDMI signals with low latency over 5GHz Wi-Fi. It supports wireless video transmission, giving you the freedom to monitor the shot without crowding the camera crew.

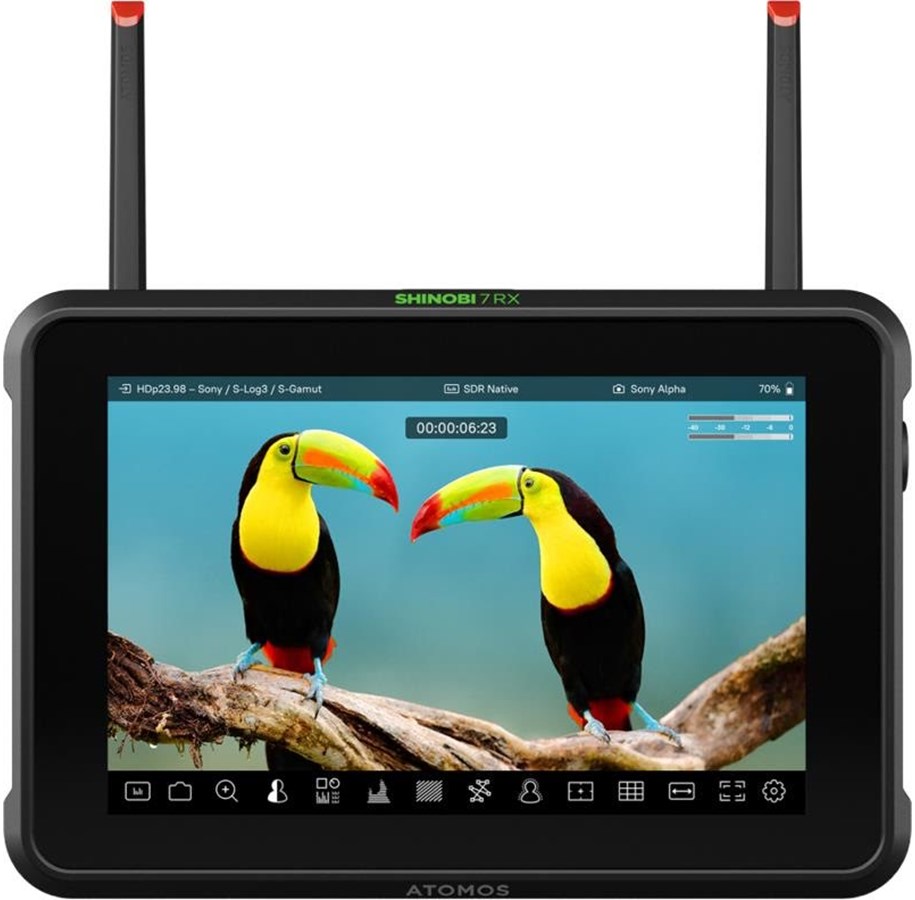

High-Brightness 7″ Touchscreen Display
With a stunning 1920 x 1200 resolution and 2200 nits of brightness, the Shinobi 7 RX is ready for indoor and outdoor viewing. Whether you’re working in direct sunlight or on a controlled set, the ultra-bright display ensures you can see every detail clearly. It’s perfect for HDR and Log workflows, with support for Rec.709, PQ, and HLG monitoring.
Built to Work on Any Set
The Shinobi 7 RX is lightweight yet rugged, with dual Sony L-series battery slots for hot-swappable power and long-lasting performance on set. HDMI input and output ensure you can also use it as a conventional wired monitor. Whether mounted to a rig, stand, or used handheld, it’s a flexible tool for every department on set—from camera to directing and beyond.
What’s in the box?
1x Shinobi 7 RX 7″ camera monitor
2 x Wi-Fi antenna
2 x Wi-Fi antenna caps
5 x antenna tips
USB-C 2.0 cable (1m)
Quick Start Guide
