Productnummer: 3419586

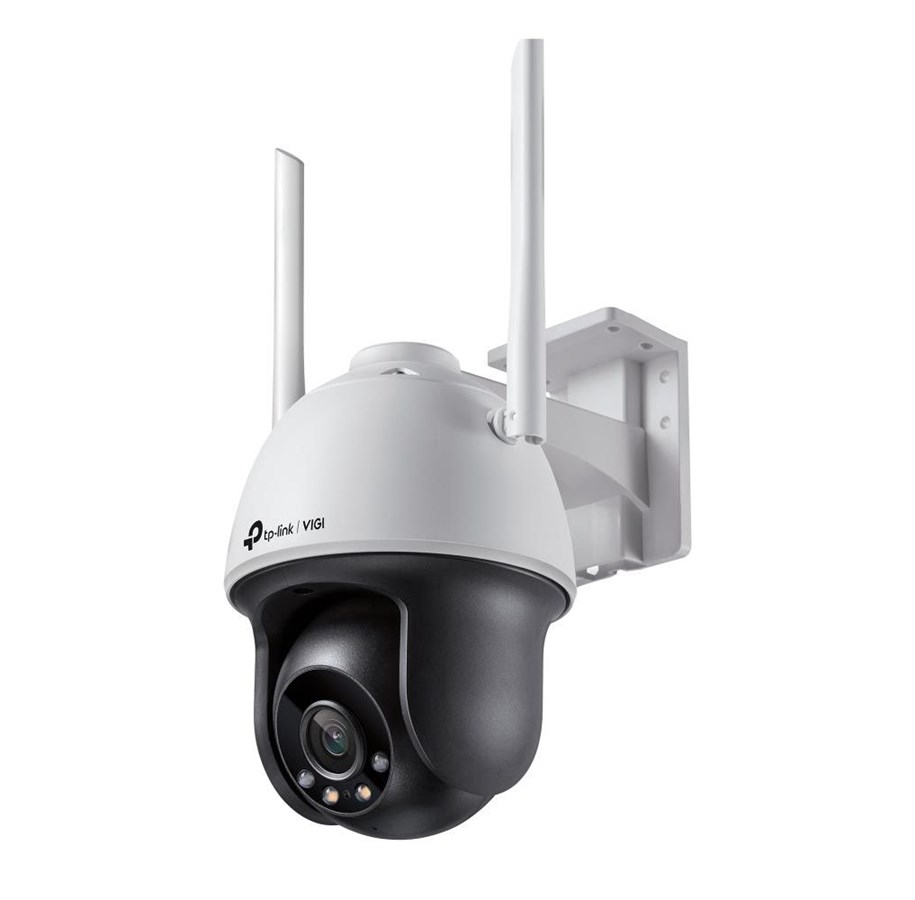

TP-Link VIGI C540-W V1
TP-Link VIGI C540-W V1 Torentje IP-beveiligingscamera Binnen & buiten 2560 x 1440 Pixels Plafond/muur
118,93 €
98,29 € excl. BTW
Goedkoopste privé verzending 6,99 €
Besteld: verwacht op voorraad 23-6-2026
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
Producent
Productnummer
3419586
Model
VIGI C540-W(4MM)
EAN
4897098683798
Naar de website van de producent
Neem contact op met de fabrikant
Soort
IP-beveiligingscamera
Ondersteuning voor plaatsing
Binnen & buiten
Connectiviteitstechnologie
Bedraad en draadloos
Certificering
RCM, BSMI, VCCI, NCC, JRF, KC
Montagewijze
Plafond/muur
Kleur van het product
Zwart, Wit
Vormfactor
Turret
Materiaal behuizing
Kunststof
Internationale veiligheidscode (IP)
IP66
Controle camerapanning
Ja
Kantelfunctie camera
Ja
Kijkhoek lens, horizontaal
79°
Kijkhoek lens, verticaal
43°
Kijkhoek lens, diagonaal
93°
Bereik kantelhoek
0 - 120°
Draai-snelheid
44 °/sec
Pan bereik
0 - 350°
Pan snelheid
44 °/sec
Type beeldsensor
CMOS
Omvang optische sensor
25,4 / 3 mm (1 / 3")
Progressive scan
Ja
Aantal lenzen
1
Zoomcapaciteit
Ja
Detectieafstand
80 m
Observatieafstand
33 m
Herkenningsafstand
16 m
Lens diameter
4 mm
Identificatieafstand
8 m
Nachtvisie
Ja
Nachtkijker afstand
30 m
LED-type
IR
Infrarood wavelength
850 nm
Maximum resolutie
2560 x 1440 Pixels
Totaal aantal megapixels
4 MP
Videocompressieformaten
H.264, H.264+, H.265, H.265+
Ondersteunde grafische resoluties
320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Maximaal 30 frames per seconde
30 fps
Videostreaming
Ja
Ruisonderdrukking
Ja
Ruisonderdrukkingstechnologie
3D-ruisonderdrukking
Aanpassing van de afbeeldingskwaliteit
Helderheid, Contrast, Spiegel, Verzadiging, Scherpte
Privézone maskeren
Ja
Bitrate
256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)
Ja
Ingebouwde luidsprekers
Ja
Ingebouwde microfoon
Ja
Ethernet LAN
Ja
Wifi
Ja
Bluetooth
Nee
Ethernet interface type
Fast Ethernet
Ondersteunde netwerkprotocollen
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi-standaarden
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Live view
Ja
Aantal gelijktijdige liveview-kanalen
3 kanalen
Ingebouwde HDD
Nee
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash)
Maximale capaciteit van de geheugenkaart
256 GB
Aantal Ethernet LAN (RJ-45)-poorten
1
Wachtwoordbeveiliging
Ja
IP-adresfilter
Ja
Ondersteunde beveiligingsalgoritmen
WPA, WPA2-PSK
HTTPS-encryptie
Ja
Systeemfuncties intelligente videobewaking (IVS)
Menselijke detectie
Spiegel
Ja
Samenvattingsverificatie
Ja
Reset button
Ja
Gedragsanalyse
Inbraakdetectie, Detectie van lijnoverschrijding
Type stroombron
DC
Stroomuitvoer (volt)
12
Bedrijfstemperatuur (T-T)
-30 - 60 °C
Breedte
120 mm
Diepte
172 mm
Hoogte
198 mm
Basisgebeurtenis
Motion Detection, Camera Tampering Detection, Exception
Breedte verpakking
163 mm
Diepte verpakking
243 mm
Hoogte verpakking
243 mm
Gewicht verpakking
1,21 kg
Certificaten van naleving
CE, RoHS
Aantal cameras
1
Montage gereedschap
Ja
Prestatie
Soort
IP-beveiligingscamera
Ondersteuning voor plaatsing
Binnen & buiten
Connectiviteitstechnologie
Bedraad en draadloos
Certificering
RCM, BSMI, VCCI, NCC, JRF, KC
Design
Montagewijze
Plafond/muur
Kleur van het product
Zwart, Wit
Vormfactor
Turret
Materiaal behuizing
Kunststof
Internationale veiligheidscode (IP)
IP66
Camera
Controle camerapanning
Ja
Kantelfunctie camera
Ja
Kijkhoek lens, horizontaal
79°
Kijkhoek lens, verticaal
43°
Kijkhoek lens, diagonaal
93°
Bereik kantelhoek
0 - 120°
Draai-snelheid
44 °/sec
Pan bereik
0 - 350°
Pan snelheid
44 °/sec
Beeldsensor
Type beeldsensor
CMOS
Omvang optische sensor
25,4 / 3 mm (1 / 3")
Progressive scan
Ja
Lenssysteem
Aantal lenzen
1
Zoomcapaciteit
Ja
Detectieafstand
80 m
Observatieafstand
33 m
Herkenningsafstand
16 m
Lens diameter
4 mm
Identificatieafstand
8 m
Nachtkijker
Nachtvisie
Ja
Nachtkijker afstand
30 m
LED-type
IR
Infrarood wavelength
850 nm
Video
Maximum resolutie
2560 x 1440 Pixels
Totaal aantal megapixels
4 MP
Videocompressieformaten
H.264, H.264+, H.265, H.265+
Ondersteunde grafische resoluties
320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Maximaal 30 frames per seconde
30 fps
Videostreaming
Ja
Ruisonderdrukking
Ja
Ruisonderdrukkingstechnologie
3D-ruisonderdrukking
Aanpassing van de afbeeldingskwaliteit
Helderheid, Contrast, Spiegel, Verzadiging, Scherpte
Privézone maskeren
Ja
Bitrate
256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)
Ja
Audio
Ingebouwde luidsprekers
Ja
Ingebouwde microfoon
Ja
Netwerk
Ethernet LAN
Ja
Wifi
Ja
Bluetooth
Nee
Ethernet interface type
Fast Ethernet
Ondersteunde netwerkprotocollen
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi-standaarden
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Live view
Ja
Aantal gelijktijdige liveview-kanalen
3 kanalen
Opslagmedia
Ingebouwde HDD
Nee
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash)
Maximale capaciteit van de geheugenkaart
256 GB
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
1
Beveiliging
Wachtwoordbeveiliging
Ja
IP-adresfilter
Ja
Ondersteunde beveiligingsalgoritmen
WPA, WPA2-PSK
HTTPS-encryptie
Ja
Systeemfuncties intelligente videobewaking (IVS)
Menselijke detectie
Spiegel
Ja
Samenvattingsverificatie
Ja
Beheerfuncties
Reset button
Ja
Gedragsanalyse
Inbraakdetectie, Detectie van lijnoverschrijding
Energie
Type stroombron
DC
Stroomuitvoer (volt)
12
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-30 - 60 °C
Gewicht en omvang
Breedte
120 mm
Diepte
172 mm
Hoogte
198 mm
Kenmerken
Basisgebeurtenis
Motion Detection, Camera Tampering Detection, Exception
Verpakking
Breedte verpakking
163 mm
Diepte verpakking
243 mm
Hoogte verpakking
243 mm
Gewicht verpakking
1,21 kg
Duurzaamheid
Certificaten van naleving
CE, RoHS
Inhoud van de verpakking
Aantal cameras
1
Montage gereedschap
Ja
