Productnummer: 3235302

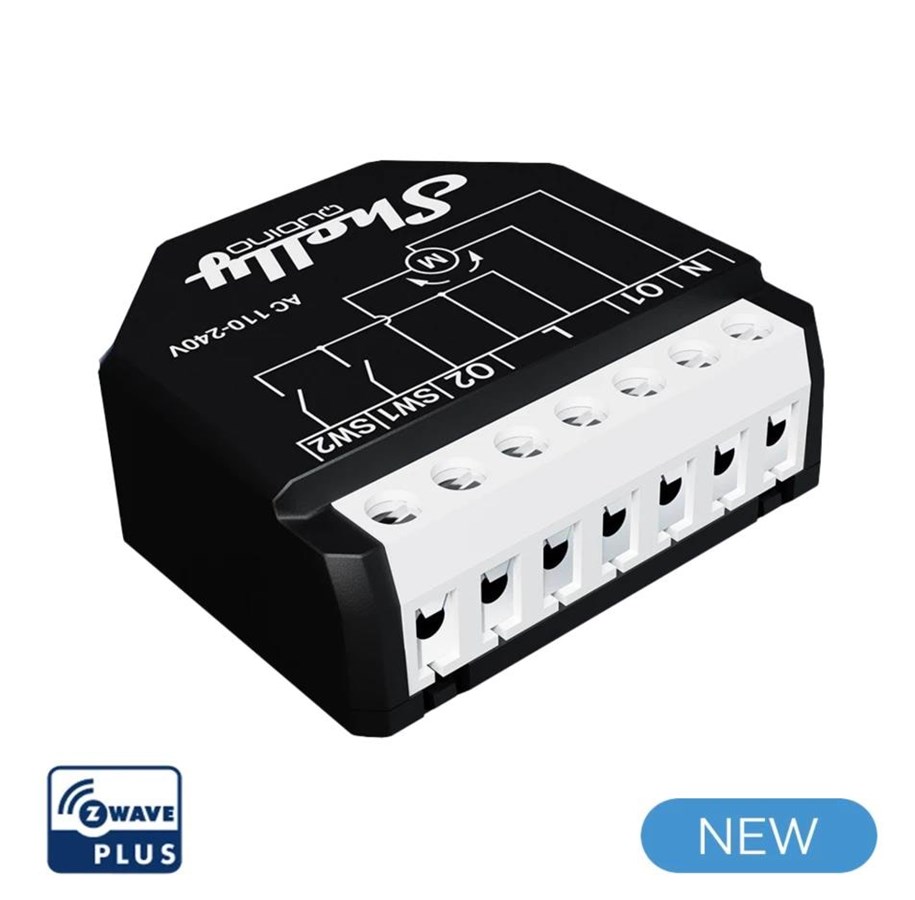

Shelly Qubino Wave Shutter

Shelly Qubino Wave Shutter enables remote control of motorized shades, rollers, blinds, windows, awnings, or any device powered by a bi-directional AC motor.

Op voorraad
15,20 € Het actieproduct is uitverkocht
29,60 €
24,46 € excl. BTW
Goedkoopste privé verzending 6,99 €
3 stks Op voorraad - 2-3 werkdagen levertijd

Shelly Qubino Wave Shutter enables remote control of motorized shades, rollers, blinds, windows, awnings, or any device powered by a bi-directional AC motor. It supports control over the tilt position of the venetian blind slats. You can control it either via your smartphone/tablet or according to schedules or scenes, while retaining the option for manual operation with a wall switch. Precise positioning is supported for motors equipped with mechanical or electronic end limit switches.Features:•Control over the tilt position of the venetian blind slats.•Supports push-buttons/momentary switches and toggle switches.•Measures power consumption of the connected devices on each channel.•Extended wireless range – up to 40 m indoors.•Small size ensures the simplest installation behind every wall switch or wall socket.•SmartStart for the automatic set-up.•OTA Firmware update for over-the-air updates.•Security Vault™ ensures the highest level of security with features, such as secure boot, secure key management, secure debug, and more.•Security 2 Authenticated.•Extremely low energy consumption: less than 0.3 W.•Works with Z-Wave certified hubs and over 4000 Z-Wave devices.

Producent
Productnummer
3235302
Model
Shelly_W_Shutter
EAN
3800235269008
Neem contact op met de fabrikant
Type product
Slim relais
Kleur van het product
Zwart
Materiaal behuizing
Kunststof
Maximum indoorbereik
40 m
Zendvermogen
25 dBmW
Zonsopkomst/zonsondergang tijd
Ja
Op afstand bedienbaar
Ja
Stroomverbruik (typisch)
0,3 W
Stroom (max.)
10 A
AC-ingangsspanning
110 - 230 V
Afmetingen (B x D x H)
37 x 42 x 16 mm
Gewicht
29 g
Bedrijfstemperatuur (T-T)
-20 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
30 - 70 procent

Kenmerken

Type product
Slim relais
Kleur van het product
Zwart
Materiaal behuizing
Kunststof
Maximum indoorbereik
40 m
Zendvermogen
25 dBmW
Zonsopkomst/zonsondergang tijd
Ja
Op afstand bedienbaar
Ja

Energie

Stroomverbruik (typisch)
0,3 W
Stroom (max.)
10 A
AC-ingangsspanning
110 - 230 V

Gewicht en omvang

Afmetingen (B x D x H)
37 x 42 x 16 mm
Gewicht
29 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
30 - 70 procent

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
