Productnummer: 3229422

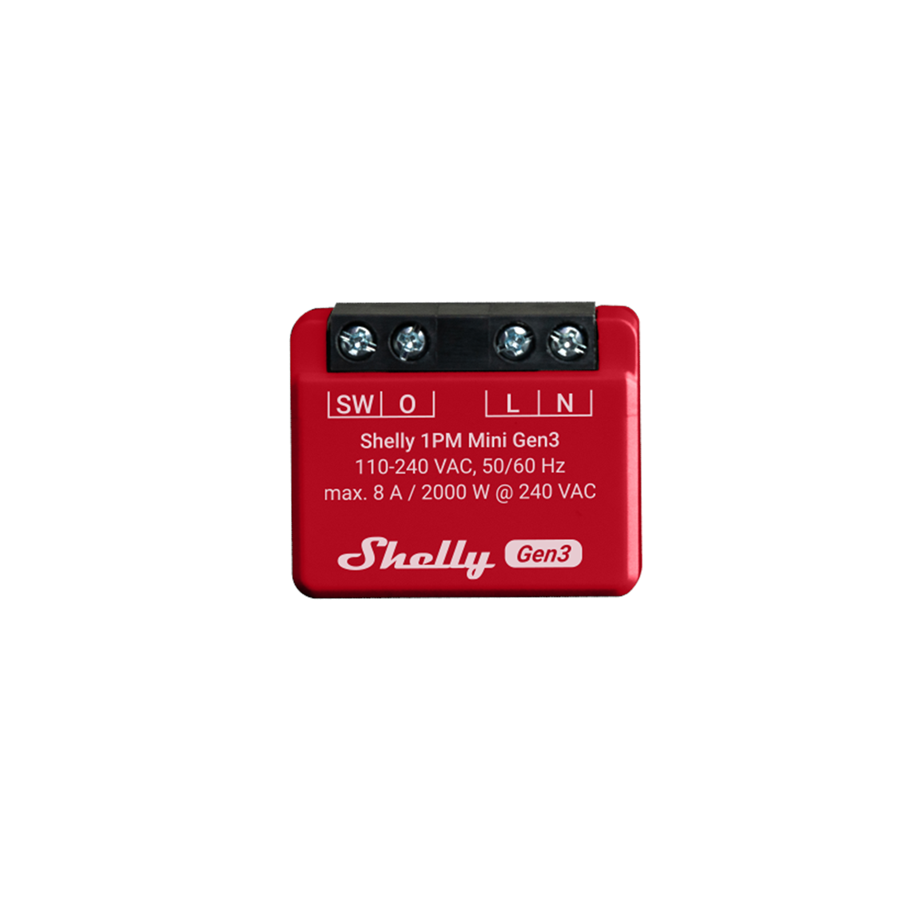

Shelly 1PM Mini (GEN 3) 230VAC

Shelly 1PM Mini is a small form factor smart switch with power measurement.

Op voorraad
15,97 € 13,20 € excl. BTW
Goedkoopste privé verzending 6,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

Shelly 1PM Mini Gen3 is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly 1PM Mini can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly 1PM Mini has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications
•    Residential
•    MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
•    Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
•    Government/municipal
•    University/college

Integrations
•    Google
•    Samsung SmartThings
•    Alexa
•    Athom Homey
•    Home Assistant
.. And many more

Smart Home

Producent
Productnummer
3229422
Model
Shelly_Plus_1PM_Mini_G3
EAN
3800235261590
Naar de website van de producent
Neem contact op met de fabrikant
Soort
Slimme schakelaar
Aantal polen
1P
Ingebouwd display
Nee
Connectiviteitstechnologie
Draadloos
Materiaal behuizing
Kunststof
Type finish
Mat
Zendvermogen
20 dBmW
Radiofrequentie
2400 MHz
Maximum outdoorbereik
30 m
Kleur van het product
Rood
Aantal modules
1
Geschikt voor gebruik binnen
Ja
Bluetooth
Ja
Bereik van Bluetooth
10 m
Bluetooth-versie
4.2
Wifi-frequentie
2,4 GHz
Wi-Fi-standaarden
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Op afstand bedienbaar
Ja
Wifi
Ja
Smartphone ondersteuning op afstand
Ja
Werkt met Amazon Alexa
Ja
Werkt met de Google Assistent
Ja
AC-ingangsspanning
110 - 240 V
Stroomverbruik (typisch)
1,2 W
Maximale schakelspanning (AC)
240 V
Maximale schakelstroom (AC)
8 A
Maximaal laadvermogen (AC)
2000 W
Breedte
34 mm
Diepte
16 mm
Hoogte
29 mm
Gewicht
18 g
Bedrijfstemperatuur (T-T)
-20 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
30 - 70 procent
Type verpakking
Doos
Aantal per verpakking
1 stuk(s)

Kenmerken

Soort
Slimme schakelaar
Aantal polen
1P
Ingebouwd display
Nee
Connectiviteitstechnologie
Draadloos
Materiaal behuizing
Kunststof
Type finish
Mat
Zendvermogen
20 dBmW
Radiofrequentie
2400 MHz
Maximum outdoorbereik
30 m
Kleur van het product
Rood
Aantal modules
1
Geschikt voor gebruik binnen
Ja
Bluetooth
Ja
Bereik van Bluetooth
10 m
Bluetooth-versie
4.2
Wifi-frequentie
2,4 GHz
Wi-Fi-standaarden
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Op afstand bedienbaar
Ja
Wifi
Ja
Smartphone ondersteuning op afstand
Ja
Werkt met Amazon Alexa
Ja
Werkt met de Google Assistent
Ja

Energie

AC-ingangsspanning
110 - 240 V
Stroomverbruik (typisch)
1,2 W
Maximale schakelspanning (AC)
240 V
Maximale schakelstroom (AC)
8 A
Maximaal laadvermogen (AC)
2000 W

Gewicht en omvang

Breedte
34 mm
Diepte
16 mm
Hoogte
29 mm
Gewicht
18 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
30 - 70 procent

Verpakking

Type verpakking
Doos
Aantal per verpakking
1 stuk(s)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
